Step-By-Step Procedure To Install Ubuntu Linux On VMWare Workstation

Step By Step Procedure To Install Ubuntu Linux On Vmware Workstation

As more as the technology develops it gives more flexibility, usability, and portability. With the introduction of cross-platform technology like virtualization and remote computing, any program can be run on any platform irrespective of compatibility. Hardware virtualizations allows to create a fully working virtual machine on any platform. VMWare Workstation is one such hardware visualization platform available in the market on which any virtual machines can be created. In this post, we will show you how to install Ubuntu Linux on VMWare Workstation to create a full-fledge working Ubuntu Linux virtual machine.

What Is Ubuntu?

Ubuntu is one of the popular Linux distributions developed on the Debian Linux platform. Ubuntu is a full operating system available in multiple editions: Desktop edition, Servers edition, IoT, and Cloud. These editions can run on either a computer or virtual machines.

What Is VMWare Workstation?

VMWare Workstation is an application developed by VMWare to create virtual machines, containers, and Kubernetes clusters on any desktop or server system. VMWare released VMWare Workstation in two products: VMWare Workstation Pro and VMWare Workstation Player. VMWare Workstation Player is released on a free license with limited features, whereas VMWare Workstation Pro is an enterprise paid version that has loaded with a lot of features. Full documentation is published on the VMWare portal for free. Refer the documentation from here.

Prerequisites To Install Ubuntu On VMWare Workstation:

To install Ubuntu Linux on VMWare Workstation you just need a physical machine, VMWare Workstation Pro or Player, and Ubuntu Linux ISO image.

  1. A host system with minimum:

    1. 8 GB of memory

    2. A quad core CPU

    3. 500 GB of Hard Drive

  2. VMWare Workstation Pro or Player application:0

  3. Ubuntu Operating System to install on VMWare Workstation.

How To Install Ubuntu Linux On VMWare Workstation?

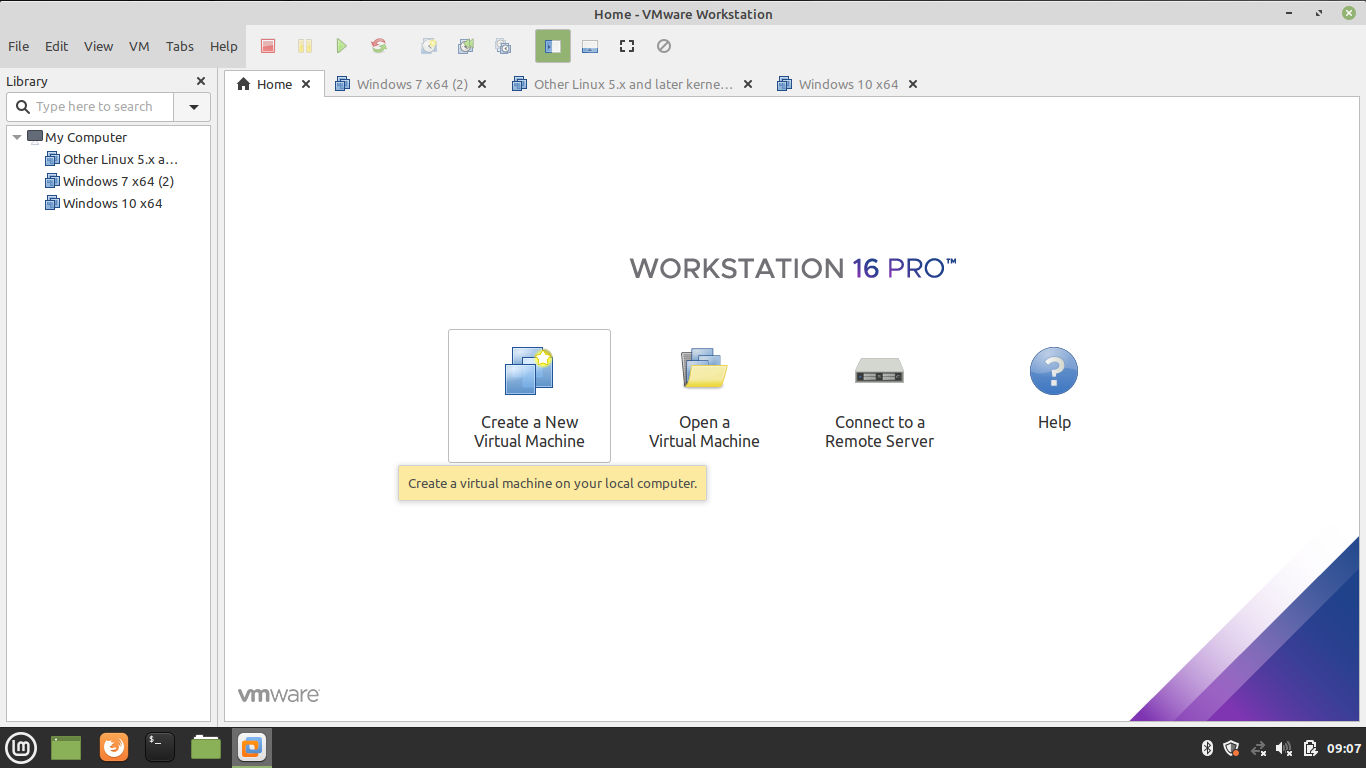

Step 1. Fier up VMWare Workstation

Download the VMWare Workstation application for your host operating system and install it on your machine. The installation procedure is pretty simple and straight. Read the documentation for more details. Open the app after installation. Create a new Virtual Machine.

Step 2. Select Custom Configuration Wizard

You can choose either Typical or Custom Wizard. We recommend selecting Custom if you want to install with all the configurations. If you are okay with default configurations then go ahead with Typical configurations.

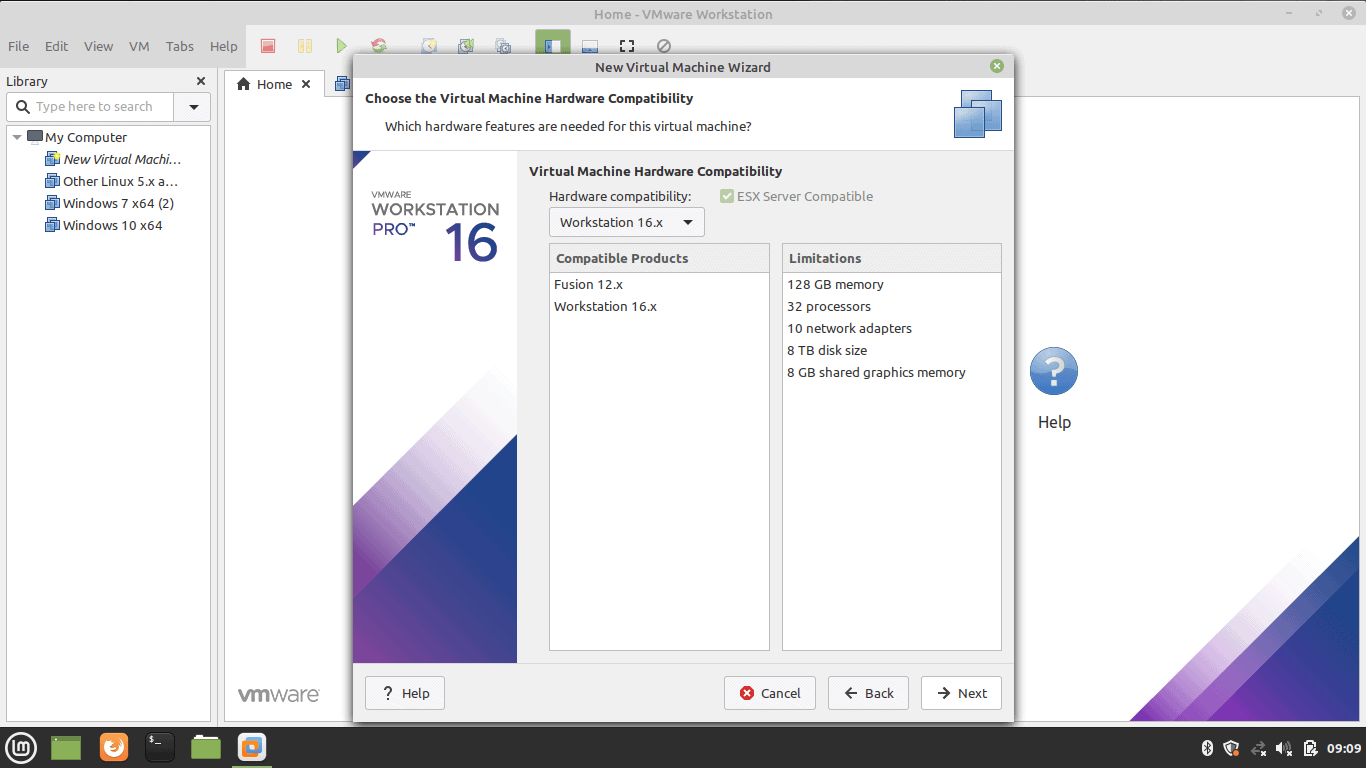

Step 3. Select Virtual Machine Hardware Compatibility

Go with the default option if you don’t have the choice.

Step 4. Select the Operating System Media

Select ‘I will install the operating system later’ for an interactive installation.

Step 5. Select Guest Operating System

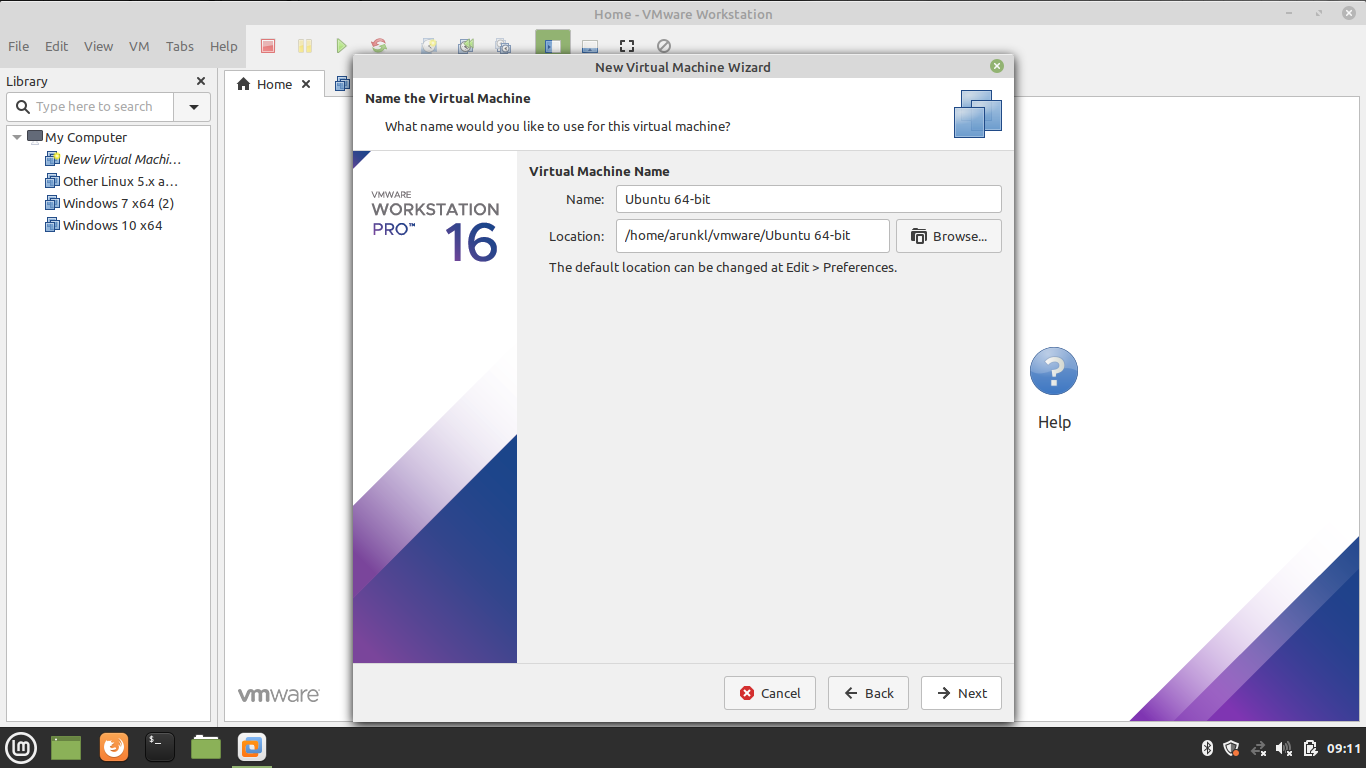

Step 6. Name the Virtual Machine Name and location

Type a name and give the location details.

Step 7. Allocate the Processors

Assign the processors, Calculate the processor required to run the host machine. Assign the leftover resources to the virtual machine.

Step 8. Allocate the Memory for the Virtual Machine

Memory allocation calculation is the same as the processor allocation. Leave sufficient memory for the host system and allocate the remaining memory for the virtual machine.

Step 9. Choose the Network Configuration

Select any one of the network configurations as per your requirement.

Step 10. Select the I/O Controller Type

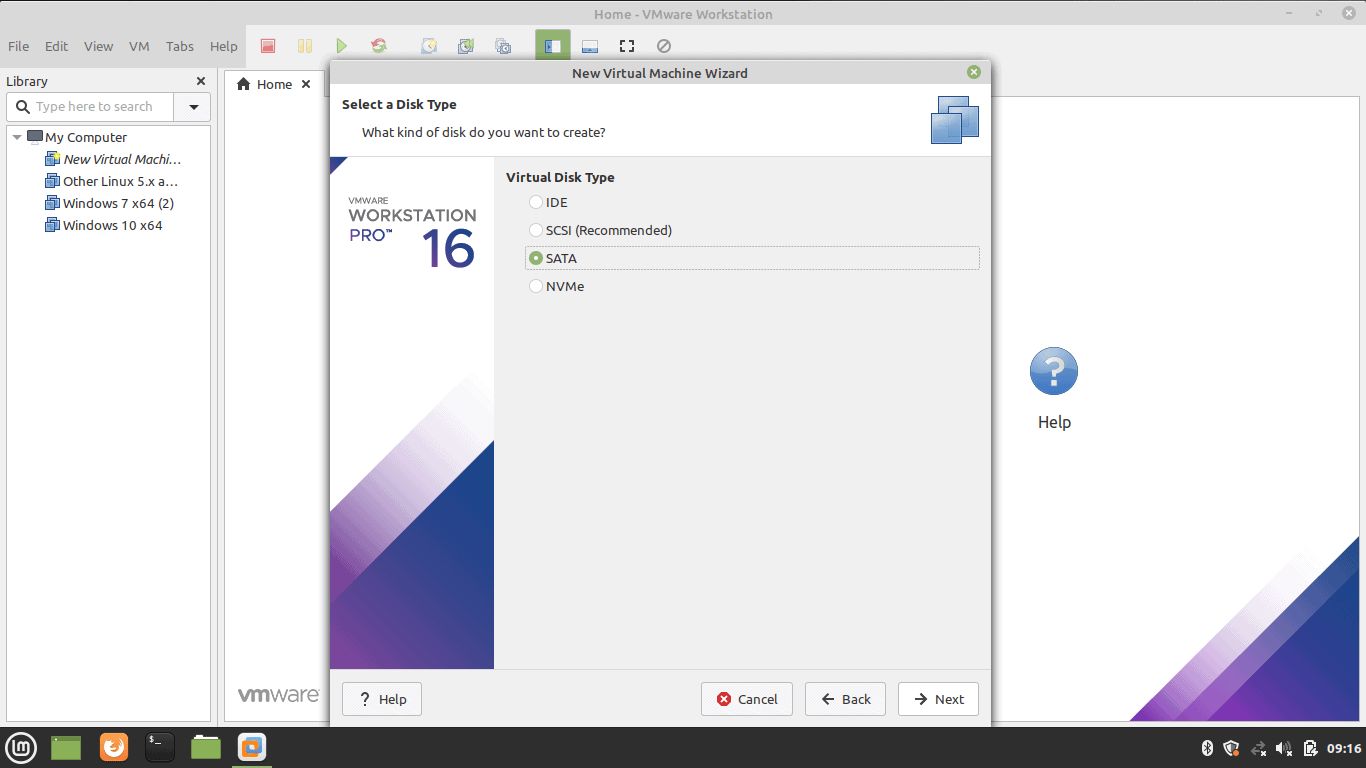

Step 11. Select Disk Type

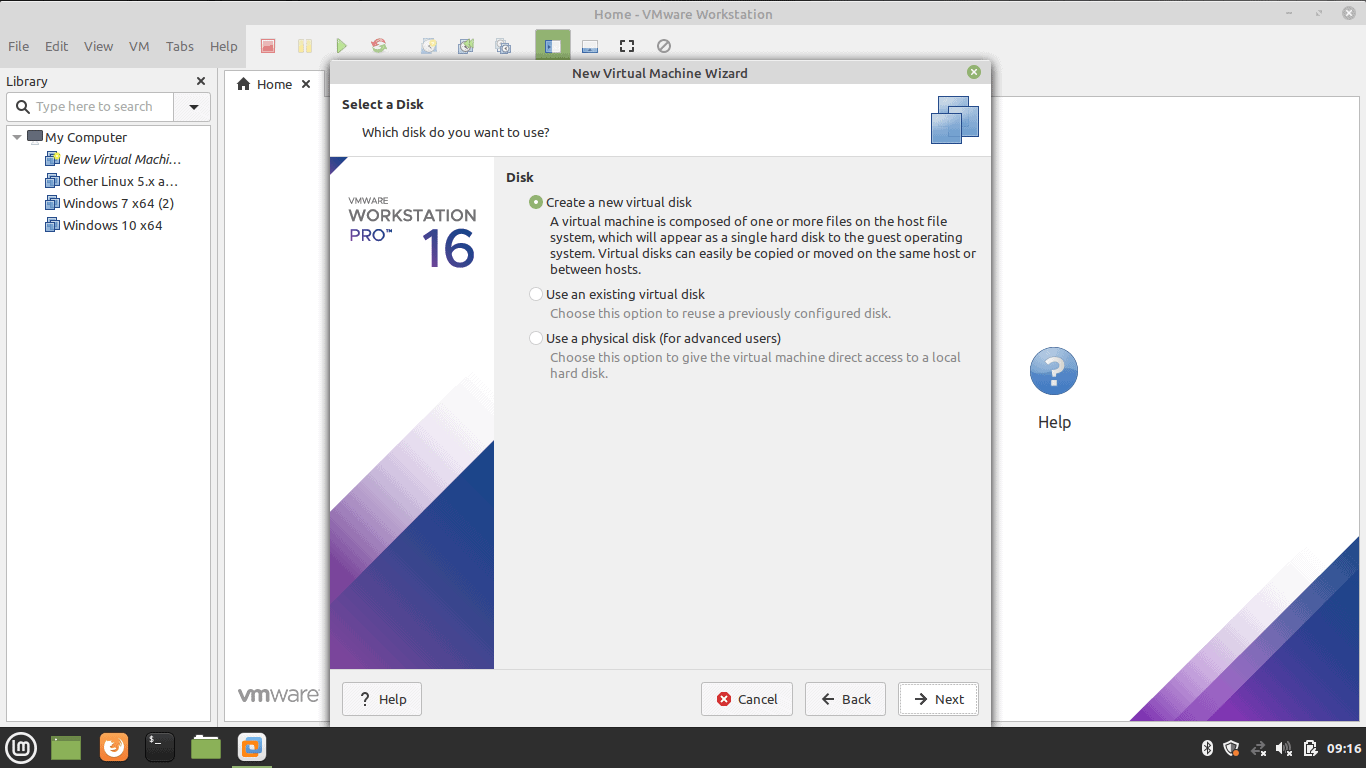

Step 12. Select Virtual Disk

Select the Virtual Disk if you have or create one.

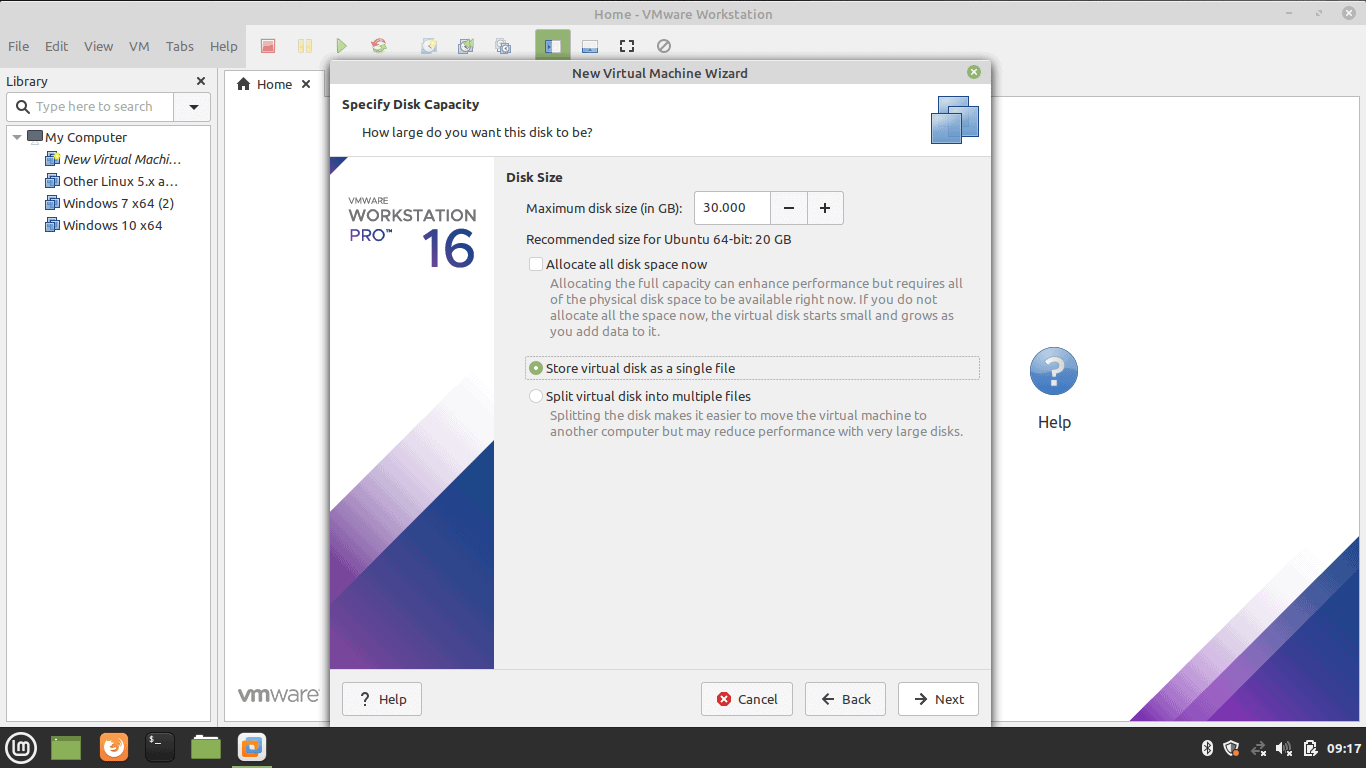

Step 13. Select Disk Capacity

Select the disk size. Selecting a single disk will increase the performance. However, selecting a split disk will help in the disk transfer scenario.

Step 14. Specify Virtual Disk File
Step 15. Create Virtual Machine

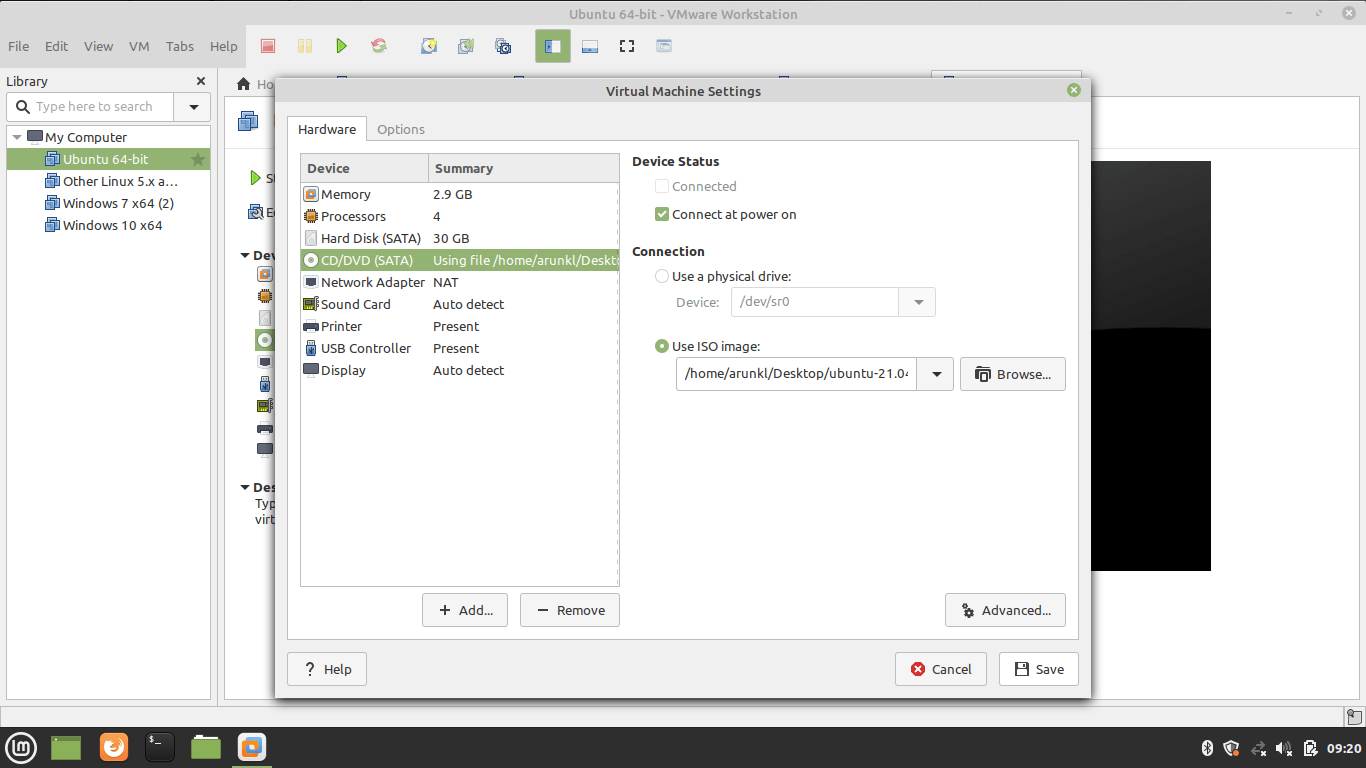

Step 16. Supply Ubuntu ISO Image to Virtual Machine

Download the Ubuntu image. Edit the CD/DVD settings and import the downloaded Ubuntu image.

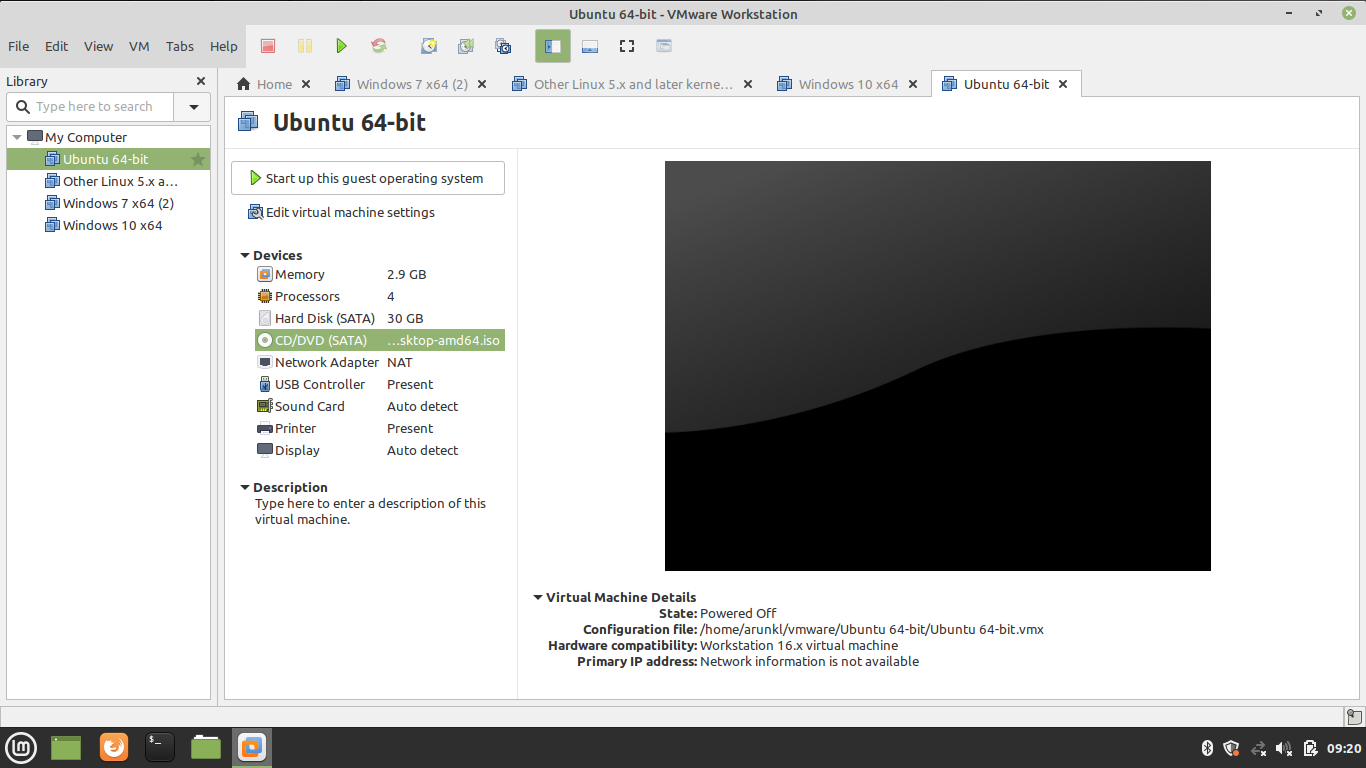

Step 17. Install Ubuntu Linux on VMWare Workstation

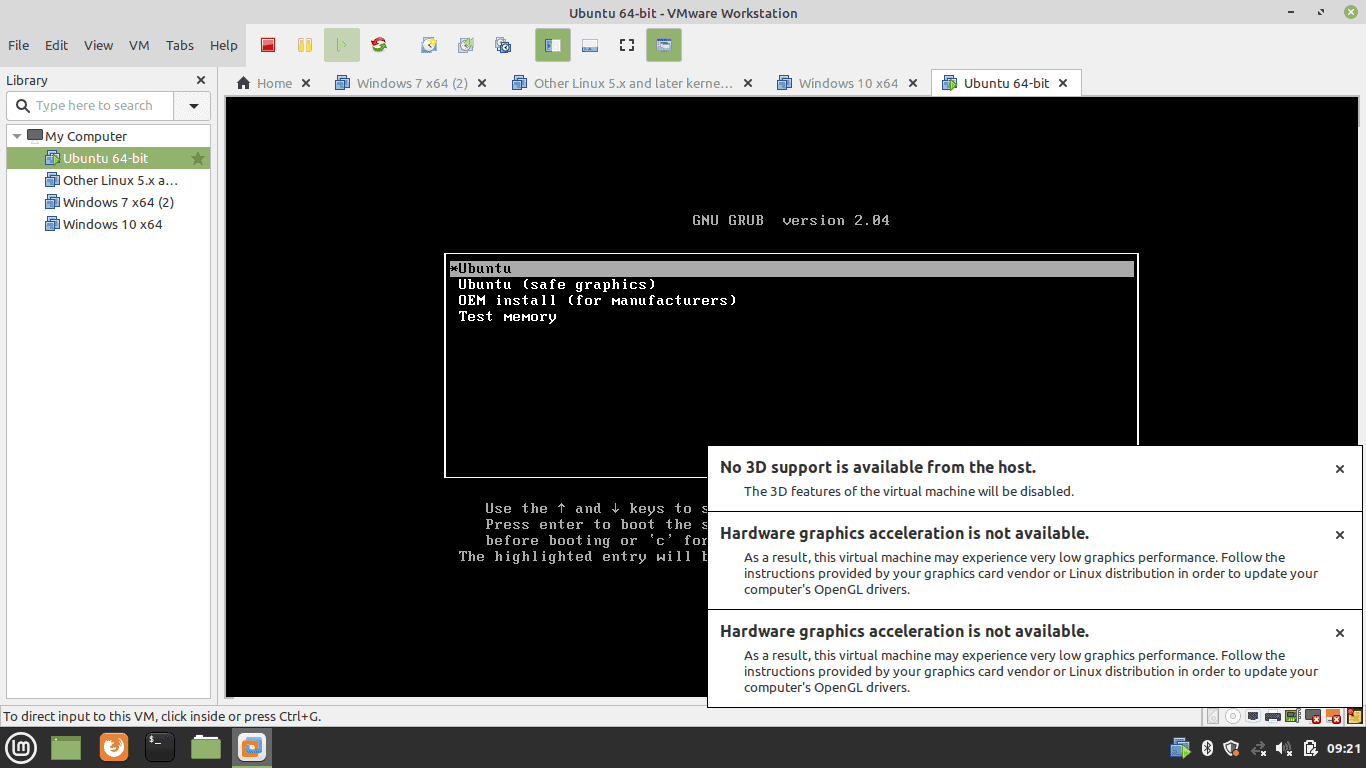

Step 18. Power On the Virtual Machine

Press the Play button to power on the Virtual Machine.

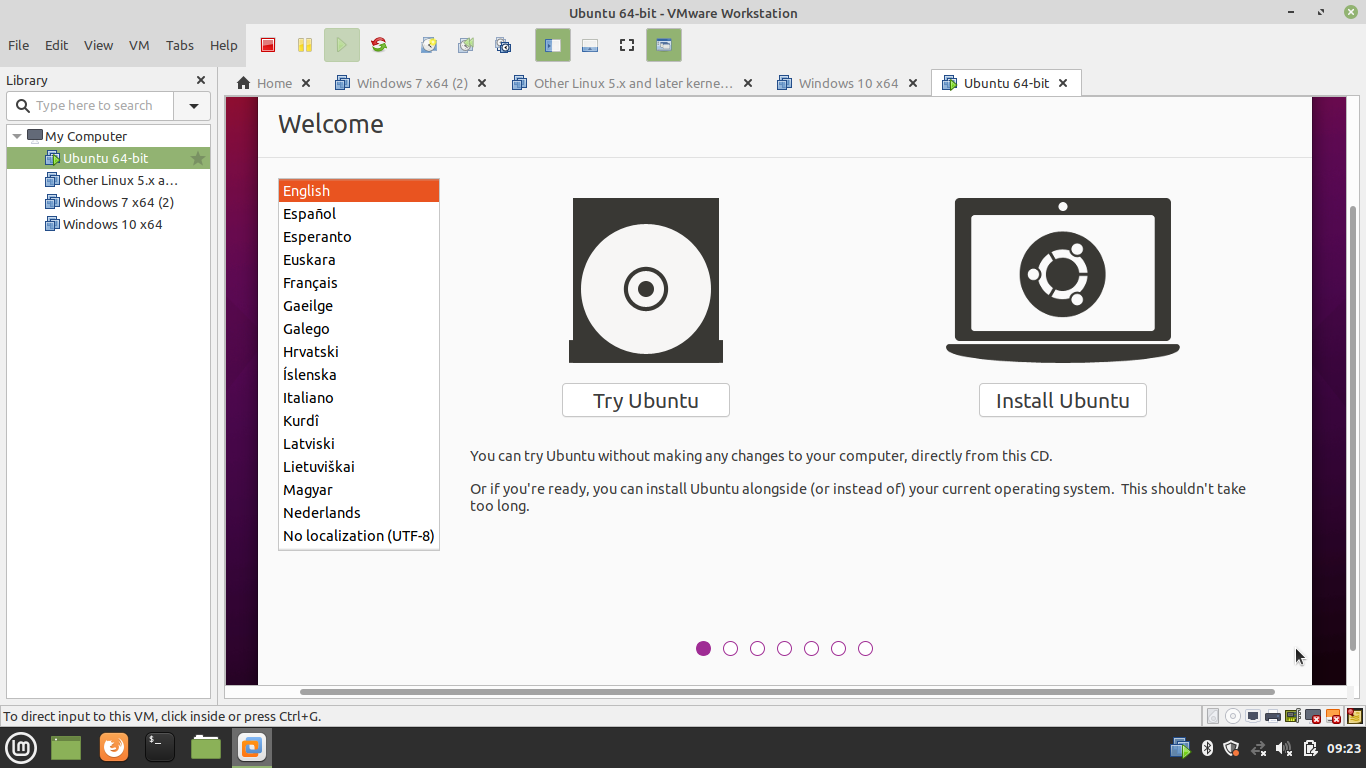

Step 19. Welcome to Ubuntu Virtual Machine

After powering on the Virtual machine, you will be treated with a welcome screen on which you will see two options: Try Ubuntu and Install Ubuntu. Select Try Ubuntu if you want to run Ubuntu in live mode. Select Install to continue the installation process.

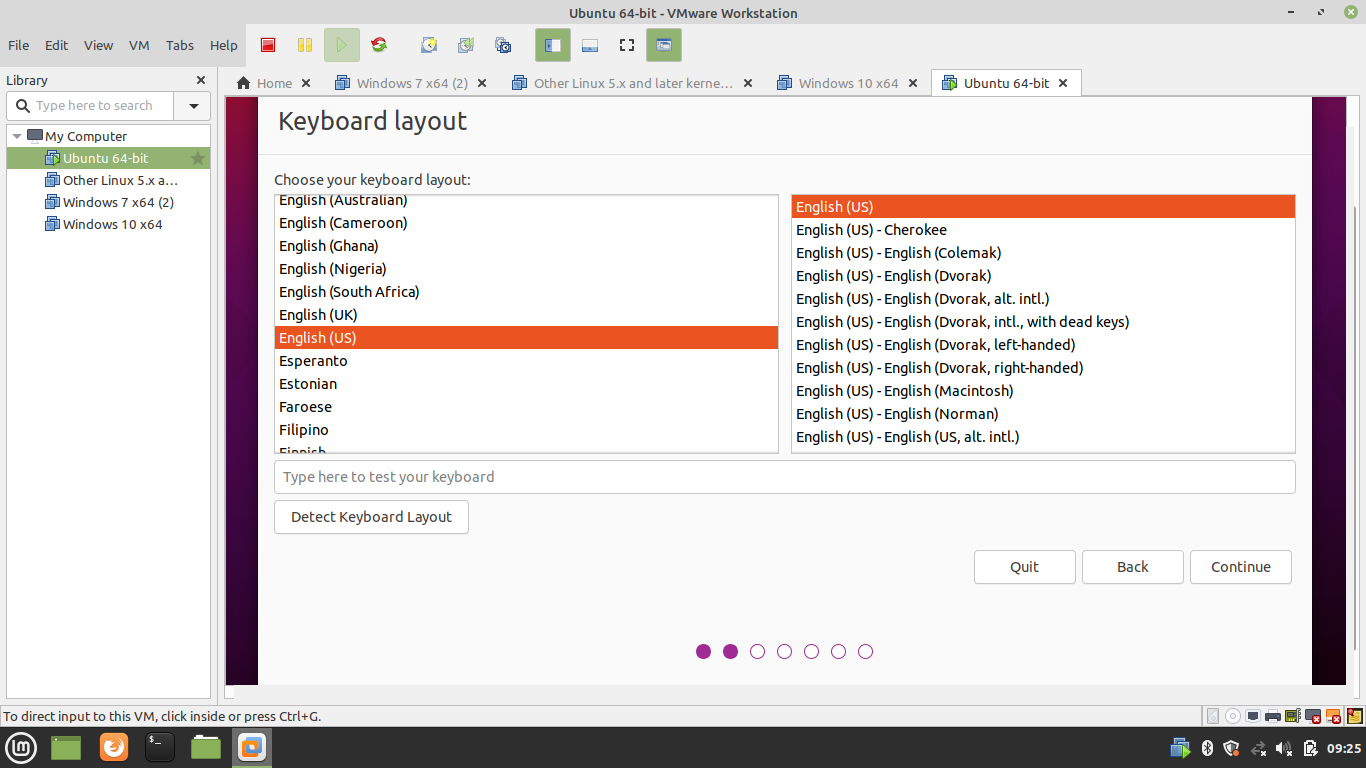

Step 20. Select Keyboard Layout

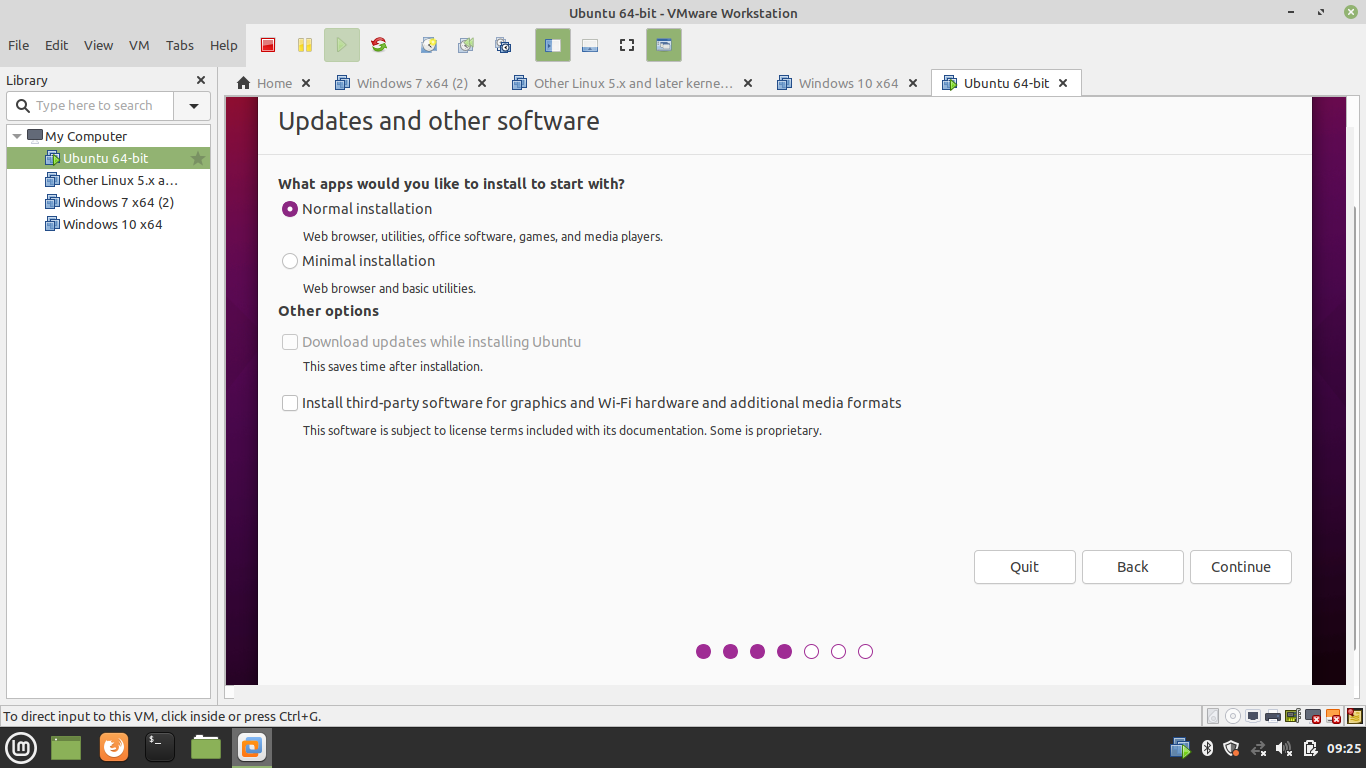

Step 21. Software Update and Package Selection in Virtual Machine

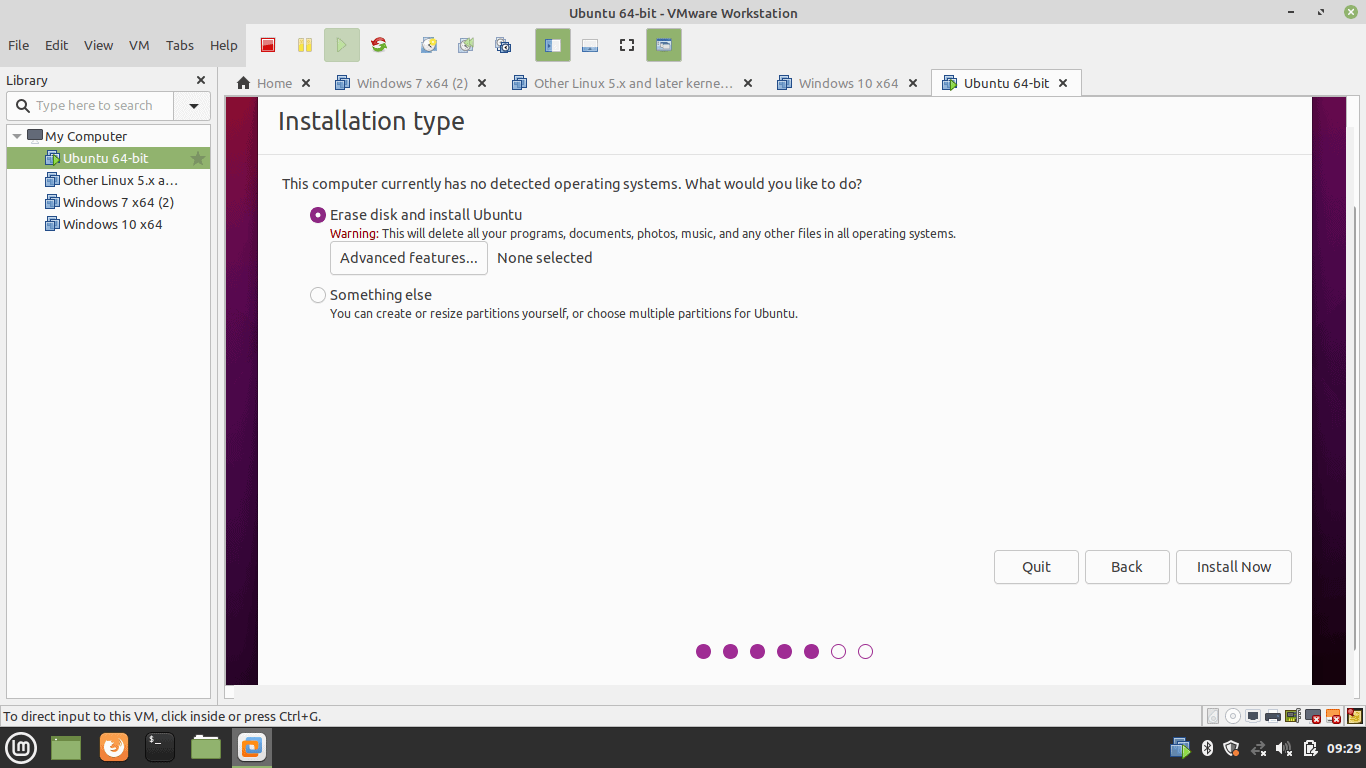

Step 22. Partition the Disk

Select Erase the Disk for auto partition. Or Select the Advance option to create the custom partition.

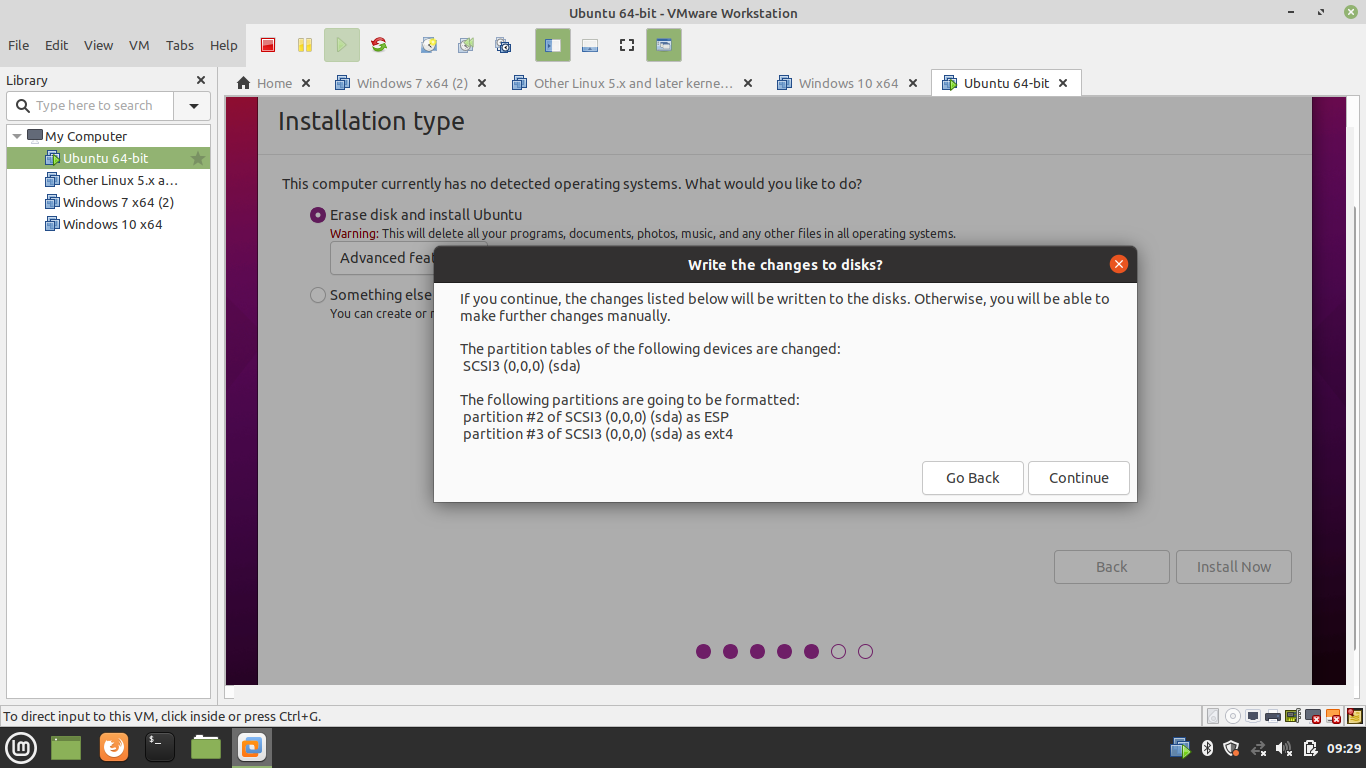

Step 23. Write Changes to Disk

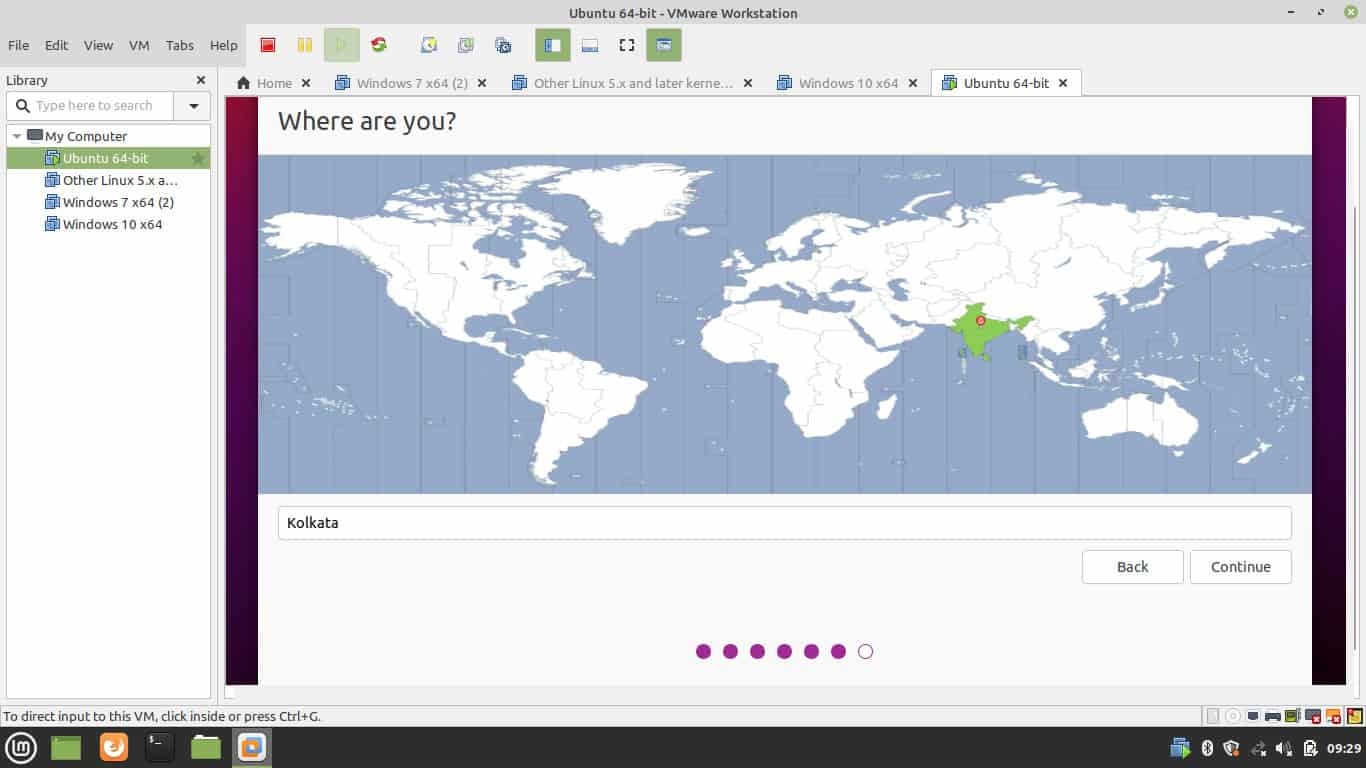

Step 24. Select Time Zone

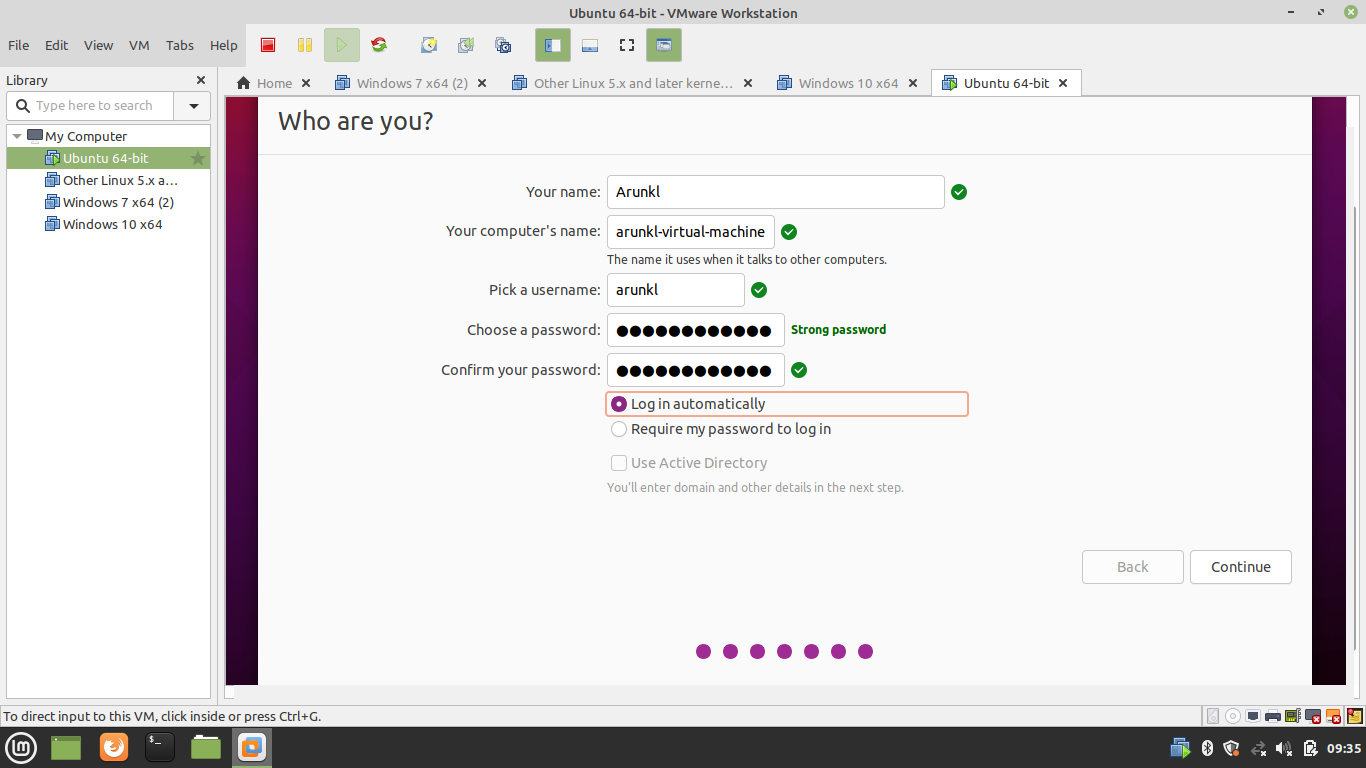

Step 25. Create an Admin Account

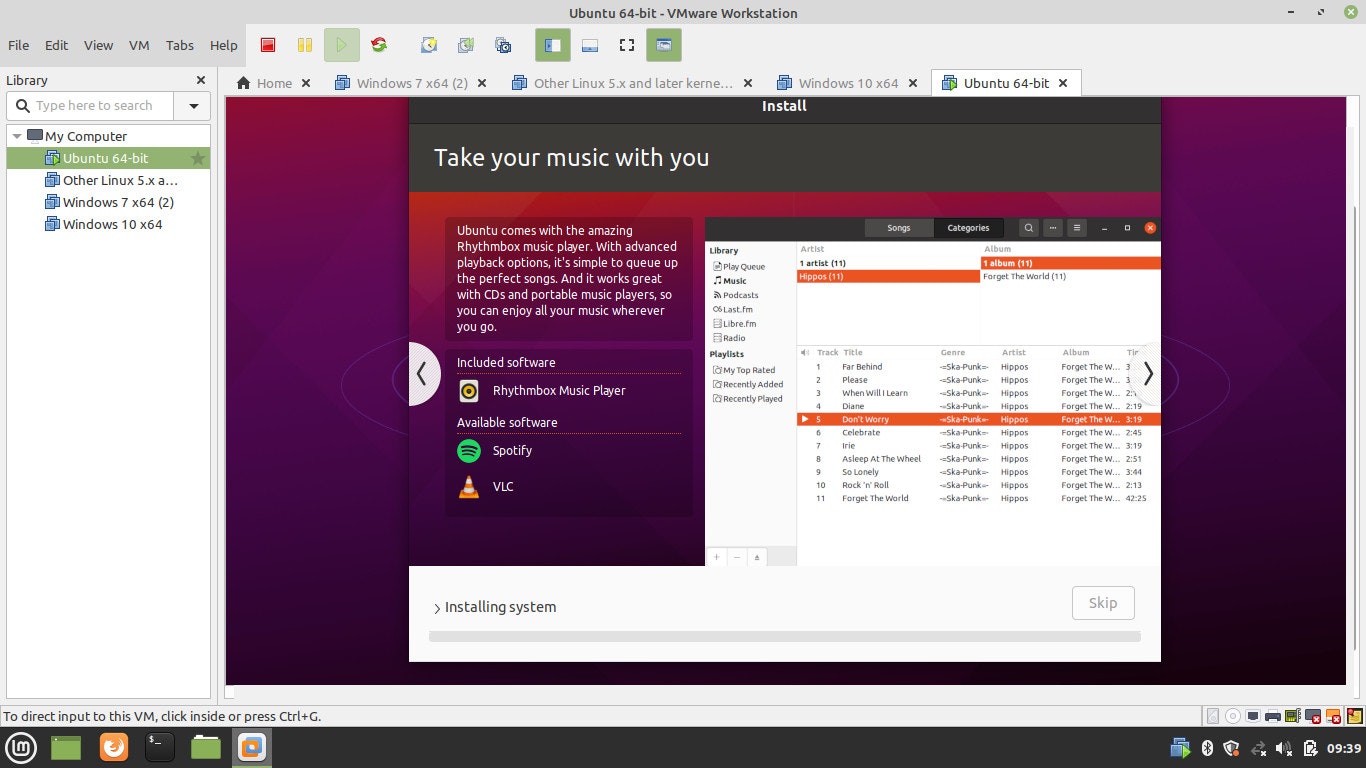

Step 26. Installation of Ubuntu in Progress

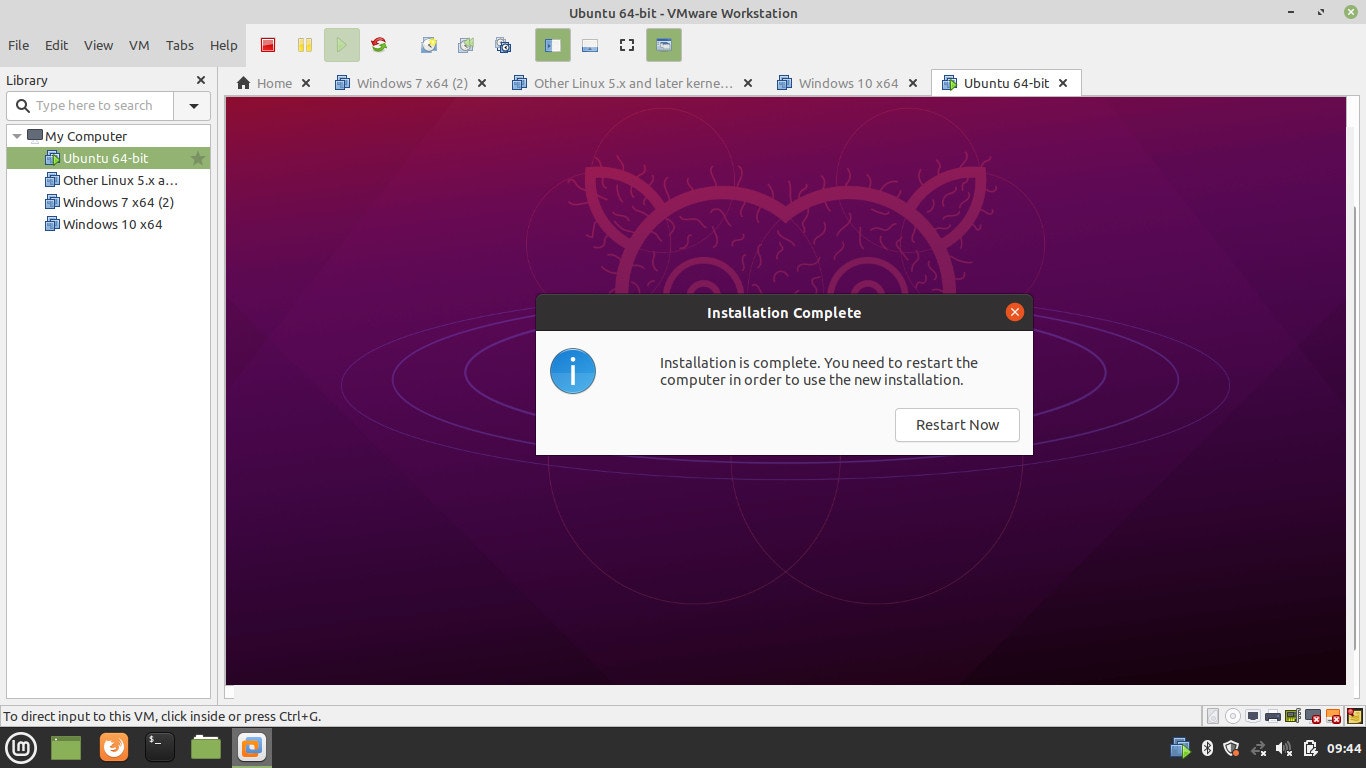

Step 27. Reboot Virtual Machine

Reboot the machine after installation.

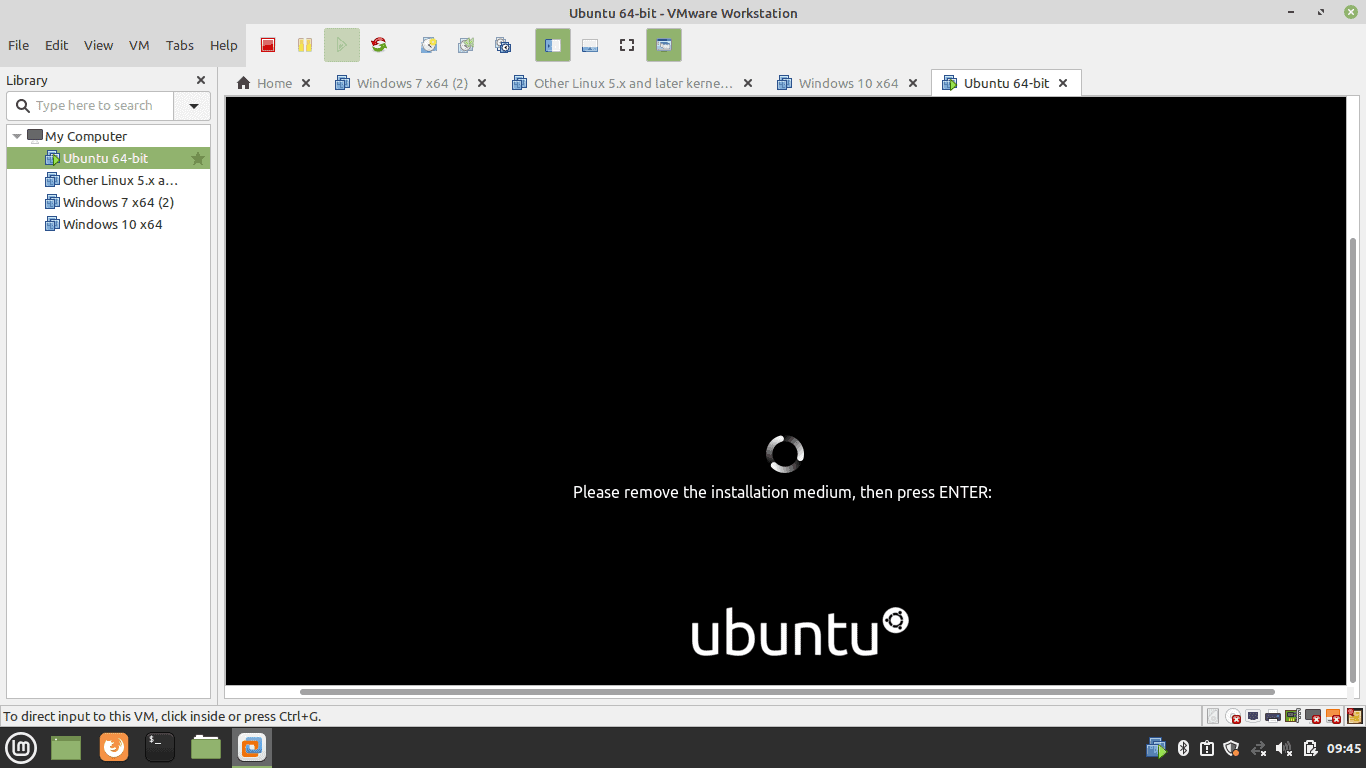

Step 28. Remove the installation media

Remove the installation media before rebooting.

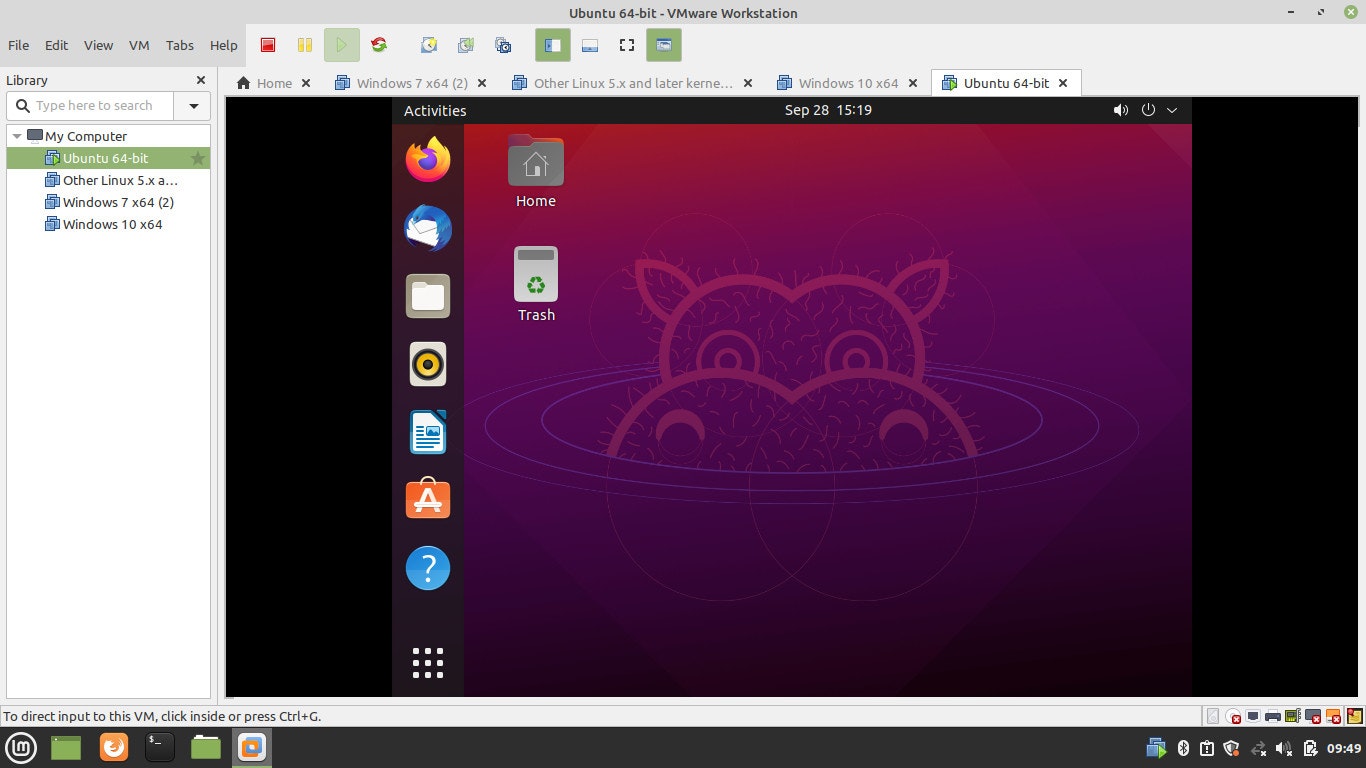

Step 29. Boot Ubuntu

This is how you should install Ubuntu Linux on VMWare Workstation. We hope this tutorial post will help you install Ubuntu Linux on VMWare Workstation. Thanks for reading this post. Please share this post and help to secure the digital world. Visit our social media page on FacebookLinkedInTwitterTelegramTumblr, & Medium and subscribe to receive updates like this.
