Step by Step Procedure to Convert a CER Certificate to PFX Without the Private Key
Before jumping into the procedure to convert a CER certificate to PFX without the private key. Let’s understand the difference between the certificate formats.
You can always refer X.509 certificate Request for Comments (RFC) and X.509 articles to know about the digital certificates in depth. X.509 certificates come majorly in two formats:
Base64 (ASCII)
Binary
Again there are two formats underneath Base64. They are PEM and PKCS#7. As like Base64, Binary has two formats too: DER and PKCS#12.
Of all these certificate formats few of them come bundled with a private key and few are not. To tell in short, .cer, .crt, and .p7b formats necessarily don’t have the private key with them. Whereas .pfx is always bundled with a private key.
Most of the Certificate Authorities will not issue certificates with the private key. They just issue and share the certificates in .cer, .crt, and .p7b formats which don’t have the private key in most of the cases. But, your application needs the certificate in .pfx format. Now, you have a .cer certificate in your hand, but you need a .pfx certificate to deploy. And, you can’t convert the .cer certificate to .pfx without the private key. This problem has created confusion in most people and may create delays in the certificate deployment/renewal process.
We thought it is an excellent idea to address this common problem. So we are here to explain the complete step by step process to convert a CER Certificate to PFX Without the private key.
Overview of CER and PFX Certificates
Since, we are dealing with two commonly used certificate formats: CER and PFX. Let’s learn more about them. Both CER and PFX are for different purpose.
You might know that digital certificates are used for two main reasons:
Secure communications
Authenticate identities online.
CER or CRT files contain the public key and other certificate information in a binary DER encoded format or Base64 encoded PEM format. Since it only has the public key, it is most likely used to complete three-way handshake. On the other hand, since it doesn’t bundled with private key, It cannot be used alone for authentication.
PFX or PKCS #12 files contain the public key, private key, and certificate chain in an encrypted container. The private key allows PFX files to be used for authentication purposes.
PFX files are more versatile as they bundle both public and private keys. CER files are easier to distribute publicly since they only contain the public key.
Common uses of CER files include distributing public keys and root/intermediate certificates. PFX files are used for authentication in applications and web servers.
CER vs PFX
| Feature | CER | PFX |
|---|---|---|
| Contents | Public key + certificate info | Public key + private key + certificate info |
| File format | Binary DER or PEM encoding | Encrypted binary container |
| File extension | .cer, .crt, .der | .pfx, .p12 |
| Encryption | Not encrypted | Encrypted with password |
| Private key | No | Yes |
| Authentication usage | No, public key only | Yes, has private key |
| Common uses | Distribute public keys and certificates | Authentication, web servers, email security |
| Platforms | Windows, Linux, Mac | Windows, Linux, Java, Android, iOS and more |
| Conversion | Can be converted to PEM | Can be converted to CER/PEM |
When to Convert CER to PFX?
You may need to convert a CER file to PFX format in situations like:
Setting up an SSL/TLS certificate on a web server that requires the private key for authentication.
Configuring certificate-based authentication for client applications that need to authenticate using a certificate.
Transferring a certificate and private key between systems. The PFX bundle keeps them together.
Backing up a certificate and private key for recovery purposes.
In these cases, just the public CER certificate won’t work since the private key is also needed. Converting it to PFX format bundles the cert and private key.
How to Convert a CER Certificate to PFX Without the Private Key (On Windows)?
The procedure is quite simple. You can convert a CER certificate to PFX without the private key in three simple steps. But, this process will require the machine on which you have created the CSR (Certificate Signing Request) Because the private key had been created during the CRS creation process. We are just using the previously create private key to convert the CER certificate to PFX. Bear in mind, this process will work only on Windows platform.
This process has been divided into three simple tasks:
Import the certificate chain to their respective stores.
Open the certificate snap-in in the Windows MMC console.
Export the certificate in .pfx from the MMC console.

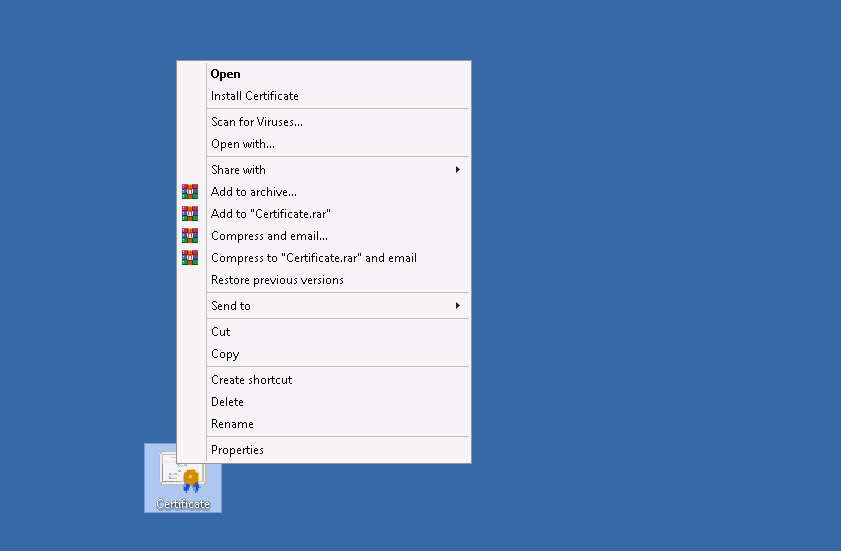

Step 1: Import the certificate to its personal certificate store
Right-click on the certificate file.
Select install certificate.

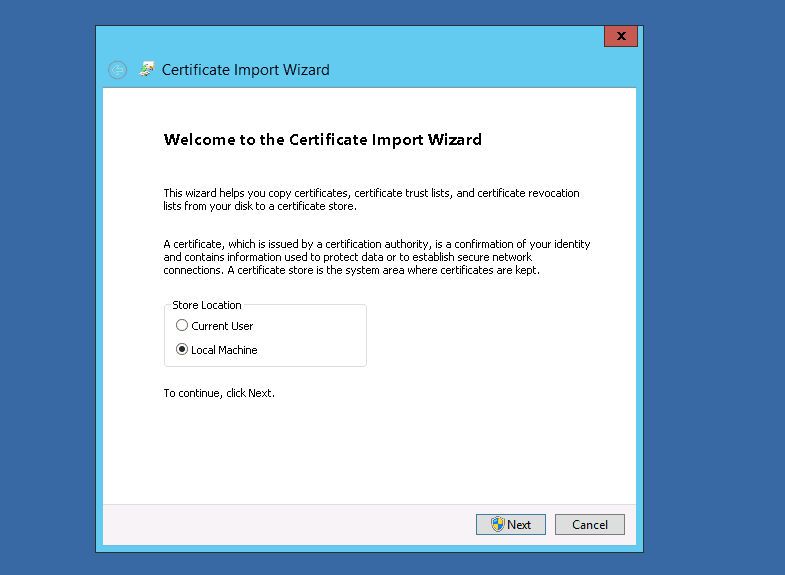

Step 2: Select the Local Computer radio button

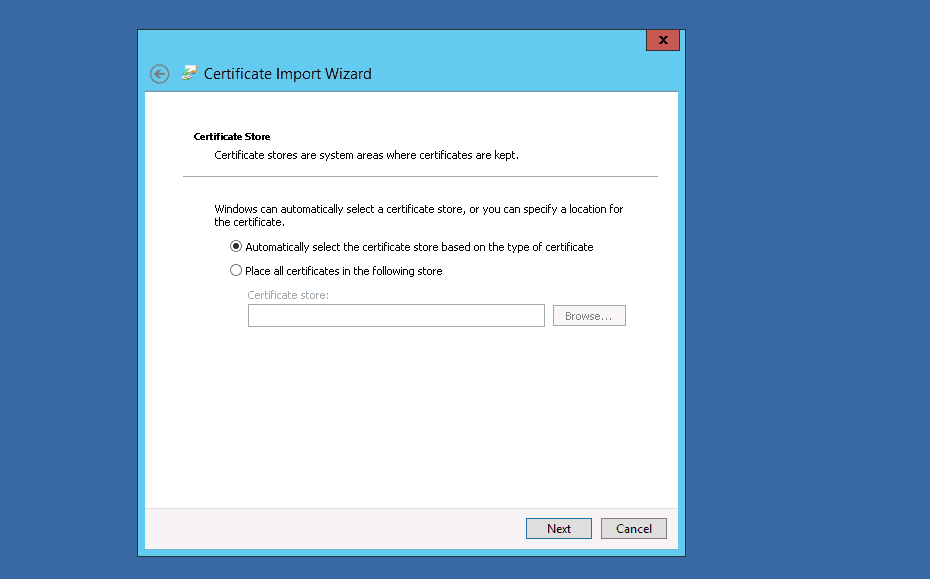

Step 3: Select the default automatic store to import the certificate

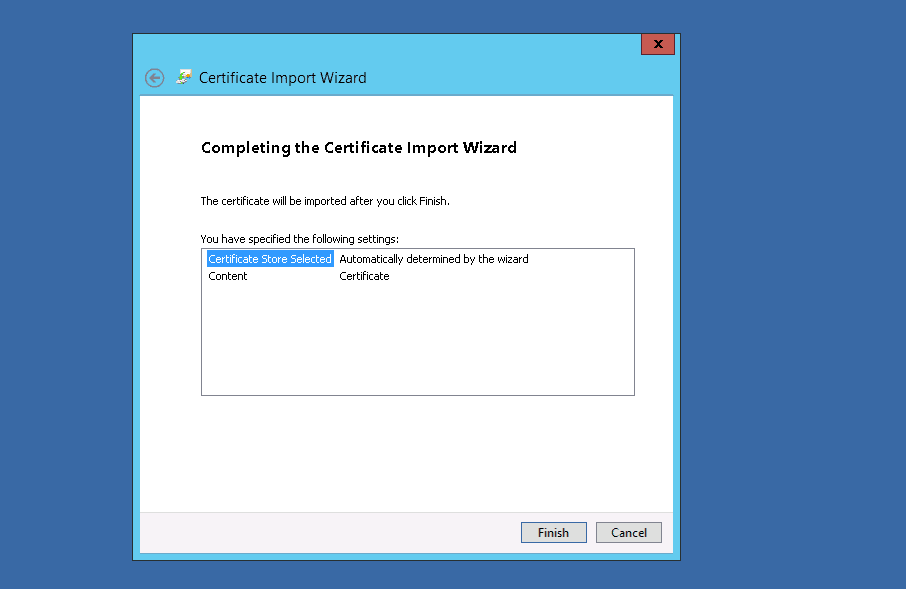

Step 4: Import the certificate
Click the Finish button to complete the import process.

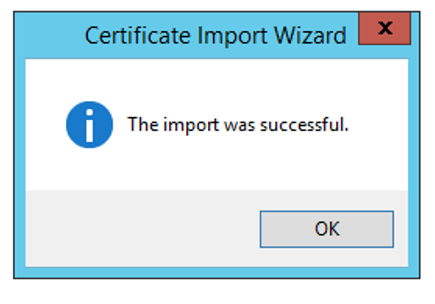

Step 5: Import process complete.
Wait for a while until you see a successful message.
Step 6: Open MMC on the Windows server
Hit Win + R to open the Run utility
Type mmc in the box.
Press Ok.
Step 7: Add Certificate Snap-in
Go to File > Add/Remove Snap-in.
Step 8: Select Certificates and press Add
Step 9: Select the User or Computer Certificate snap-in
Select the snap-in which you want to create the certificate. For demonstration, we are choosing a Compute account.
Click Next.
Step 10: Select Local Computer
Select the local computer as you are going to create CSR on the same computer.
Click Finish.
Step 11: Select Certificate (Local Computer) and click Ok

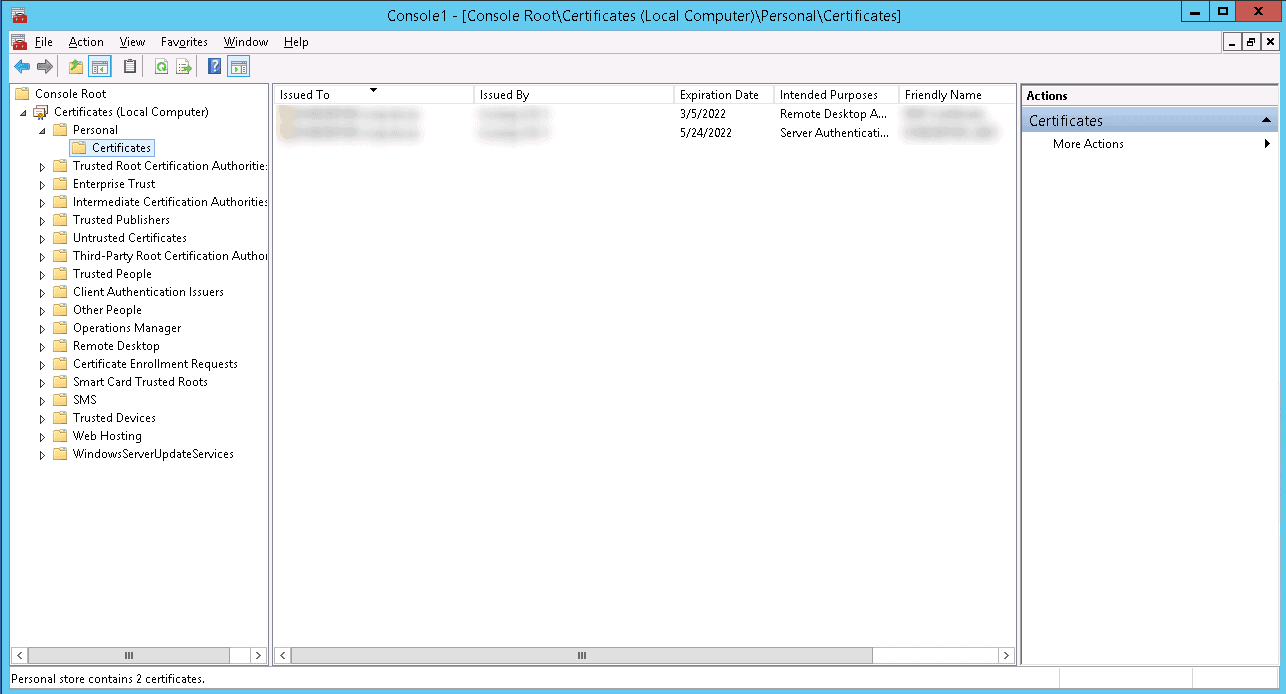

Step 12: Load MMC
You will see the certificate in the personal store.

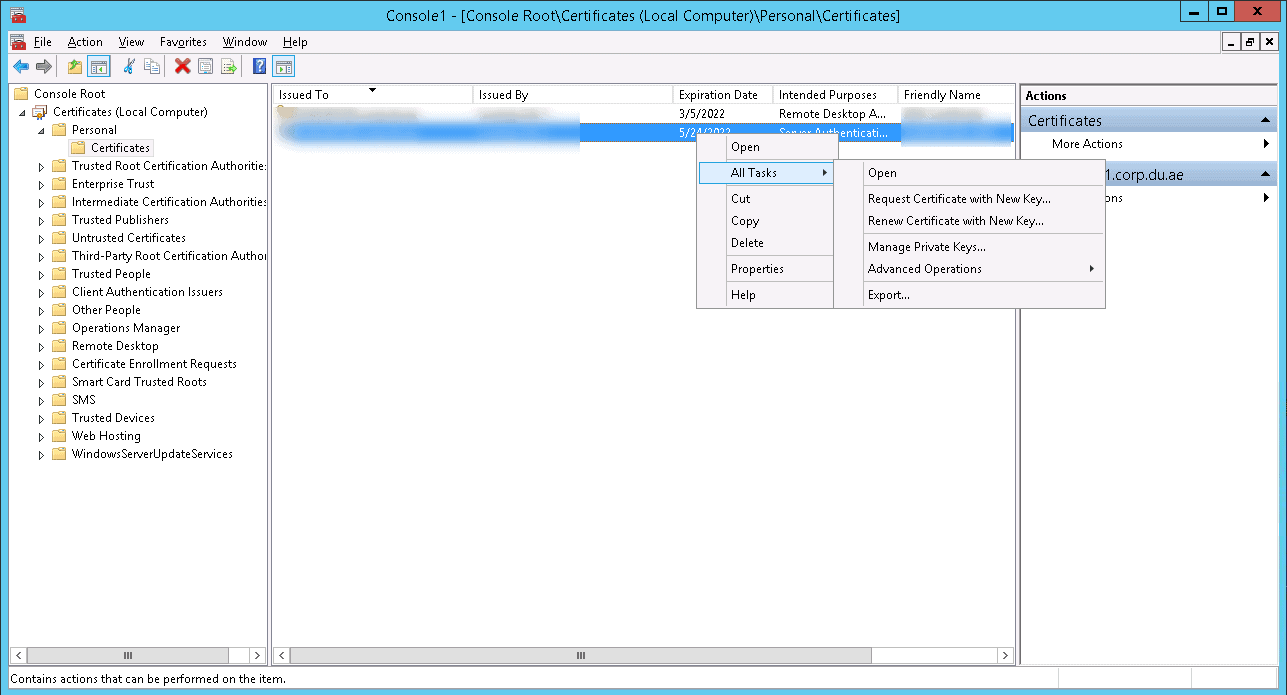

Step 13: Export the Certificate
Right Click on the Certificate
Select All Tasks -> Export

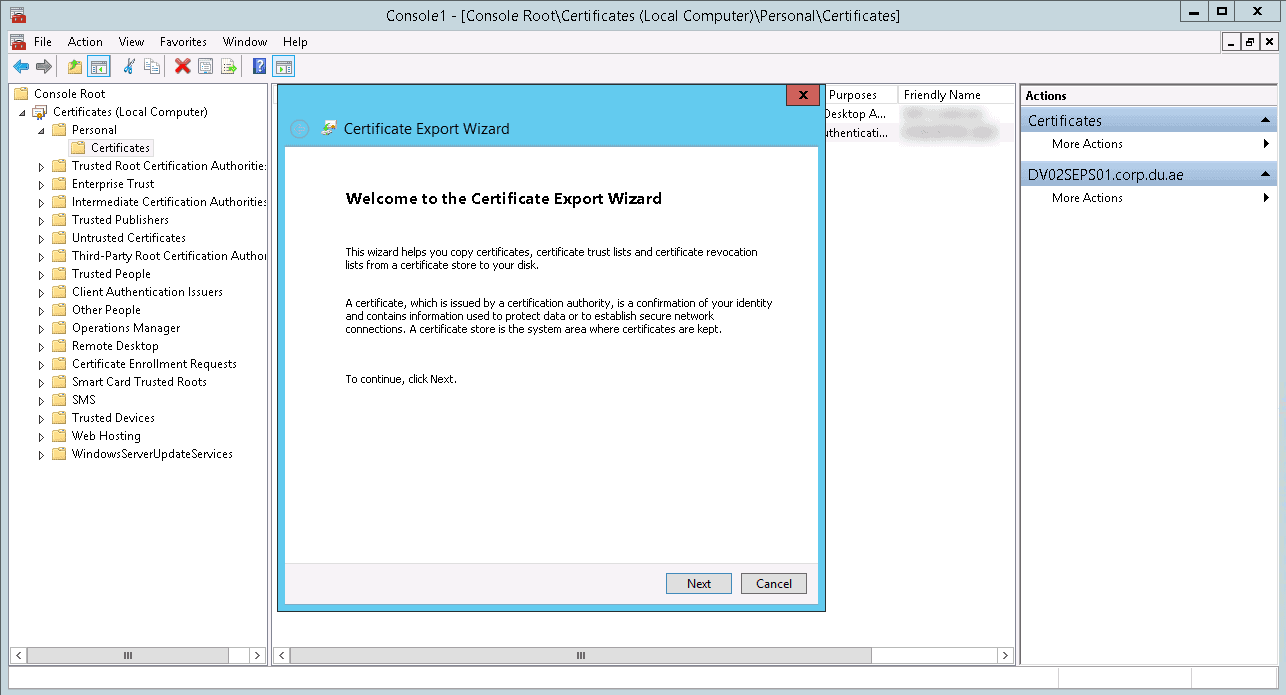

Step 14: Certificate Export Wizard
Click Next in the Certificate Export Wizard

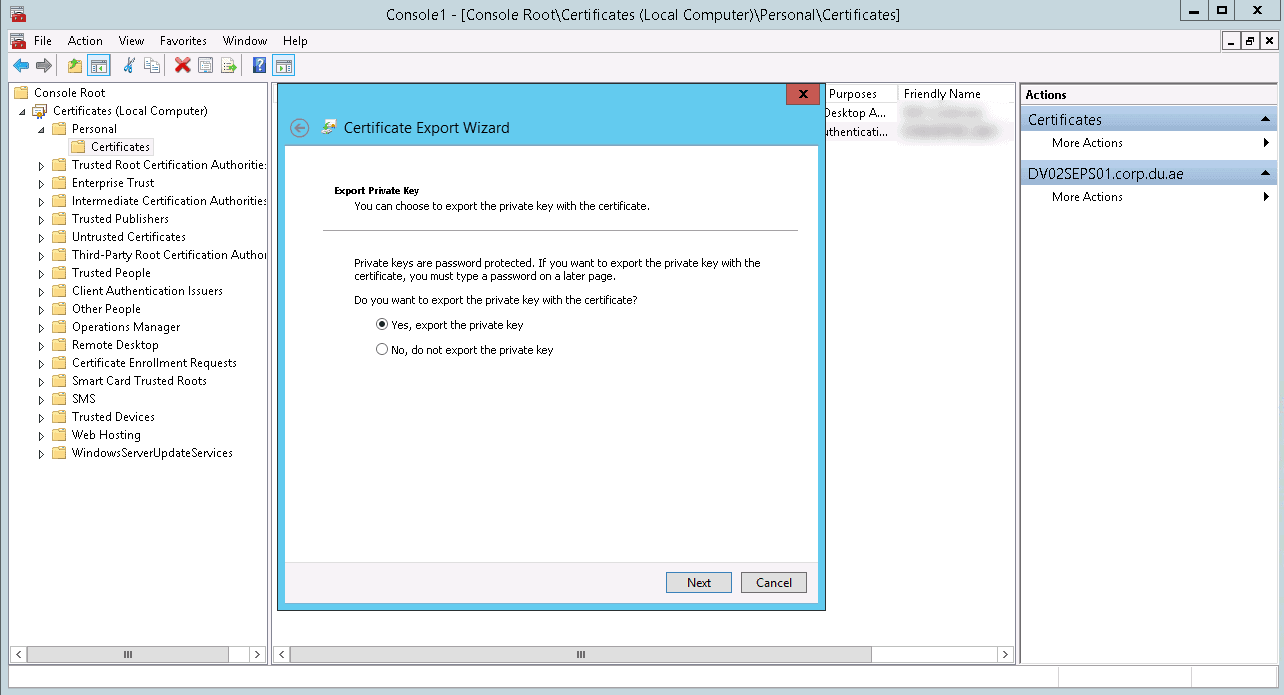

Step 15: Export the Private Key
Select the radio button ‘Yes, export the private key’
Click Next

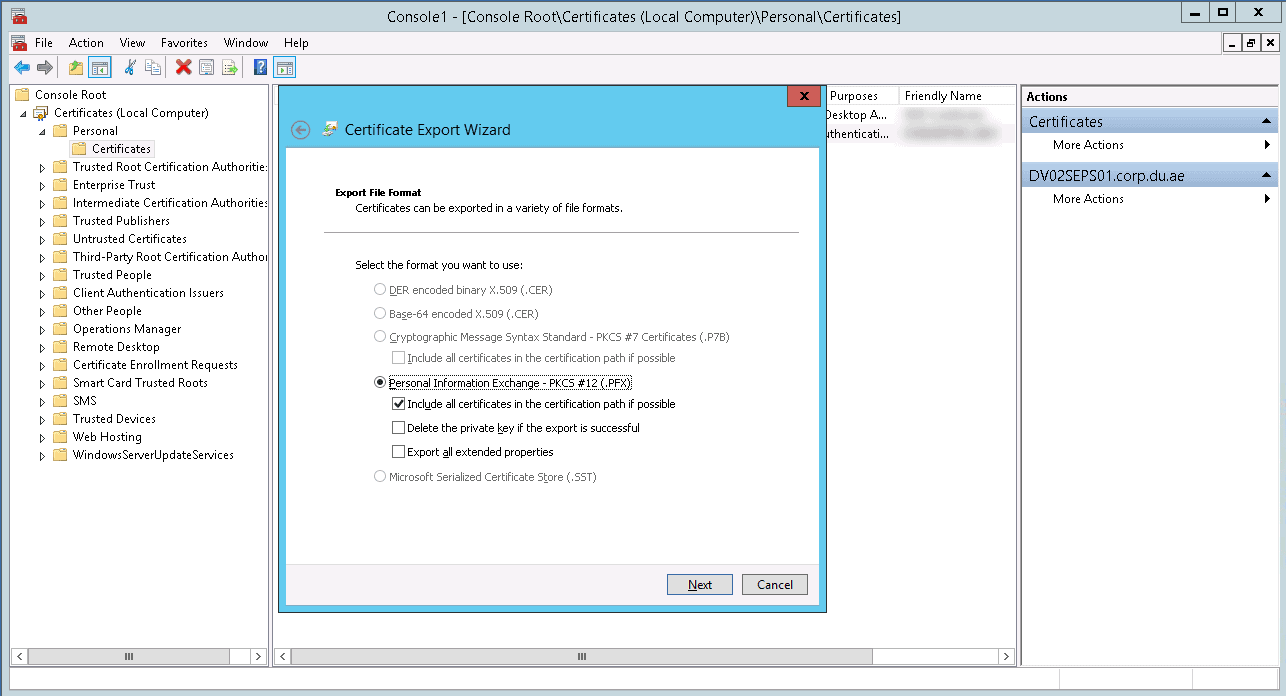

Step 16: Export the pfx certificate
Select the PFX radio button.
Three options are available to select during the export. Select the one which you need.
Click Next

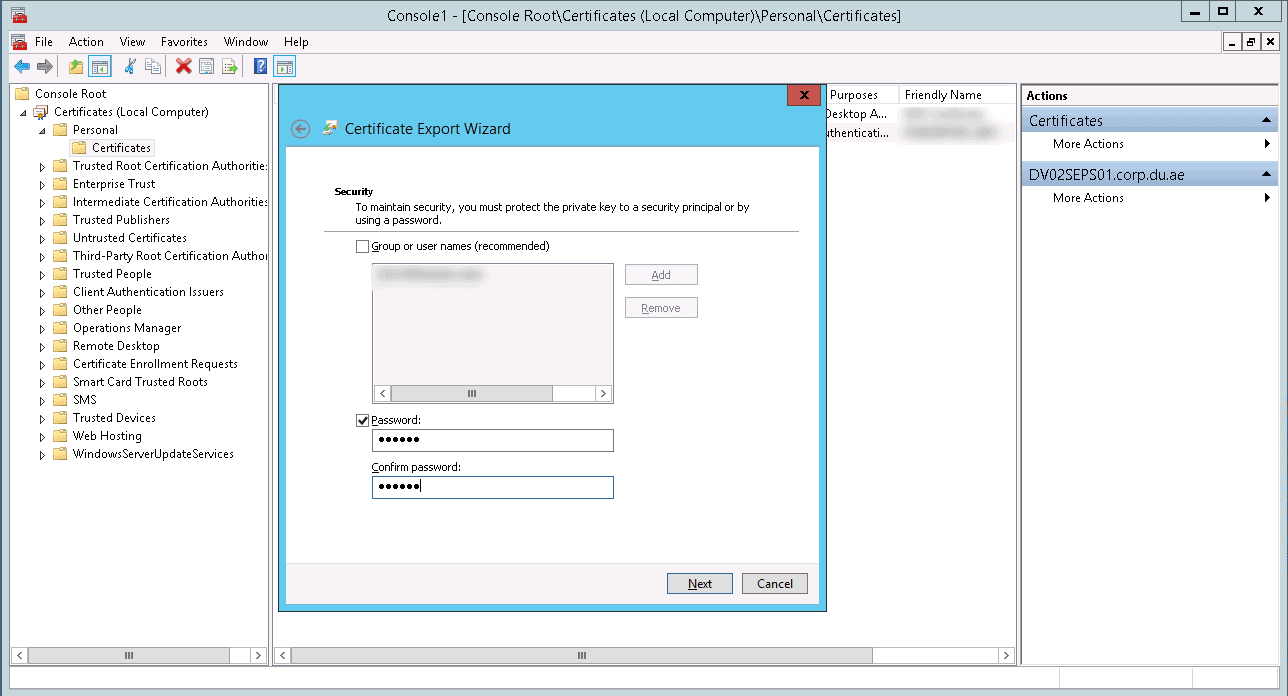

Step 17: Select Security options to export the pfx certificate.
(Optional) Select the Group or user name of your choice if you want to set the permissions to manage the certificate.
Select a password and enter the password to encrypt the certificate.
Note: It is mandated to select the password. It is recommended to secure the private key.

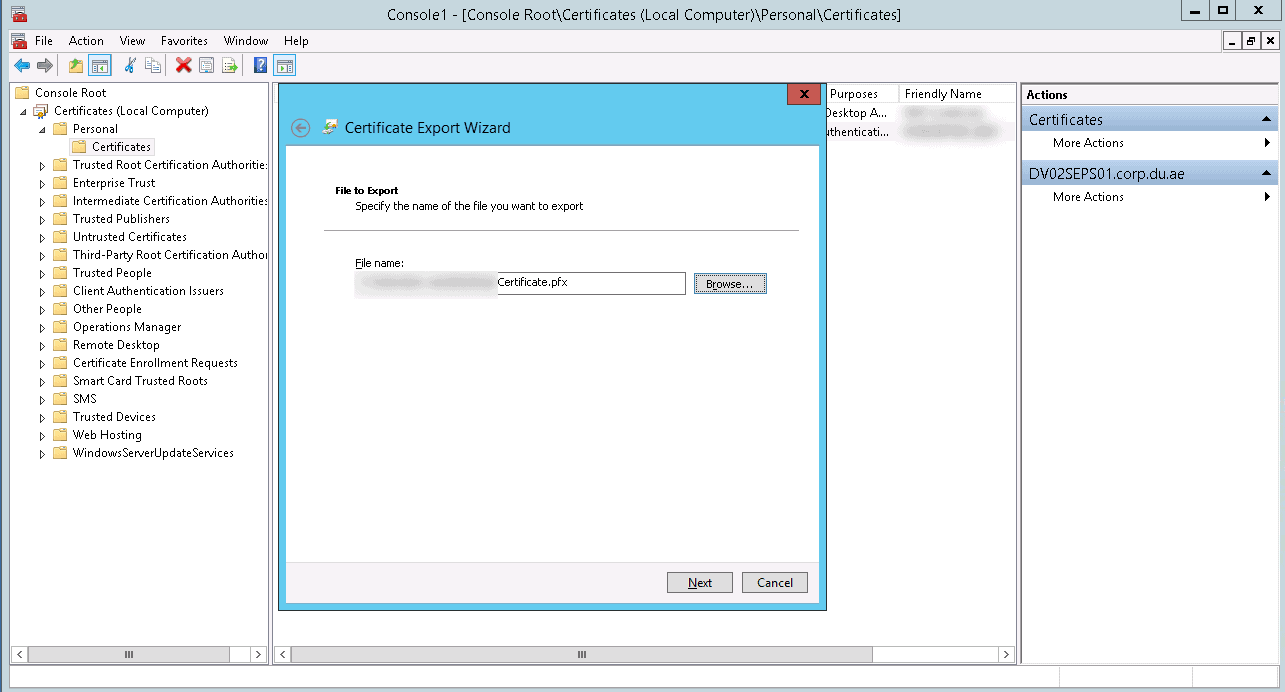

Step 18: Provide the location to save the pfx Certificate.
Browse the location where you want to save the pfx certificate
Click Next

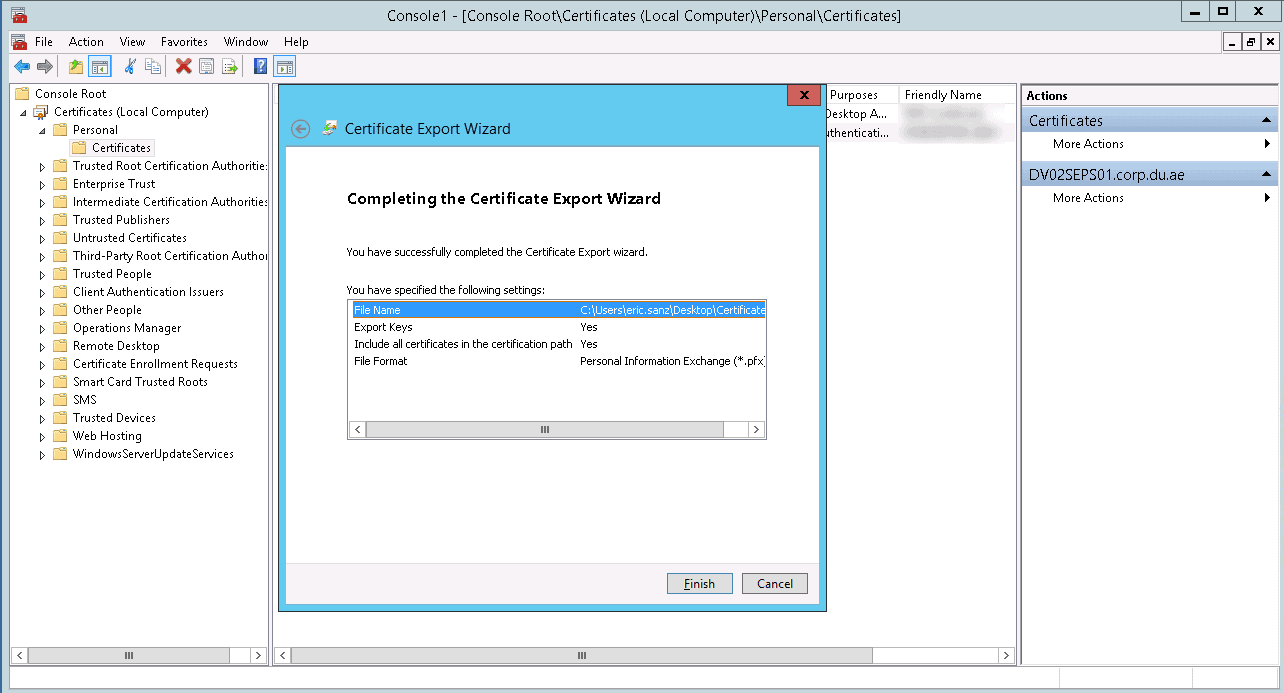

Step 19: Finish exporting the PFX certificate
This completes the procedure to convert a CER certificate to PFX without the private key on Windows.
How to Create a PFX Certificate from a CER Certificate (Using OpenSSL)?
Well, you can convert a CER file to PFX using the command line tools like OpenSSL or OpenSSL GUI for a graphical interface.
This process has been divided into three simple tasks:
Export Private Key
Convert CER to PEM (Optional)
Bundle PEM Files into PFX
Step 1: Export Private Key
First, you need access to the associated private key for the CER certificate. If the CER was generated as part of a CSR request, the private key should be available.
Export the private key to a file. For example:
openssl rsa -in privateKey.key -out private.pemThis exports the key in PEM format.
Step 2: Convert CER to PEM (Optional)
If the CER file is in DER/binary format instead of PEM format, convert it to PEM first:
openssl x509 -inform der -in certificate.cer -out certificate.pemThis converts the DER CER file to a PEM file that can be bundled.
Step 3: Bundle PEM Files into PFX
Finally, bundle the PEM certificate and private key into a PFX file with:
openssl pkcs12 -export -out certificate.pfx -inkey private.pem -in certificate.pemWhen prompted, create a password to encrypt the PFX file.
The PFX output will contain the certificate and matched private key, now in a format usable for authentication.
Thanks for reading this article. Please read more such interesting articles and keep support us.
This certificate is ready to import to an application.
With the PFX file, you can now import it into web servers, client applications, and tools that expect a certificate + private key for functions like authentication.
For example, on Windows, you can double-click the PFX and use the Certificate Import Wizard. On Linux/Apache, use the SSLCertificateFile directive to point to the PFX. Check your application’s documentation for specifics on importing the PFX.
Bottom Line
Converting certificates from CER to PFX format is a useful technique for bundling public and private keys together. The PFX bundle allows you to transport your certificates between systems and use them for authentication and encryption purposes.
The process involves exporting the private key associated with the CER certificate, optionally converting the CER to PEM format, and then using OpenSSL to bundle the certificate and private key into a protected PFX file.
When generating certificates, it is recommended to create both a CER file for public distribution and a PFX file for your own private usage. The CER can be freely shared while the PFX should be carefully protected and only distributed to trusted parties.
With the ability to interconvert between CER and PFX formats, you gain flexibility in how your certificates can be used. CER files allow a wide distribution of public keys and certificate chains. PFX files give you the option to leverage your certificates for authentication, web servers, email security, code signing, and other functions requiring the private key component.
We hope this post helps understand how to convert a CER certificate to PFX or in other words, create a PFX file from a CER or CRT file. Thanks for reading this post. Please share this post and help secure the digital world. Visit our website, thesecmaster.com, and our social media page on Facebook, LinkedIn, Twitter, Telegram, Tumblr, Medium, and Instagram and subscribe to receive updates like this.
