Step-By-Step Procedure To Install An SSL Certificate On The IIS Server

How To Install An Ssl Certificate On The Iis Server

We have created this post to help those who wants to know how to install an SSL certificate on the IIS server. You should begin following this procedure only after you acquire an SSL/TLS certificate for your application. If you dont have a certificate issued for your application hosted on the IIS server yet, please get a certificate for your application from your Certificate Authority.

To get a certificate for your application:

  1. Contact your Certificate Authority

  2. Create a Certificate Signing Request (CSR) and submit to Certificate Authority

  3. Download the Certificate from the Certificate Authority

If you think you need assistance in creating a CSR in the IIS serer, we have punished a post How to Create a CSR in the IIS Server that helps you with this.

How to Install an SSL Certificate on the IIS Server?

Installing an SSL certificate on IIS 10 is a fairly simple process that can be completed in just a few minutes. However, before you begin, there are a few things you need to make sure you have:

1. A valid SSL certificate. You can purchase one from a reputable Certificate Authority such as Symantec, GeoTrust, or Comodo.
2. The IIS 10 server was installed and configured.
3. Administrator access to the server.

Once you have all of the prerequisites out of the way, follow these steps to install an SSL certificate on the IIS server:

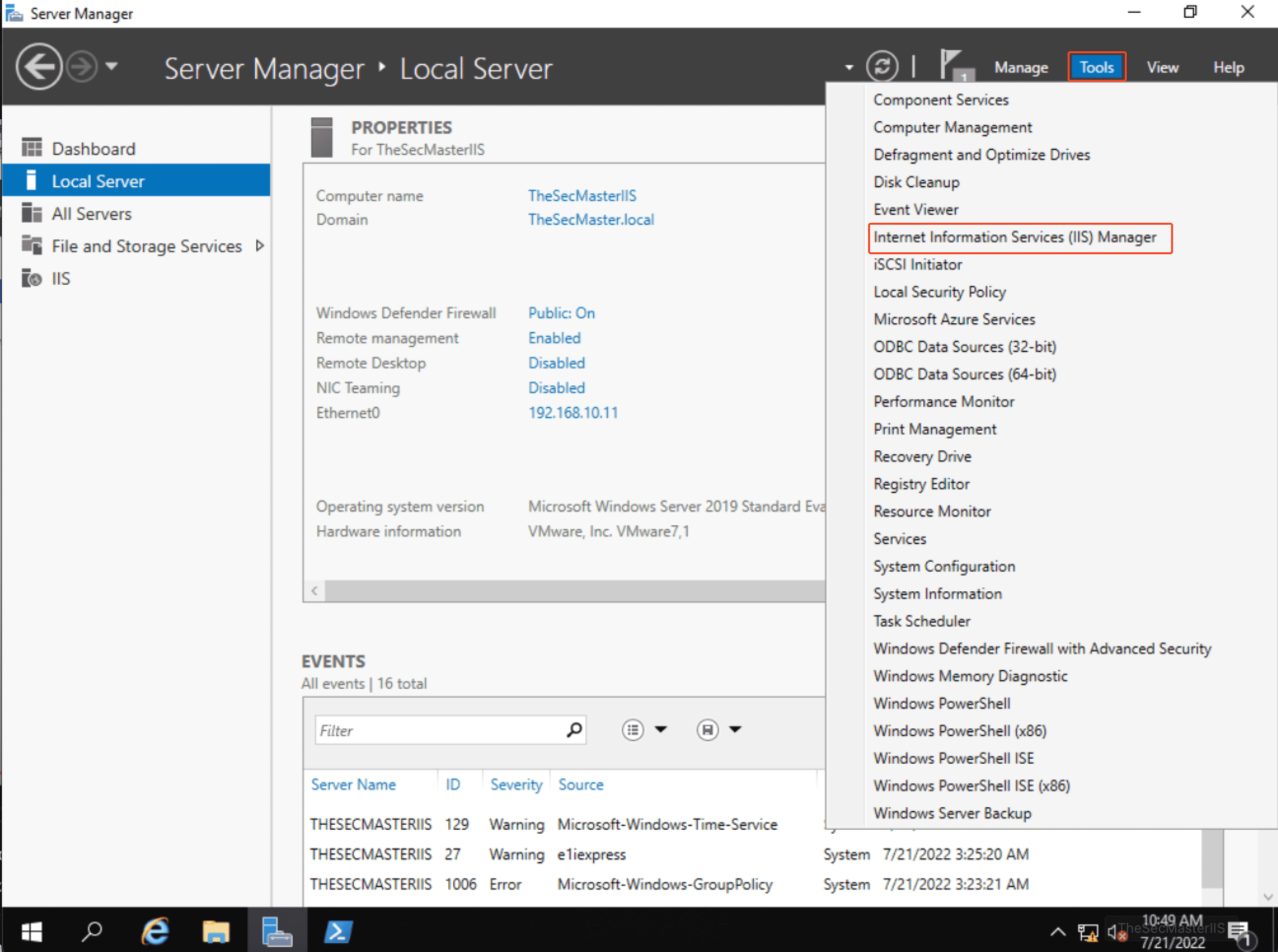

Step 1: Launch Information Service (IIS) Manager

Lets begin the CSR generation process by launching the Internet Information Service (IIS) Manager.
In Server Manager, go to
Tools > Information Service (IIS) Manager.

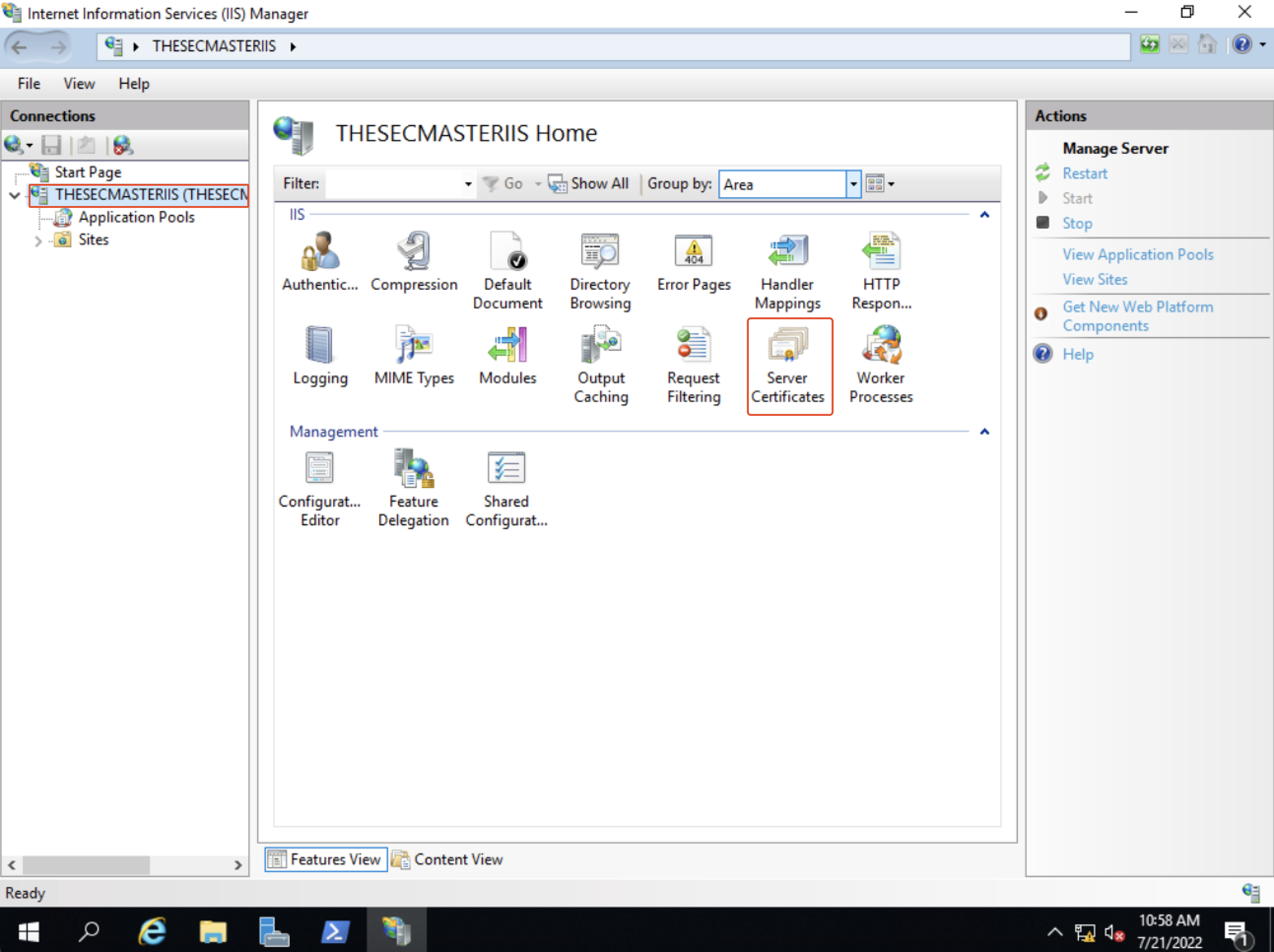

Step 2: Verify Certificates installed on the IIS Website

Select  Server Name and Double-Click on Server Certificates

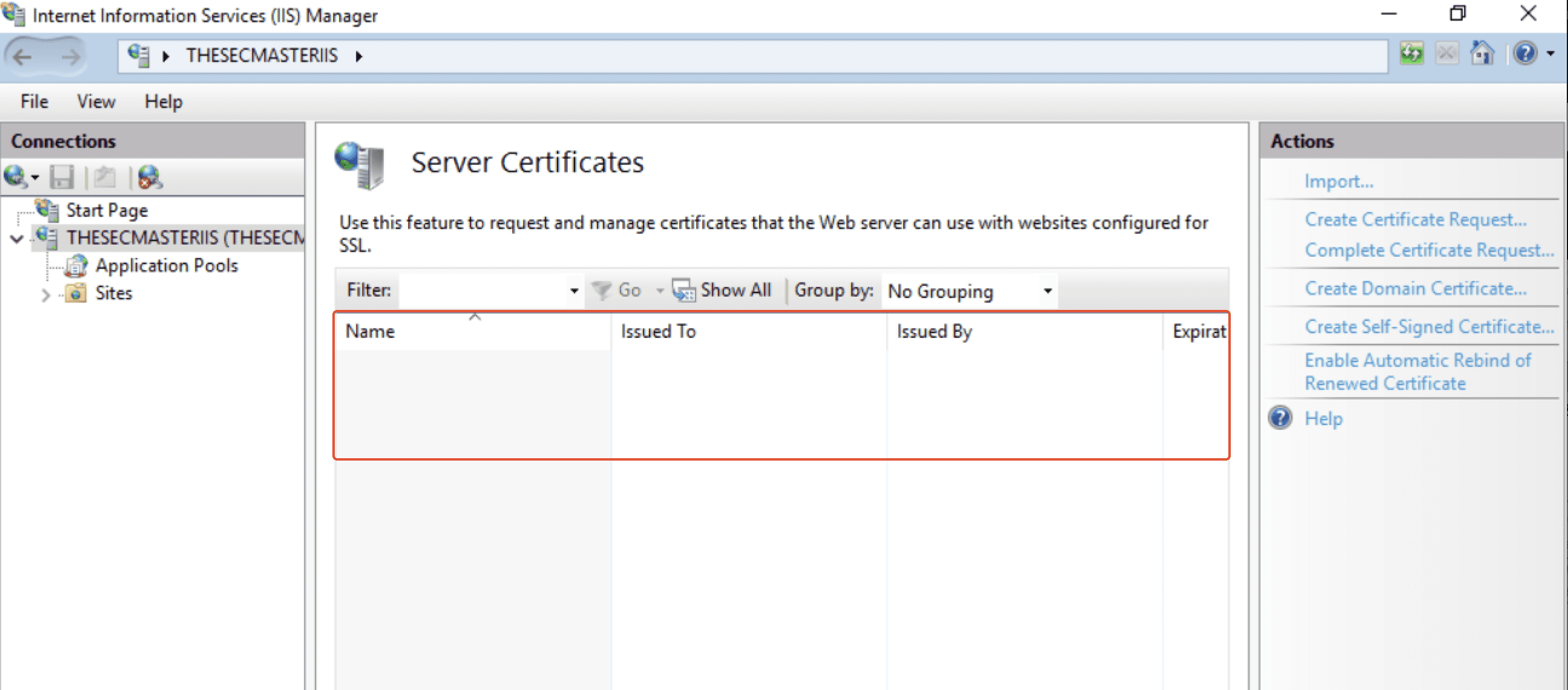

Step 2: List of certificates installed in the IIS Server.

As you can see in the picture, no certificates have been installed on the IIS server yet.

Step 3: Generate the Certificate from the CSR file

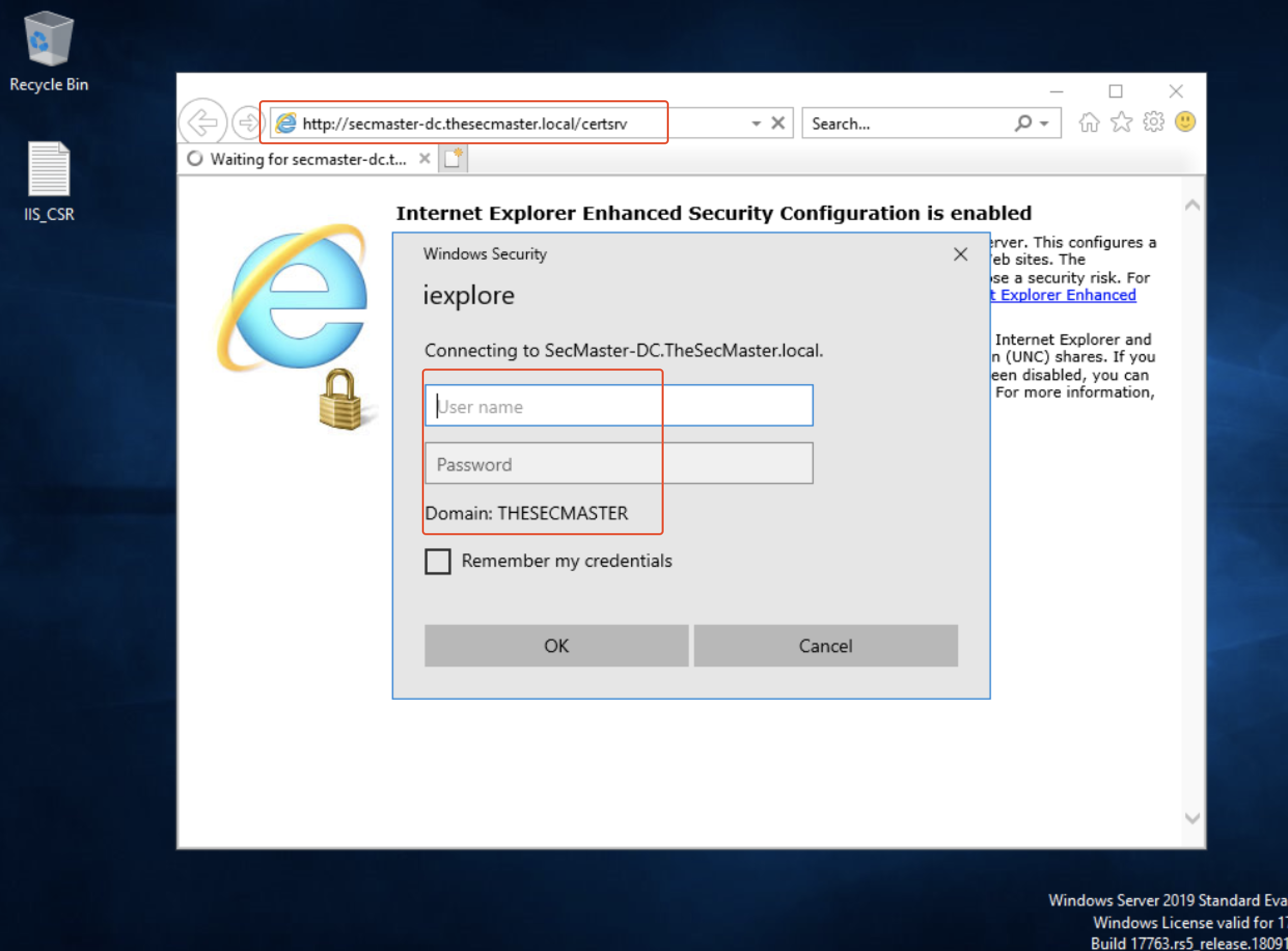

Lets generate a Certificate using the CSR file generated in this post. To generate a certificate, log in to the Local Certification Authority ADCS portal.

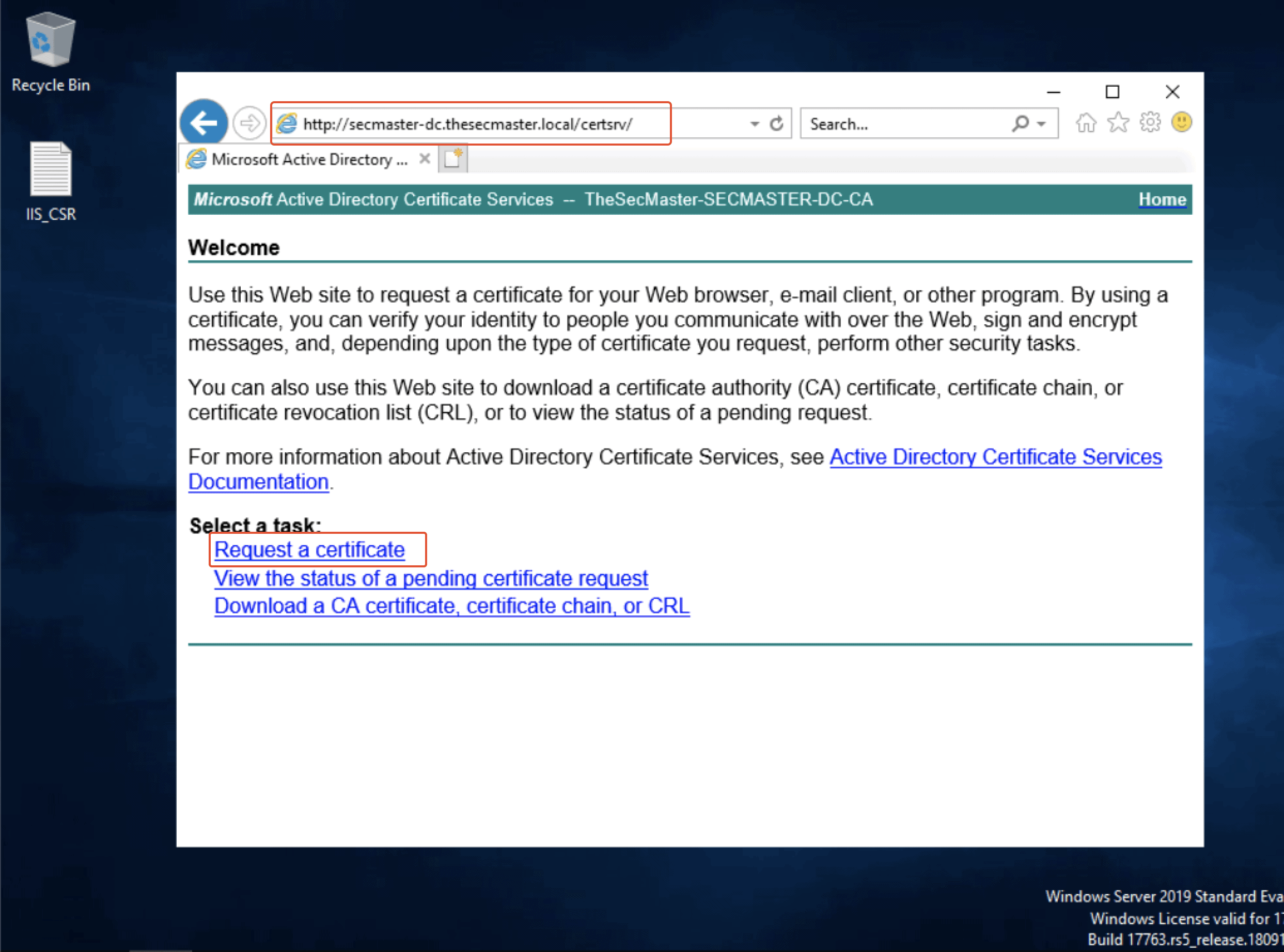

Step 4: Request for a Certificate

After you log in to the Local Certification Authority ADCS portal, you will be greeted with three options. Lets click on the Request a certificate option to submit your CSR.

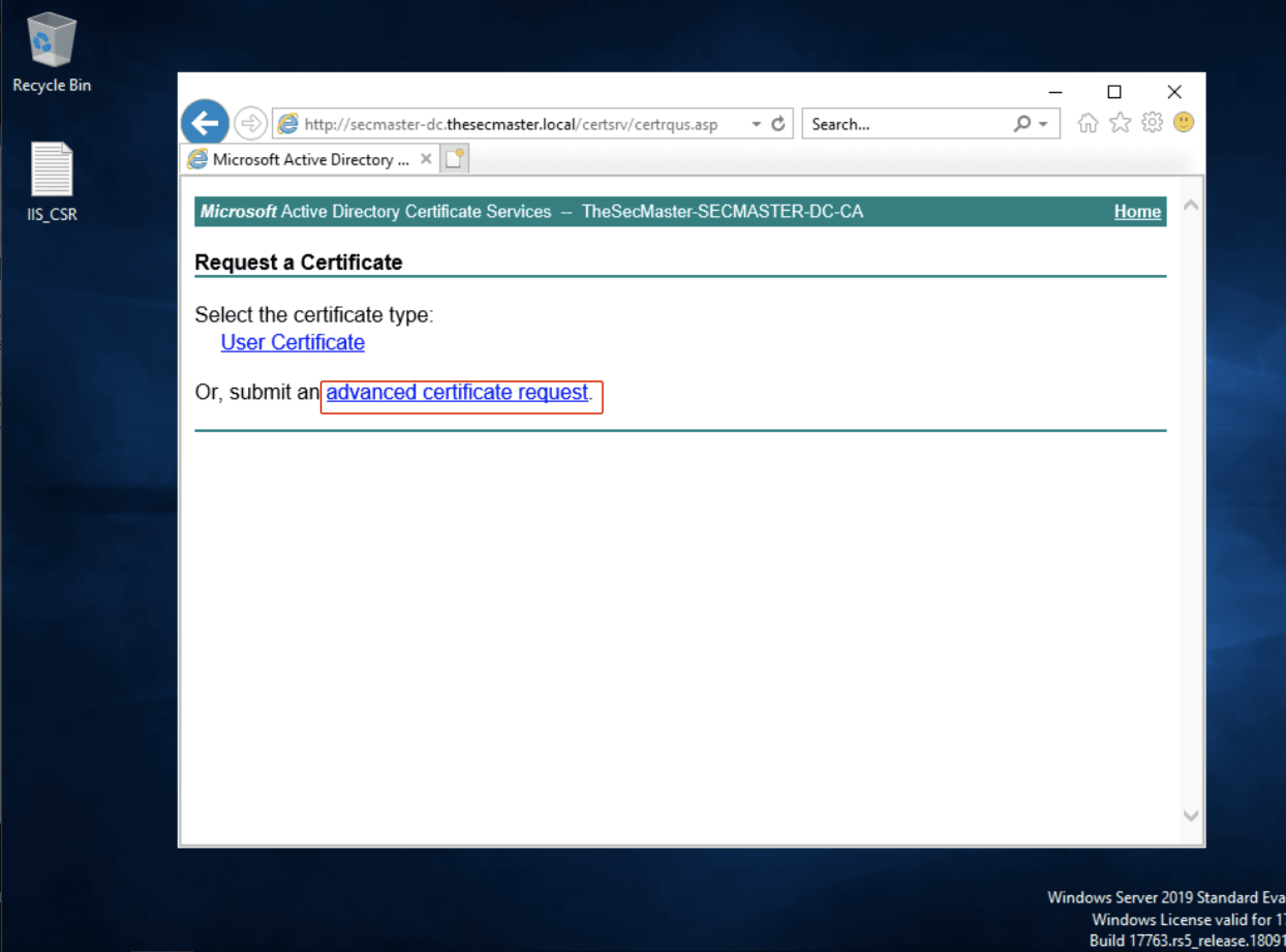

Step 5: Select the Certificate Type in ADCS portal

Since we are requesting a certificate for the IIS server, click on advanced certificate request.

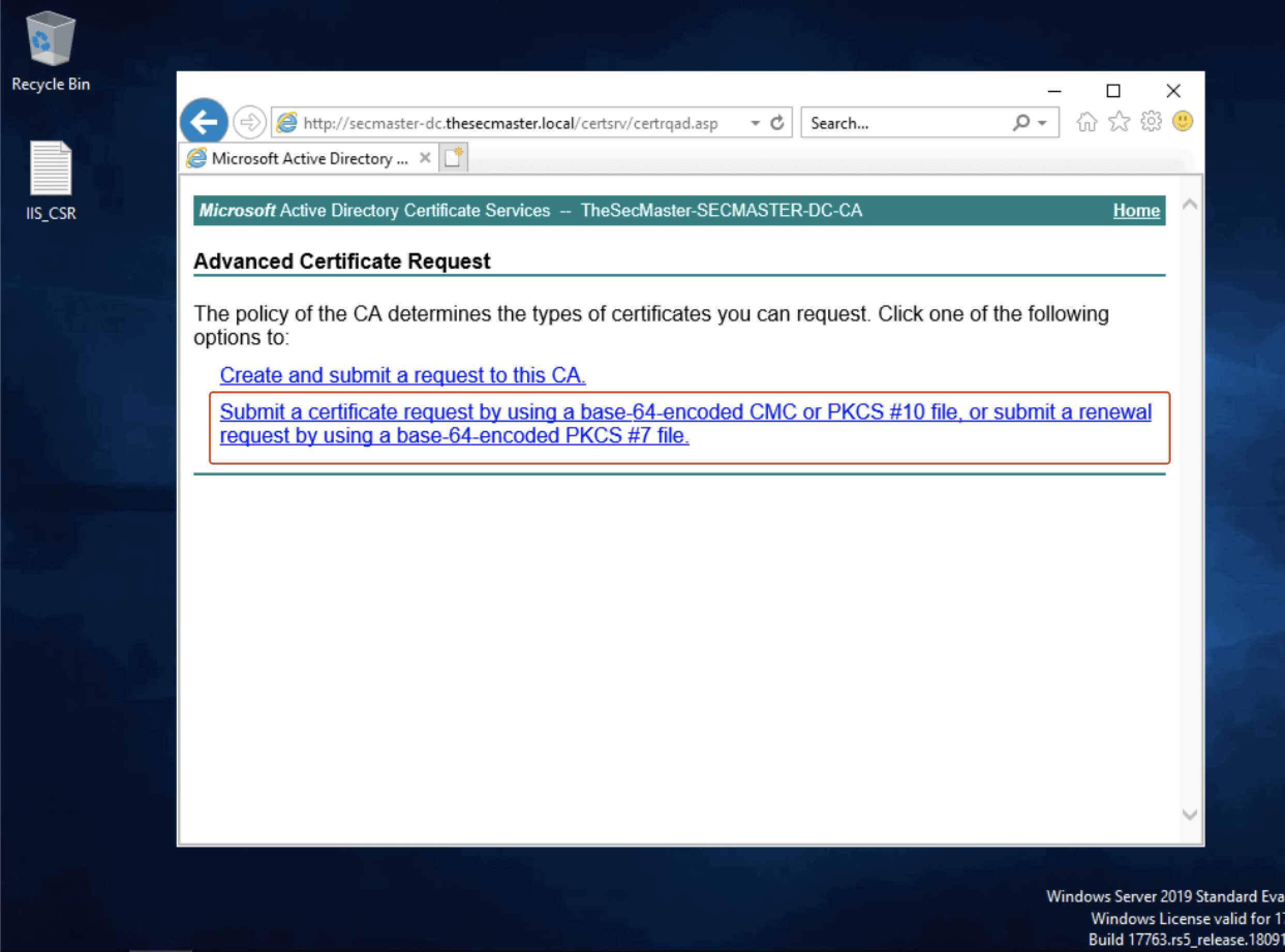

Step 6: Submit the CSR on the ADCS portal

Since we have the CSR file with us, click on Submit a certificate request by using a base-64-encoded CMC or PKCS # 10 file or submit a renewal request by using a base-64-encoded PKCS #7 file.

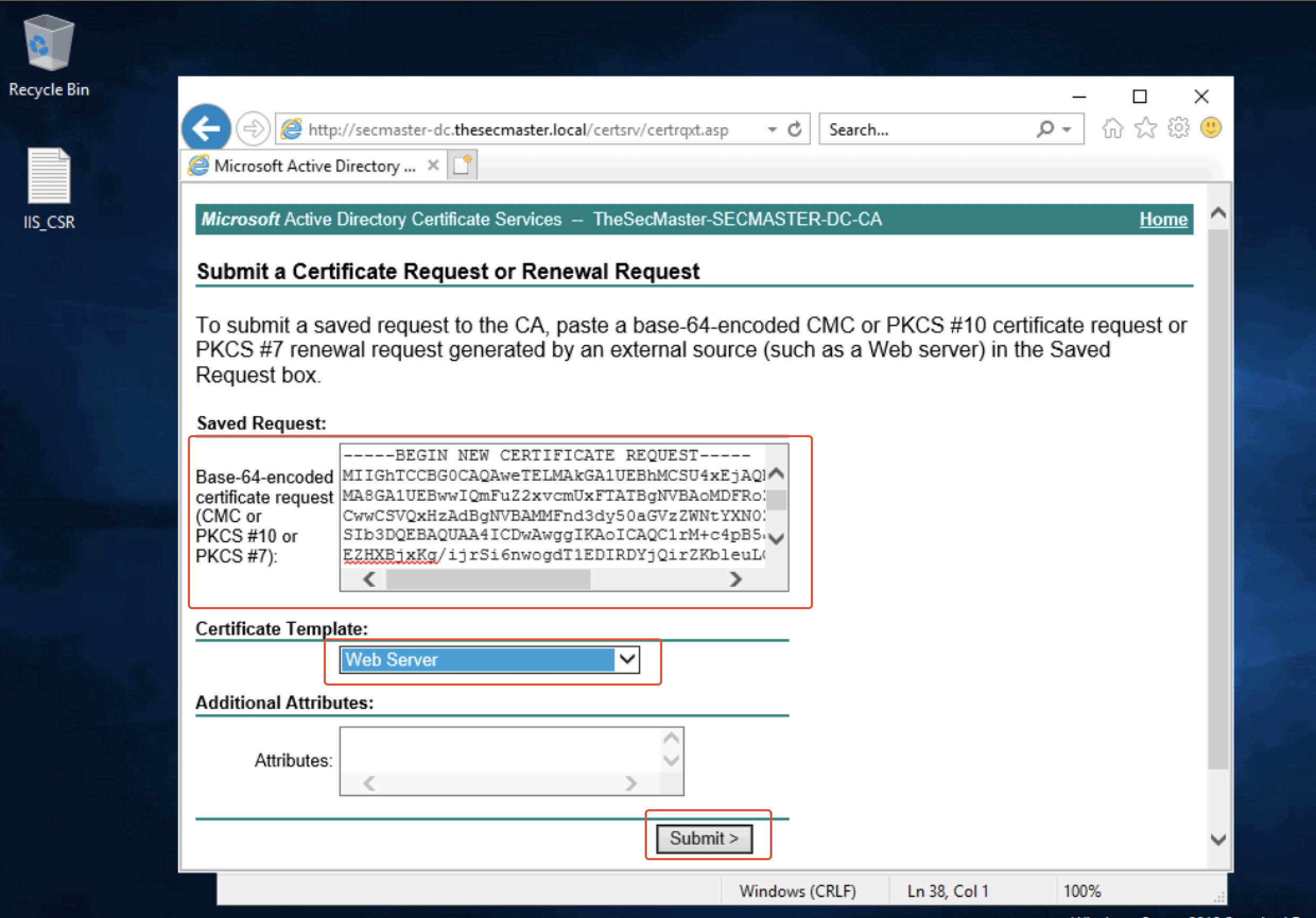

Step 7: Submit the content of the CSR file and Select the Certificate Template

Copy the contents of the CSR file that was generated from the IIS server and paste it under Base-64-encoded certificate request (CMC or PKCS # 10 or PKCS #7):’ Select Web Server’ template under Certificate Template and click on Submit. This completes the certificate submission process here.

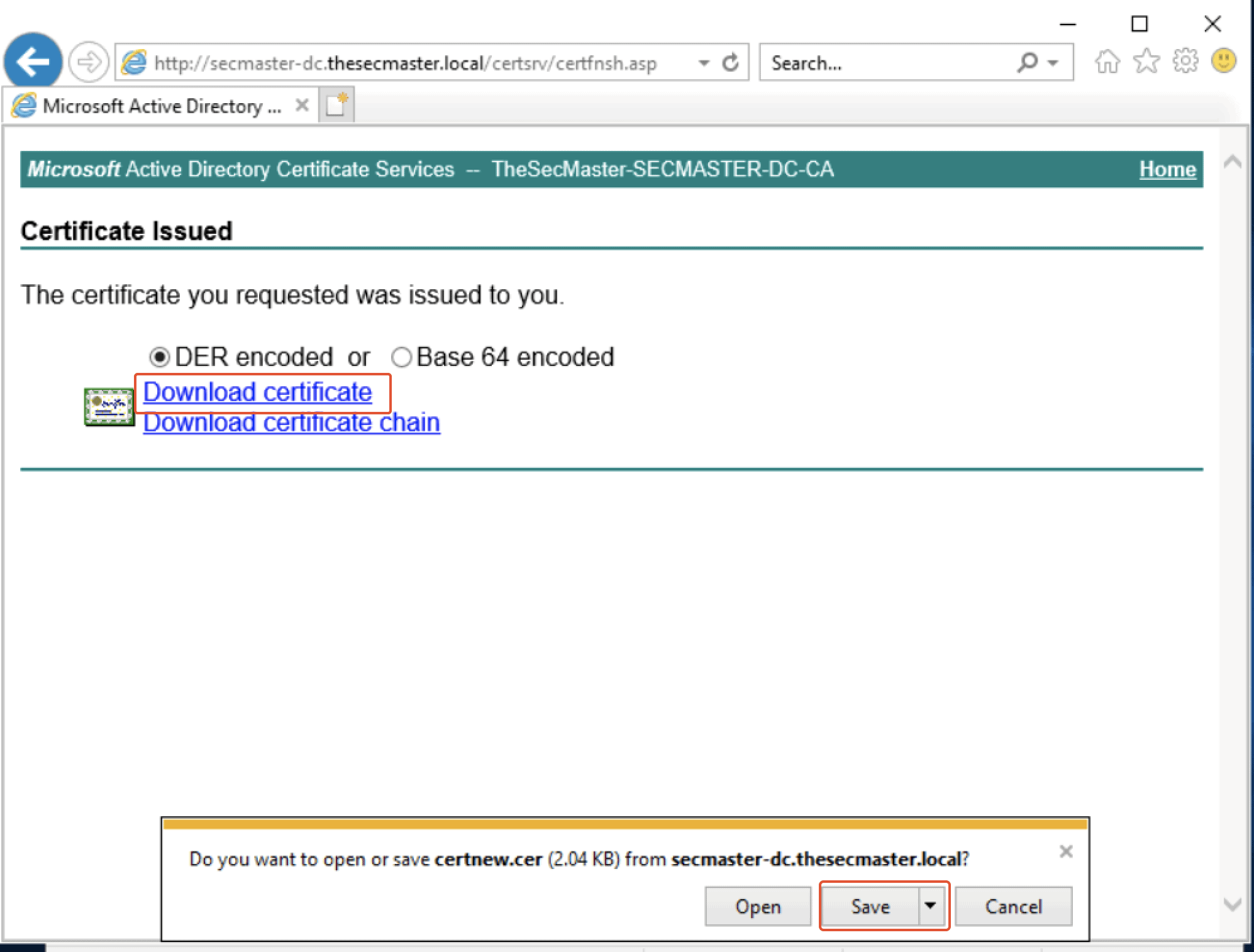

Step 8: Download the Certificate from the ADCS Portal

Lets wait until the certificate is issued by your
Certificate Authority. After the certificate is issued.
Download the certificate by clicking on
Download Certificate and save the certificate on a local drive by clicking on Save’.

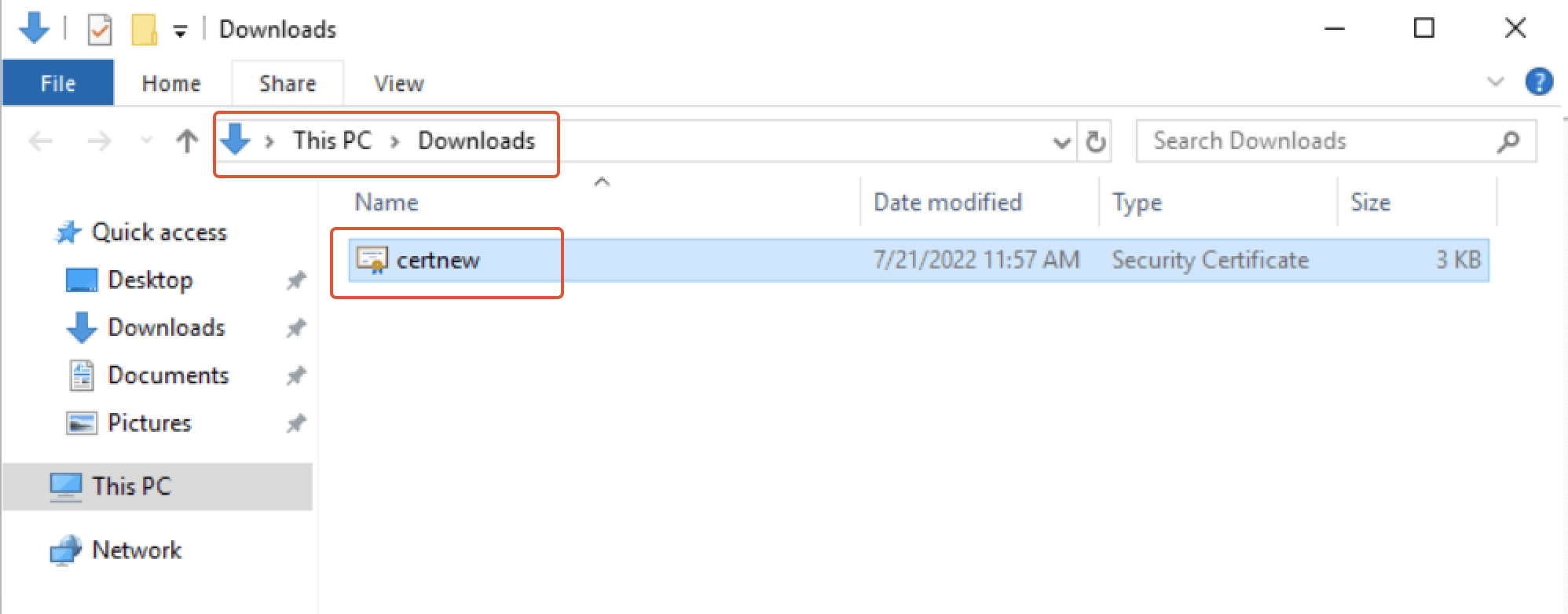

Step 9: Save the certificate on a local drive

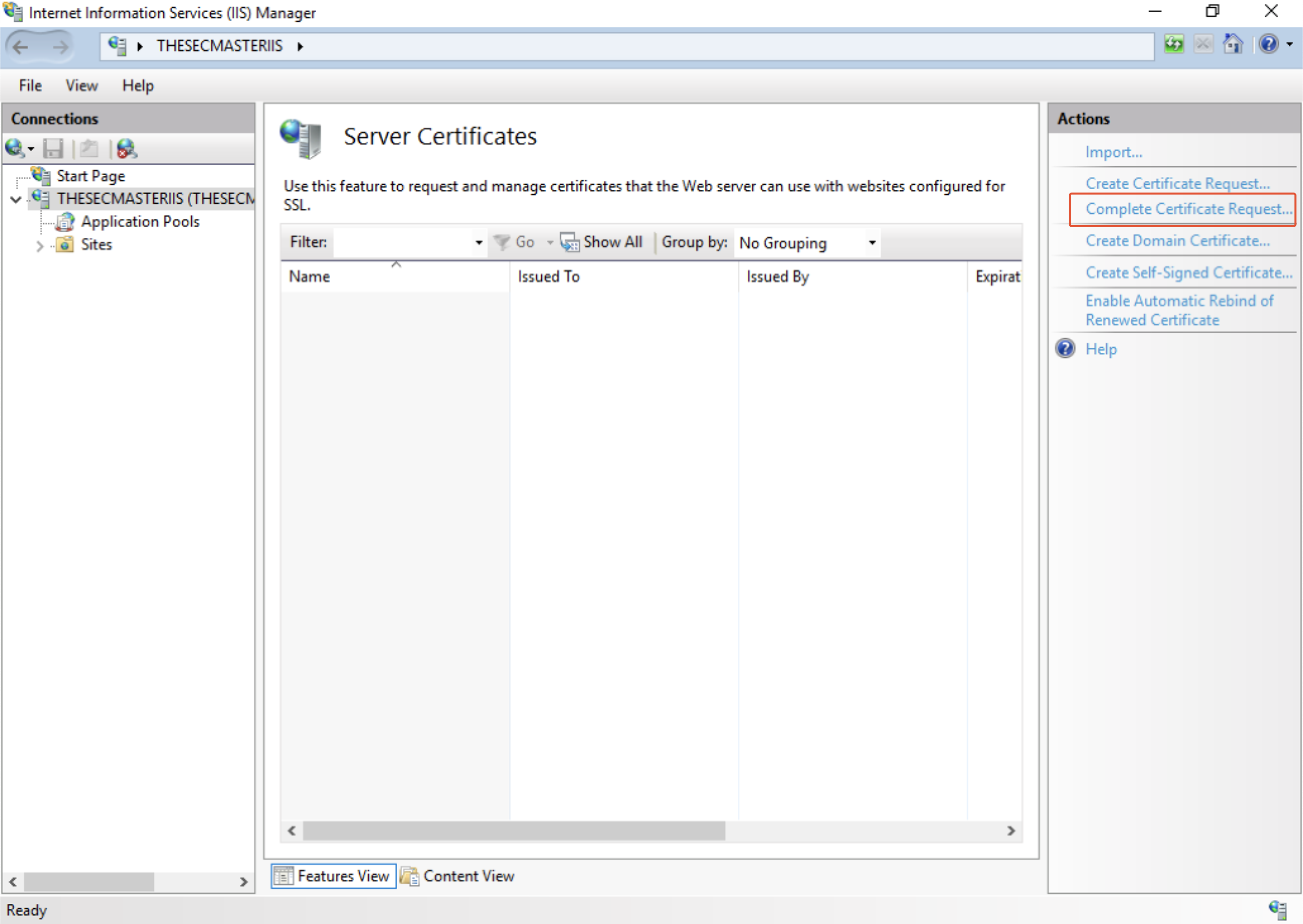

Step 10: Import the Certificate into the IIS Server

To install the certificate open Internet Information Certificate (IIS) Manager. Select Server Name > Double-click on Server Certificates > click on Complete Certificate Request to import the certificate.

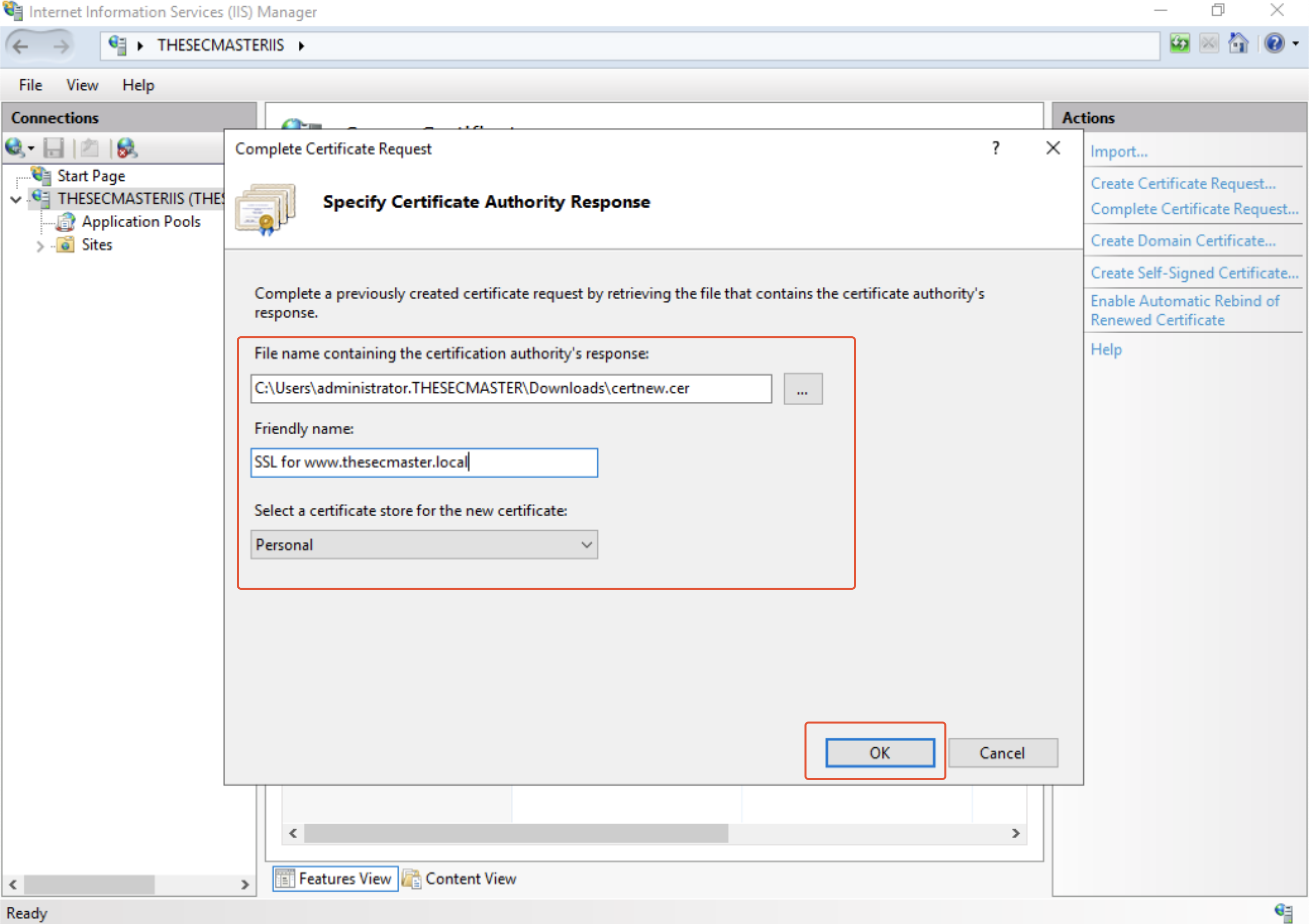

Step 11: Specify Certificate file and Certificate Store

FileName containing the certification authority’s response: Select Certificate file.
Friendly Name:  To identify the certificate in IIS Manager.
Select a certificate store for the new certificate:  Personal
OK to complete the certificate Import wizard.

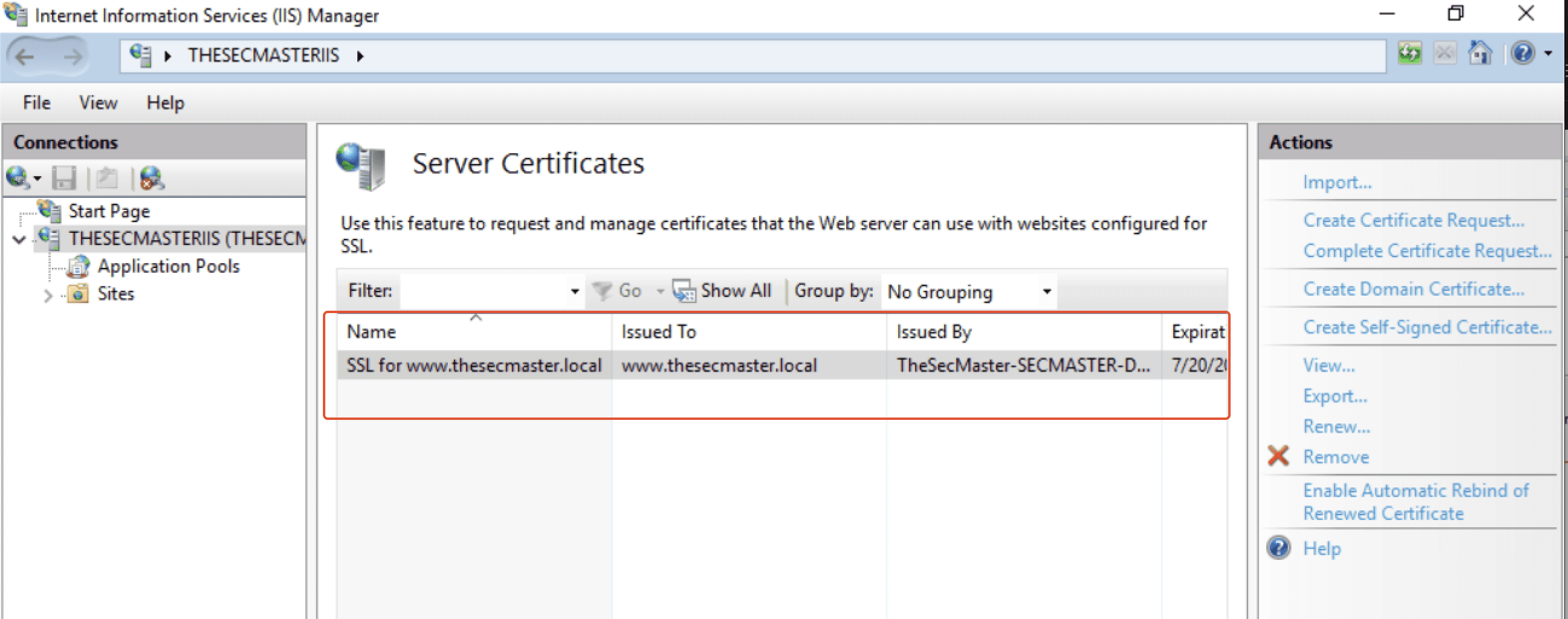

Step 12: The Certificate is installed on the IIS certificate store

Now we can see the Installed certificate in the IIS certificate Store.

Step 13: Bind the Certificate to the Website in the IIS server

Open Internet Information Services (IIS) Manager
Select  Server Name > Sites > Select the Website for which certificate to be Bind (Default Web Site)
Click on
Bindings… under Edit Site

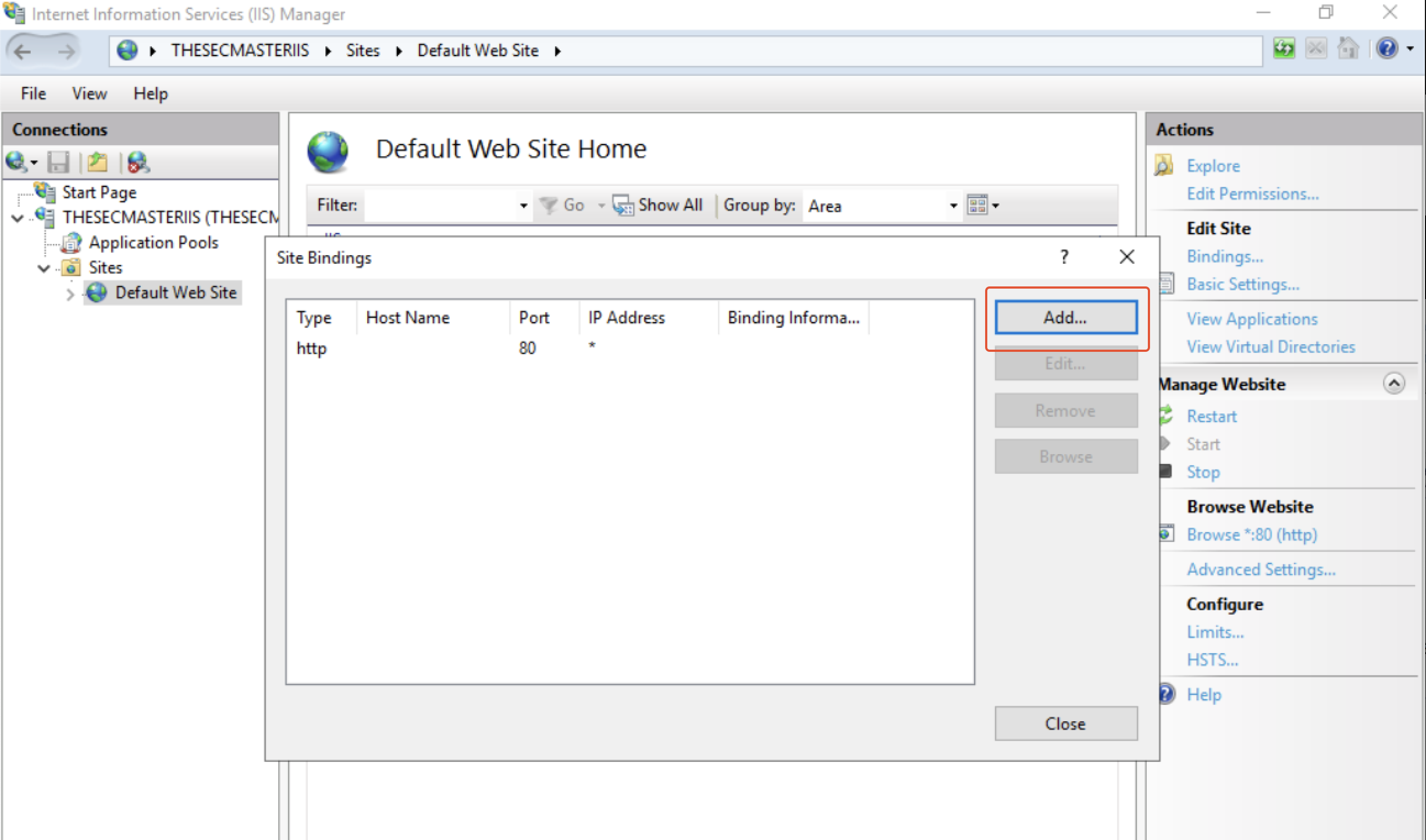

Step 14: Site Bindings – Add the certificate to the Bindings

In Site Binding Wizard, click on Add

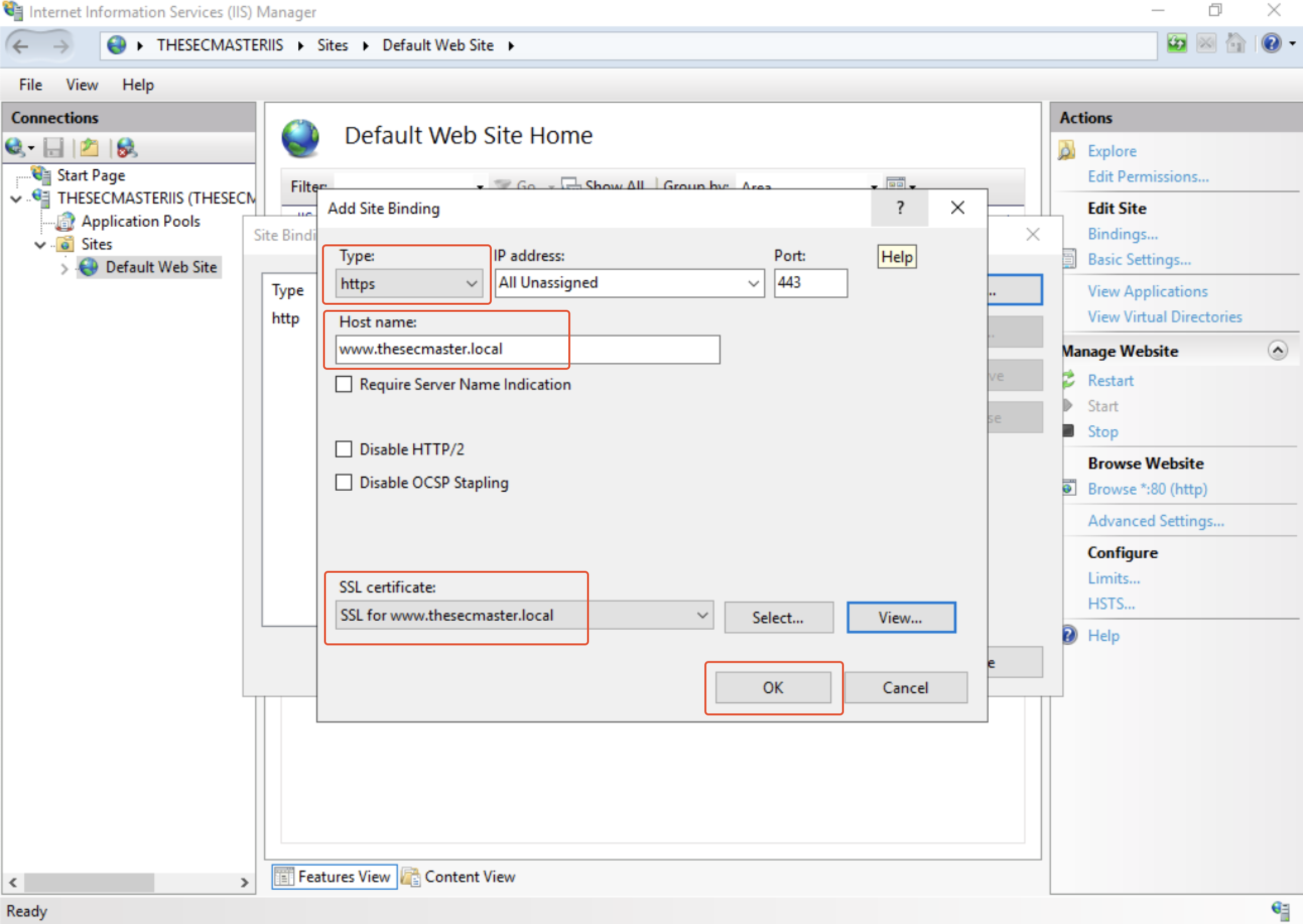

Step 15: Fill in the Site Binding details

Update Site Binding details as below,
Type: HTTP
Hostname: Web Site Name
SSL certificate: Select the appropriate certificate from the dropdown list. List contains all installed certificates in the certificate store
OK to complete

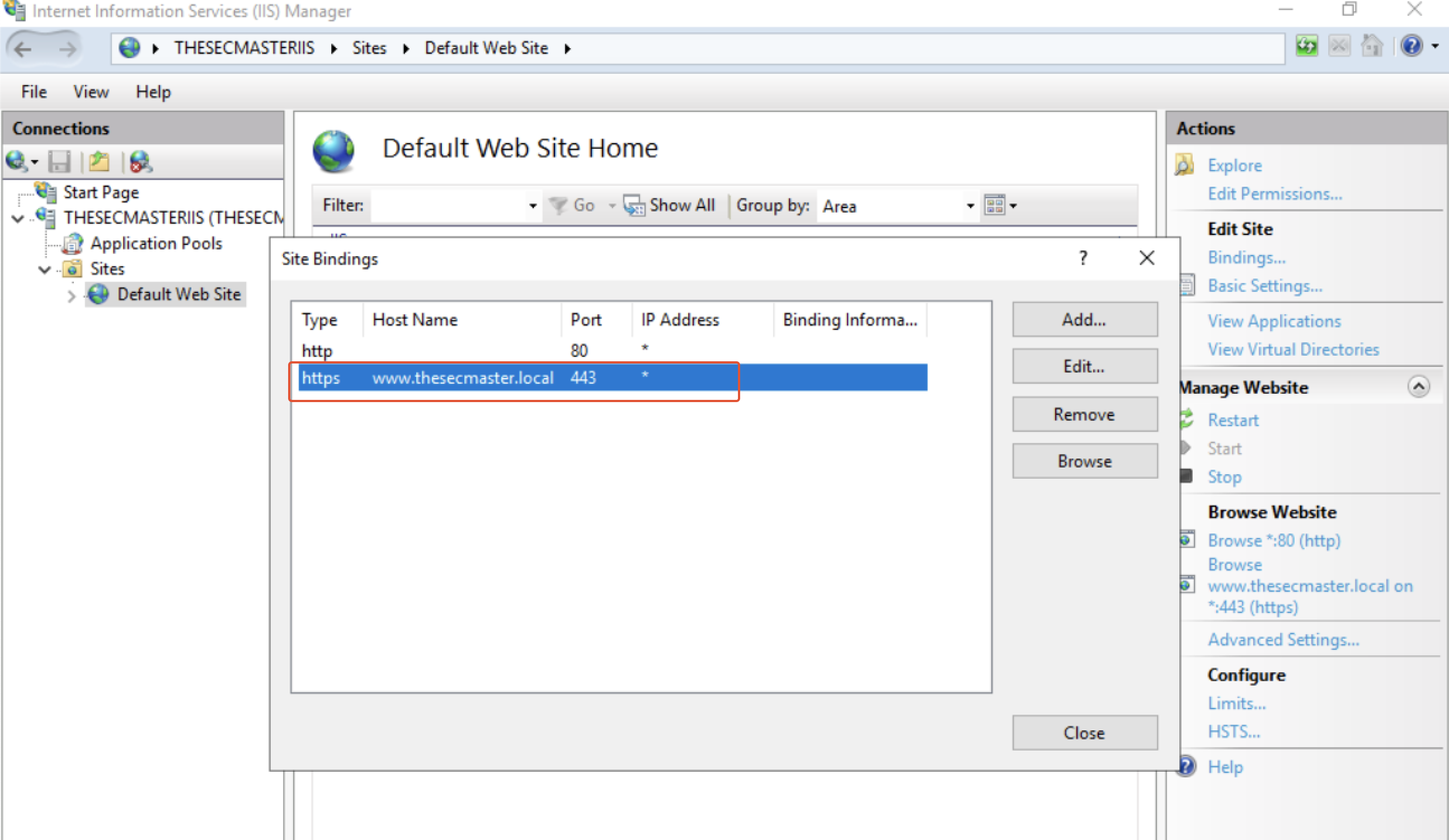

Step 16: Complete the Site Binding process in the IIS server

https’ is enabled for the website (Default Web Site). click OK to complete the wizard

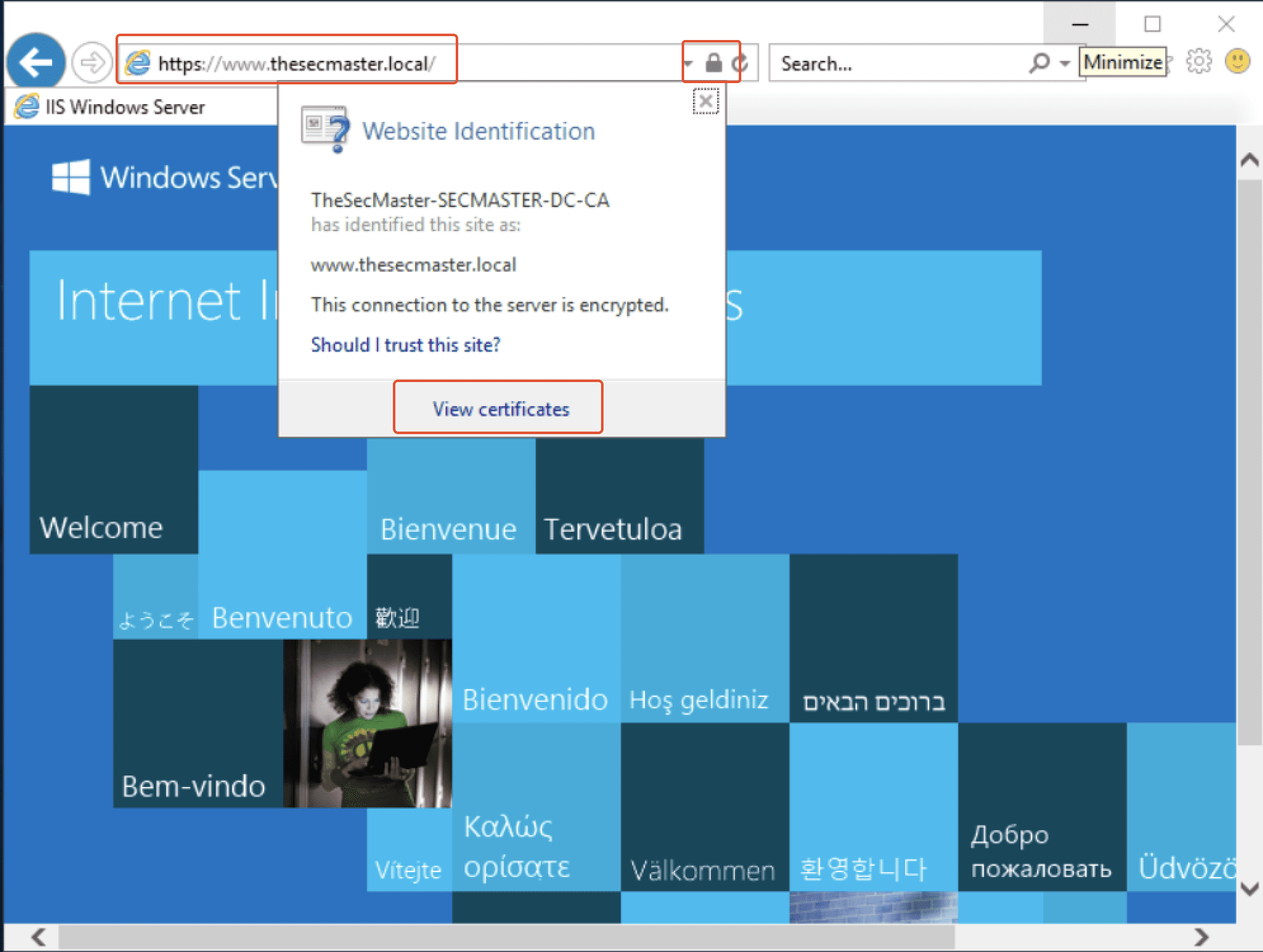

Step 17: Access Web application with ‘HTTPS’ protocol

Now website is opening with HTTPS and the connection is encrypted by the certificate issued by the Local ADCS server.

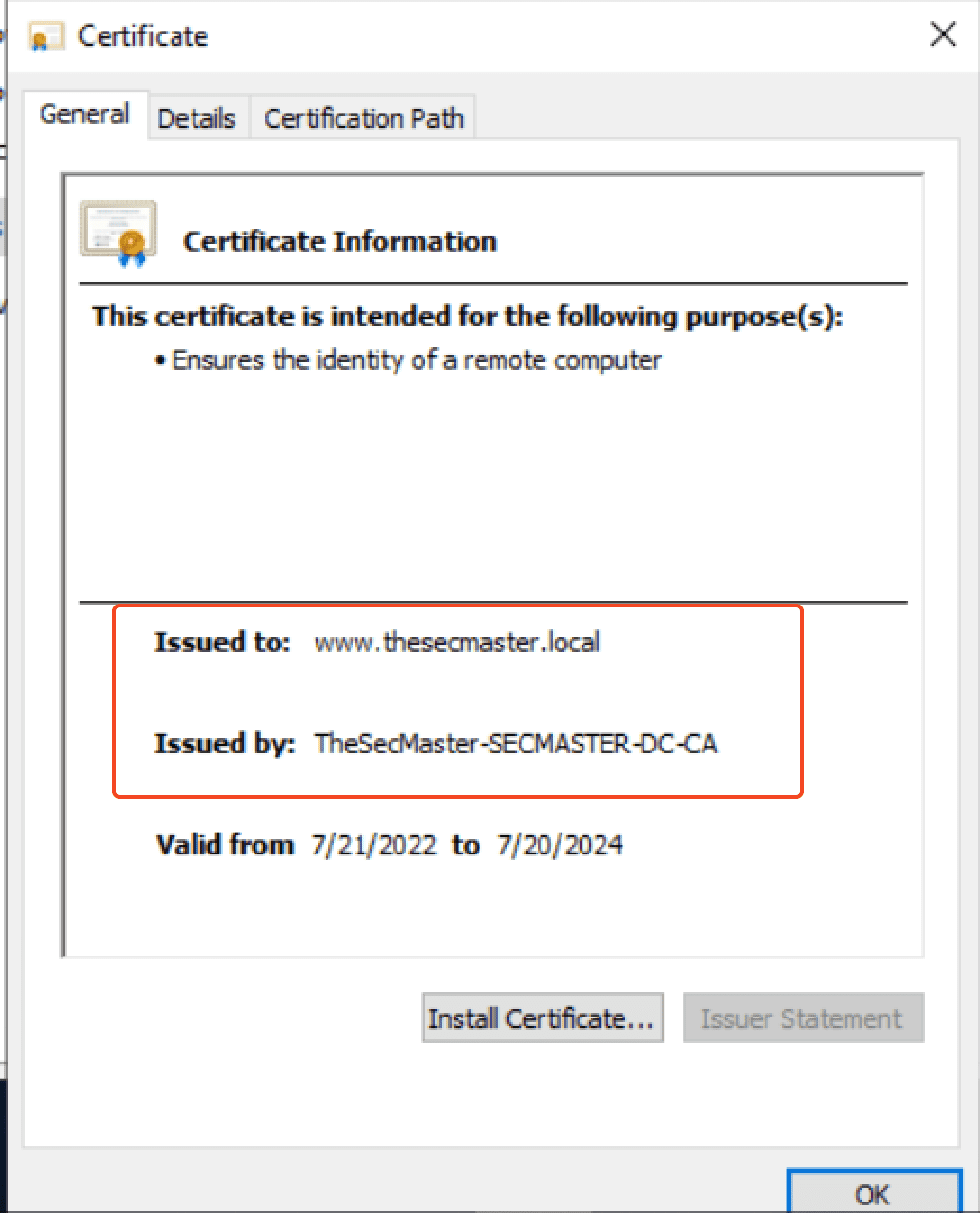

Step 18: View the Certificate to ensure you installed the correct certificate

This is how you can Install an SSL Certificate on the IIS Server.

We hope this post will show you step-by-step procedure to Install an SSL Certificate on the IIS Server. Please share this post and help to secure the digital world. Visit our social media page on Facebook, LinkedIn, Twitter, Telegram, Tumblr, Medium & Instagram, and subscribe to receive updates like this.
