How To Run Windows 11 On MAC Using VMWare Fusion

How To Run Windows 11 On Mac Using Vmware Fusion

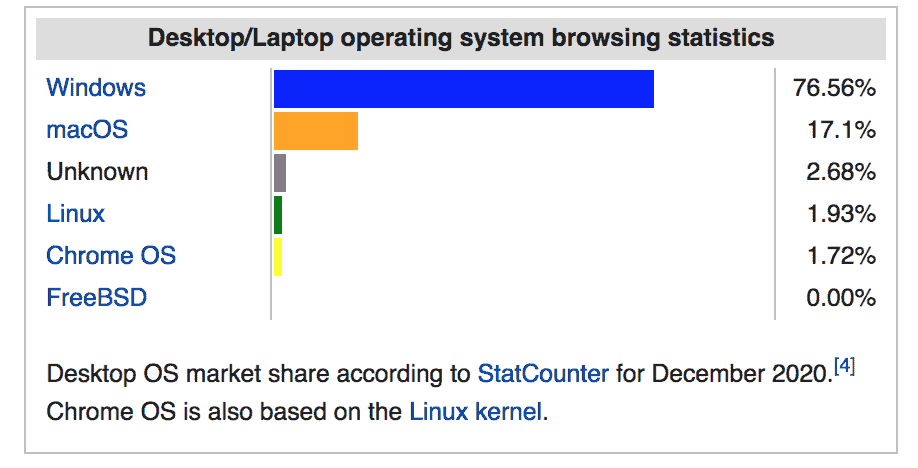

Let’s start this post with a discussion of why people want to run Windows on Mac. Well, there are many reasons for this. Apple is known for its quality products, and MacBooks are considered the best available laptops in the market. When it comes to the operating system, Mac is popular, but what about Windows? Windows is dominating. Windows has a larger community than any other operating system, especially in the gaming landscape. As per the report, more than 96% of gamers use Windows. In general, Windows tops the list. It has taken more than 76% of the market. Mac is ranked second with 17% of the market share. There are many people who want to buy a MacBook with Windows 11, the latest Windows operating system for desktop users. That is just possible only in dreams at this point in time. However, we are here to help you succeed in your dream. Well, there are many ways to run Windows 11 on a Mac. Don’t worry. We are here to show you how to run Windows 11 on Mac using VMWare Fusion. Let’s get started.

Microsoft introduced lots of security features to make Windows 11 secure more than any other Windows operating system. One such security feature is TPM. To run Windows 11, it is necessary to have a TPM v2.0 (Trusted Platform Module) hardware module on your computer. Since we are dealing with a Virtual Machine in this scenario, no need to worry so much. VMWare has a couple of workarounds to run Windows 11 on Mac using VMWare platforms like VMWare Fusion. Thanks to VMWare for this wonderful workaround.

Reasons To Run Windows On Mac:

If you’re a Mac user, there are plenty of reasons to run Windows on your Mac. Whether you need to use specific Windows-only software for work or you want to take advantage of the stability and performance of a Mac, running Windows 11 on your Mac is a great solution. Here are five reasons to do it.

  1. There are users who need both Mac & Windows to manage their work.

  2. Newly migrated users from Windows to Mac or Mac to Windows want to run Windows on Mac.

  3. Mac provides the best hardware, but Windows is the most popular.

  4. Gamers may want to run Windows on Mac as most games support only Windows.

  5. You can get the best of both worlds with a Mac/Windows hybrid.

Prerequisites To Run Windows 11 On Mac:

Basically, you need a Windows 11 ISO image, VMware Fusion with a free license, and of course a MacBook. That’s all.

  1. Windows 11 ISO image: It is a must to have a Windows ISO image. Visit the Microsoft web page to download the Windows 11 ISO image. Click here to download.

  2. VMware Fusion player: The VMWare team is offering a free license for personal use. Click here to register and download the VMware Fusion player with a license. Please don’t ignore to verify the compatible version of VMware Fusion.

  3. MacBook: A MacBook with a minimum of 8GB of RAM and 250 GB of storage disc is required. We recommend having 16GB of RAM and 256 GB of storage. Because you may need 4 GB of RAM and 100 GB of storage to run a VM (Virtual Machine). There is a dependency on Intel processors, you can’t run Windows x86 on an M1 chip.

How to Run Windows 11 on MAC using VMWare Fusion?

Let’s begin the actual post for which you are here. Let’s see how to run Windows 11 on Mac using VMWare Fusion. We presumed that you have installed VMWare Fusion on your Mac. If you feel you need assistance in installing VMWare Fusion on mac, please visit this post.

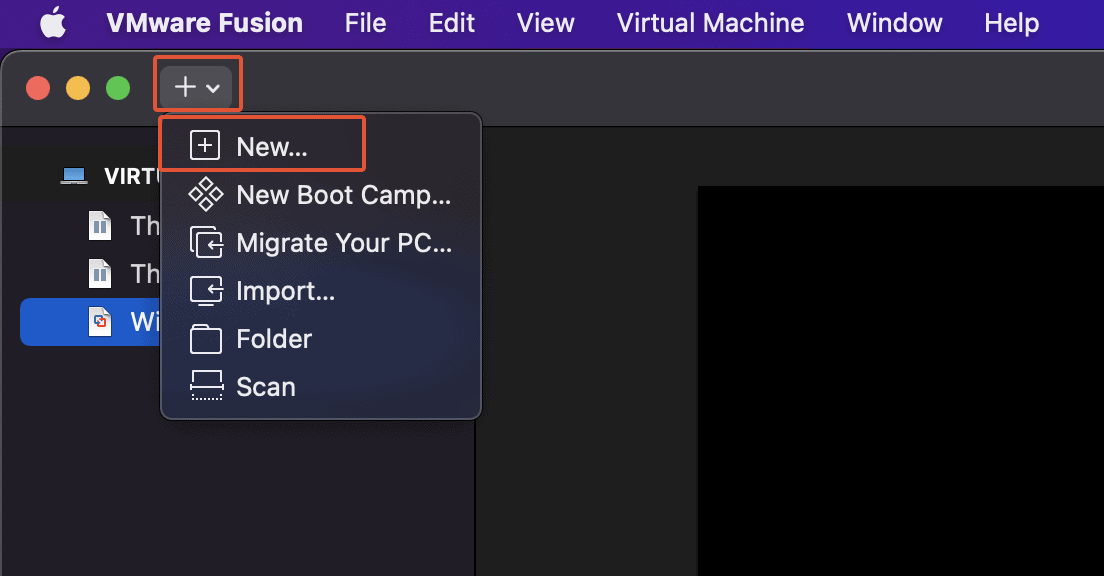

Step 1: Create a New VM for Windows 11 on VMWare Fusion

Let’s create a new Virtual Machine on VMware Fusion.Open Virtual Machine Library –> Click on ‘+‘ –> In the drop-down list Click on ‘New‘.

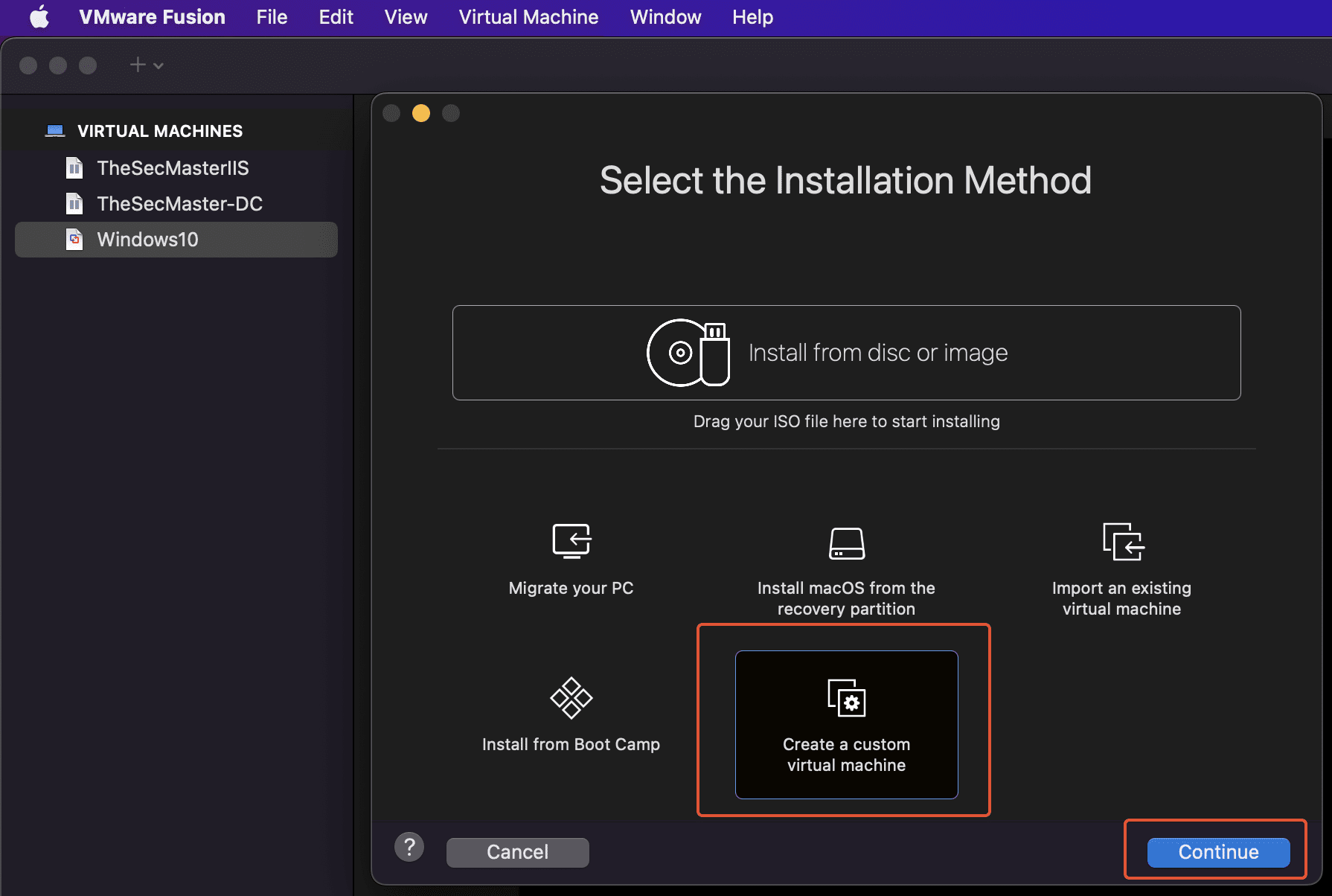

Step 2: Select the Virtual Machine Installation Method in VMWare Fusion

New VM Installation Wizard opens and Lists of Installation Methods. Click on ‘Create a custom virtual Machine‘ and click on ‘Continue’.

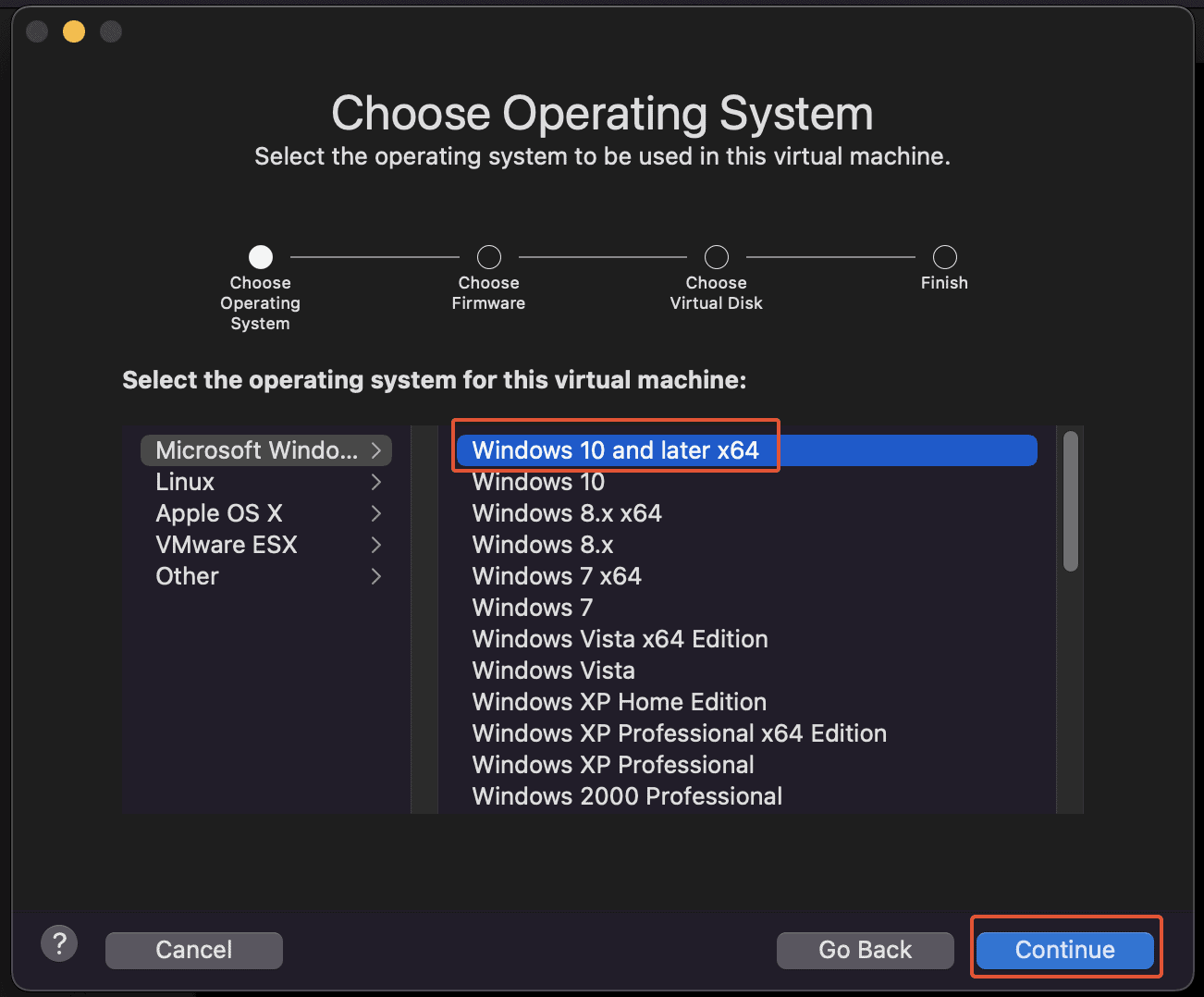

Step 3: Choose the Operating System to be used in this Virtual Machine

Select  ‘Microsoft Windows’, since Windows 11 is not made available in VMware, select the latest Client Operating System ‘Windows 10 and later x64‘ and click on ‘Continue‘.

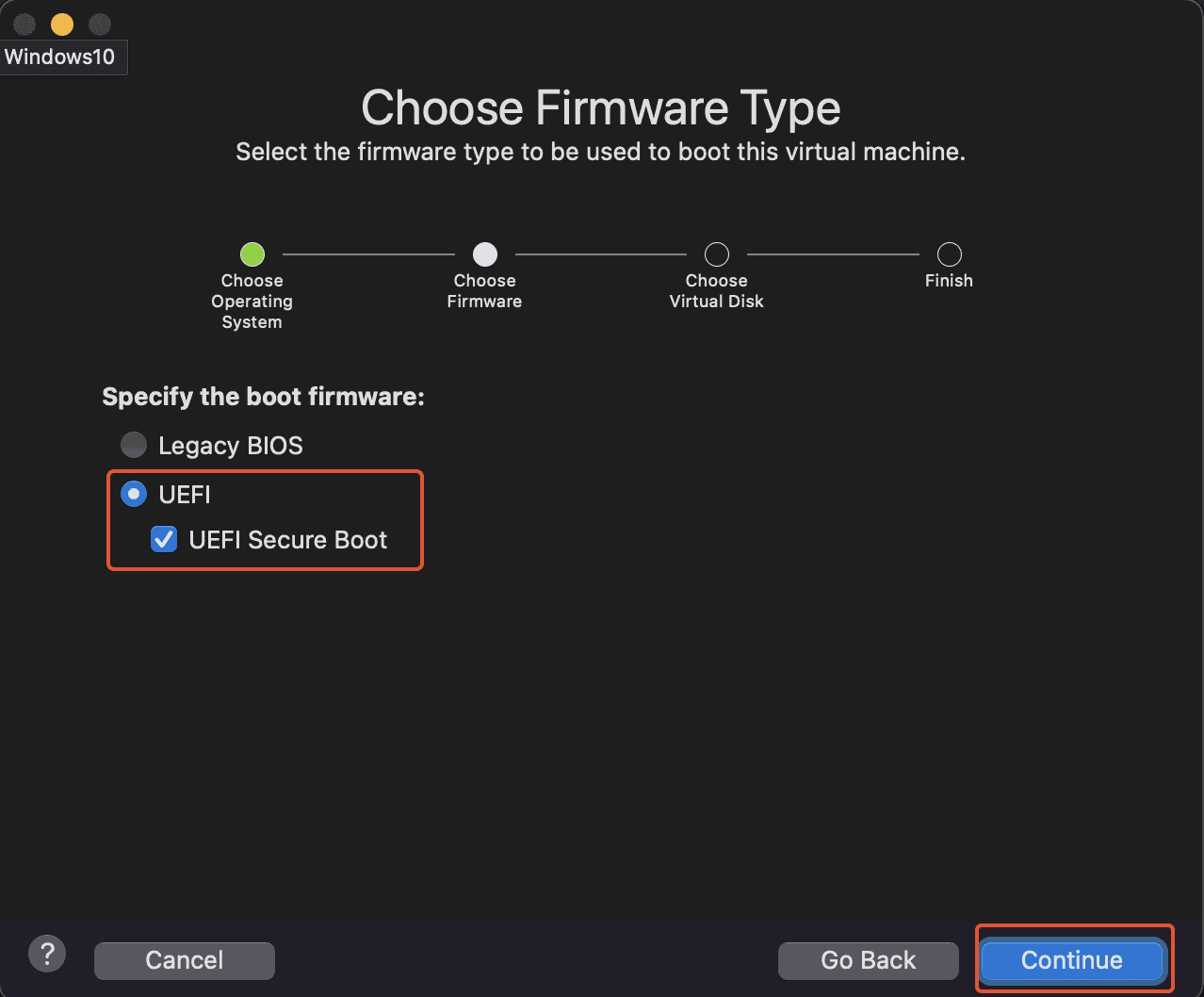

Step 4: Choose Firmware Type to Boot the Virtual Machine

Select the Boot firmware as ‘UEFI‘ and select ‘UEFI Select Boot‘. Click on ‘Continue

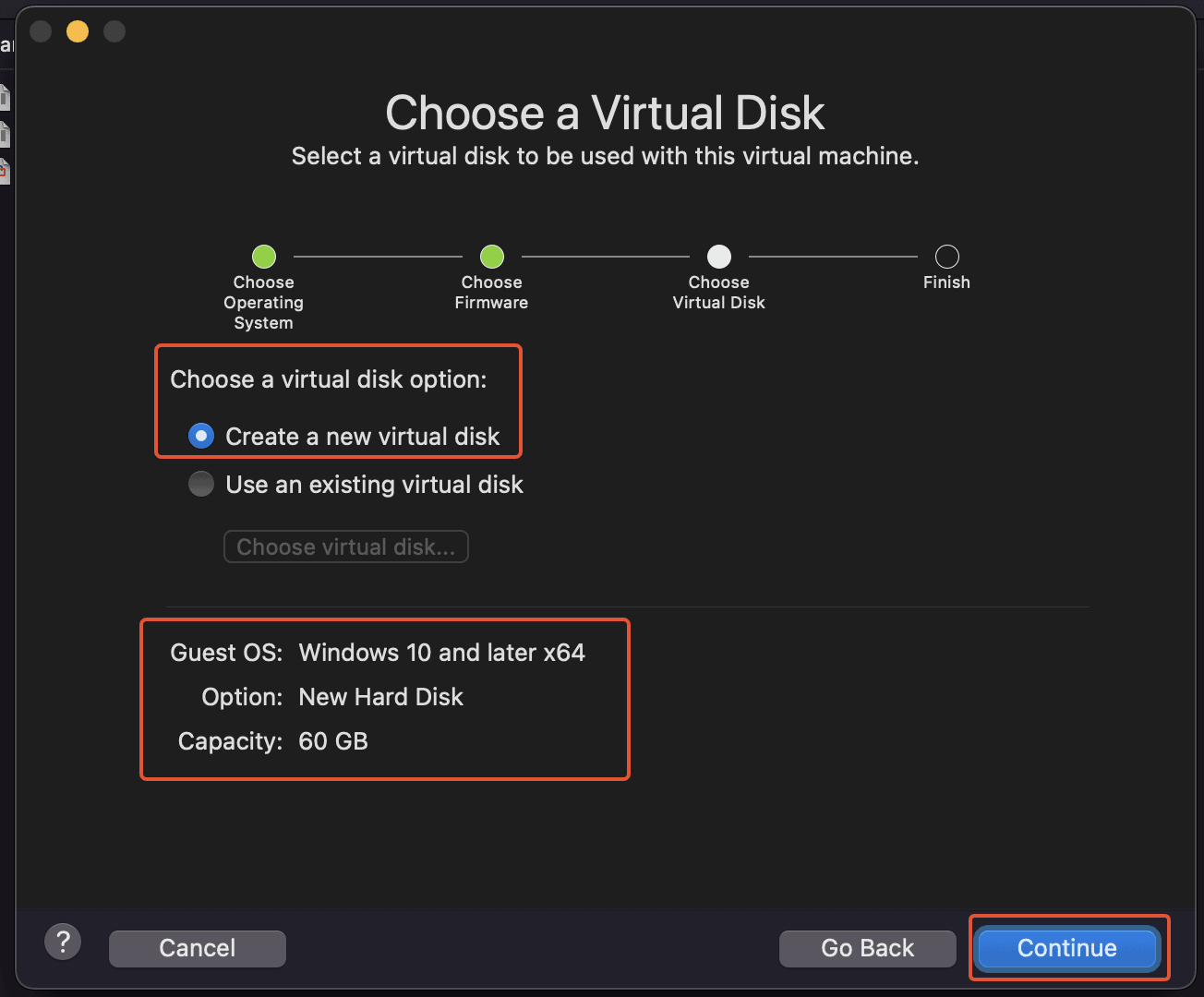

Step 5: Select the Virtual Disk to be used in this Virtual Machine

Select ‘Create a new virtual disk‘  and click on ‘Continue‘.

Step 6: Take a Look at the Virtual Machine Summary

For Modification, Click on ‘Customize Settings’.

Step 7: Save the VM with a name

Rename the VM as ‘Windows 11’ and click on ‘Save’ again click on ‘Finish’ to complete the wizard

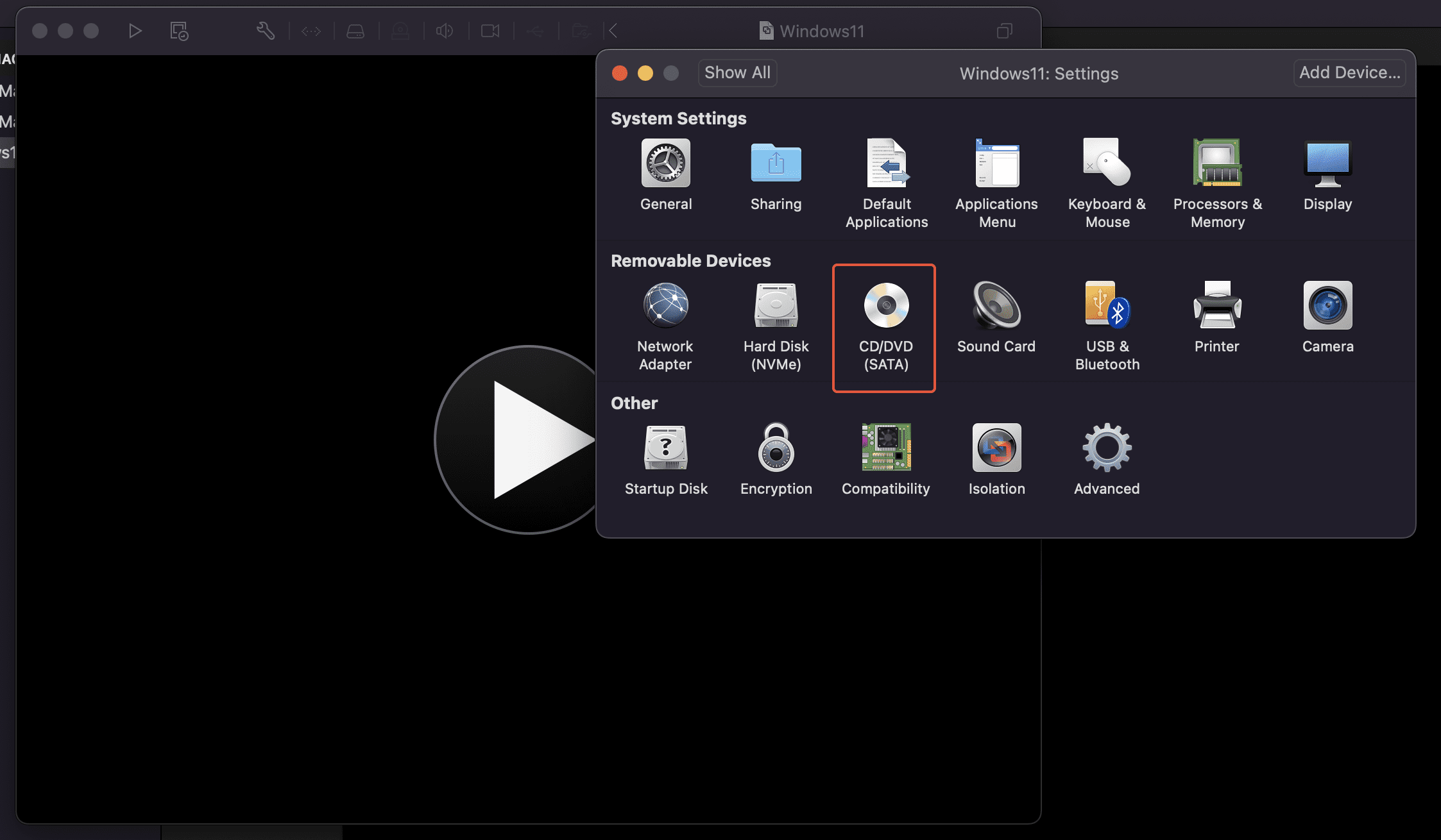

Step 8: Mount CD/DVD(SATA on VMWare Fusion

Open for VM settings, and click on ‘CD/DVD(SATA)‘ to import the downloaded Windows 11 ISO image.

Step 9: Import Windows 11 ISO image to CD/DVD(SATA on VMWare Fusion

Select ‘Connect CD/DVD Drive’ and browse the ISO file. Click on ‘Show All’.

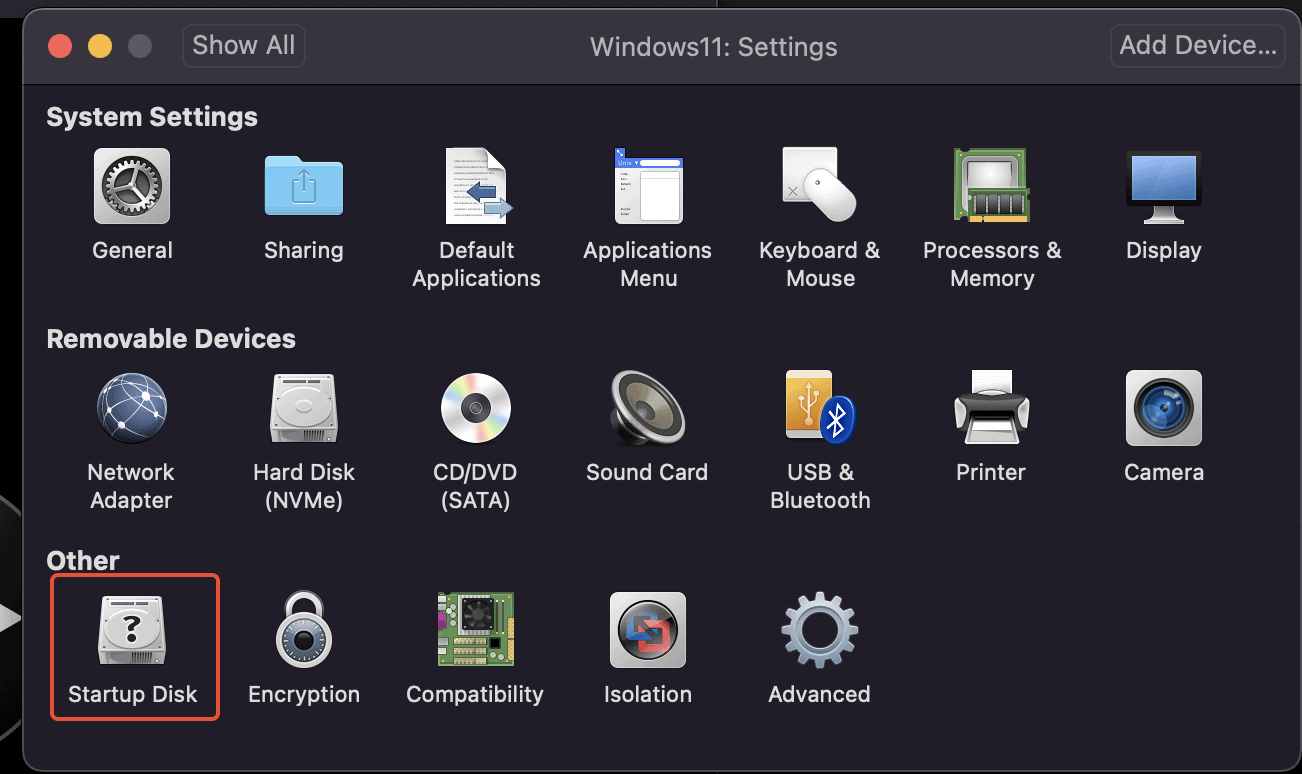

Step 10: Choose the Startup Disk to Boot Windows 11

Click on ‘Startup Disk’ to change the Startup Disk of the VM.

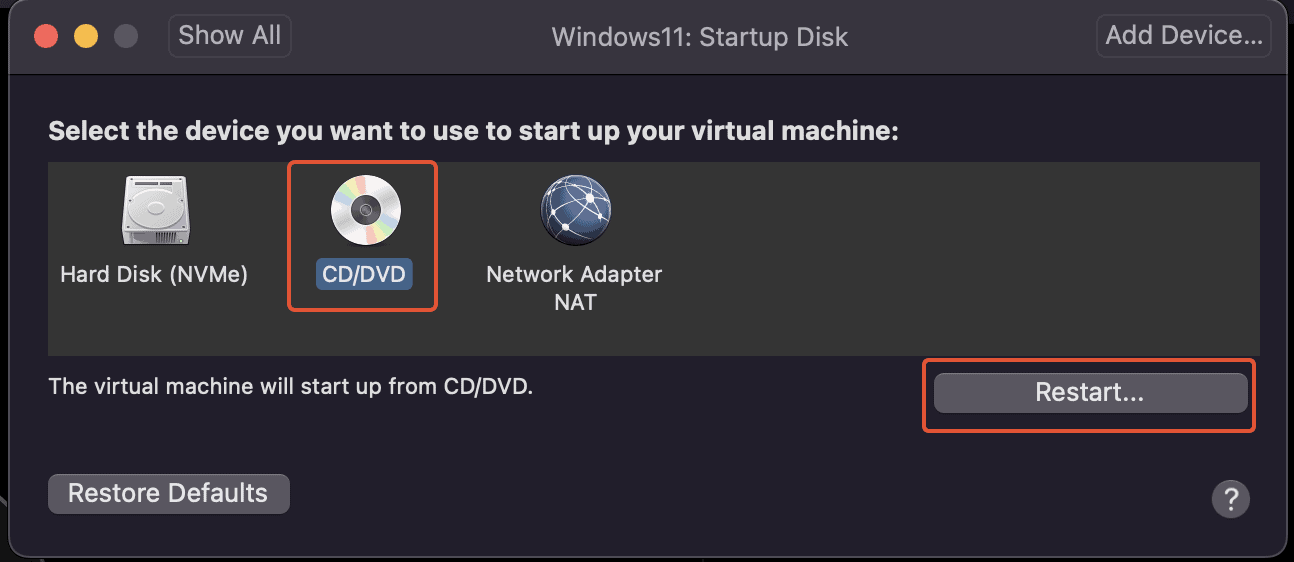

Step 11: Power On the VM on VMWare Workstation

Select ‘CD/DVD’ and click on ‘Restart’ to Start the VM with mounted ISO image.

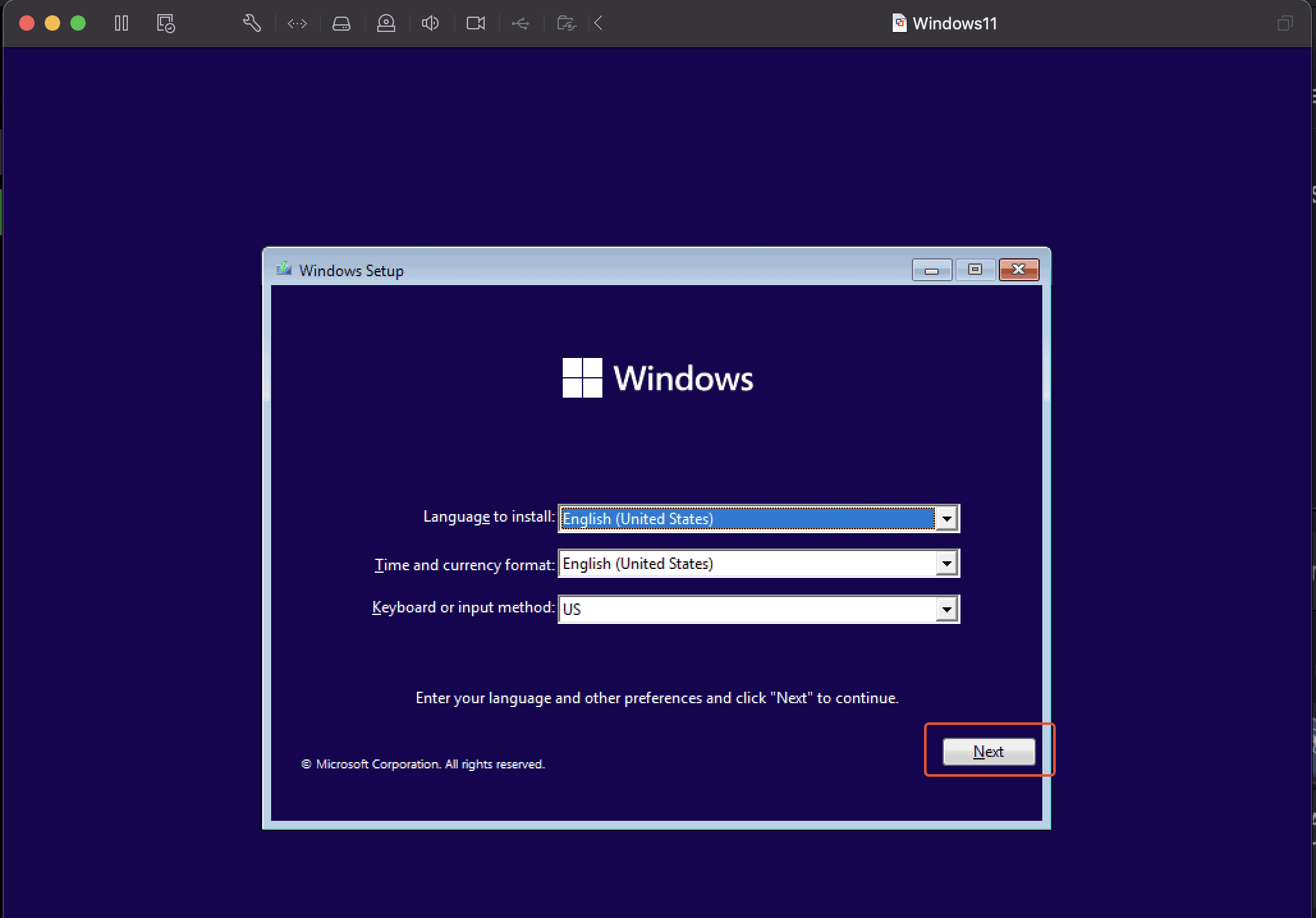

Step 12: Begin the Installation of Windows 11 on VMWare Fusion

As soon as the VM is powered on Windows 11 Installation will get started from the ISO image stored on CD/DVD. Select Language, Time Zone, and Keyboard, and click on ‘Next‘.

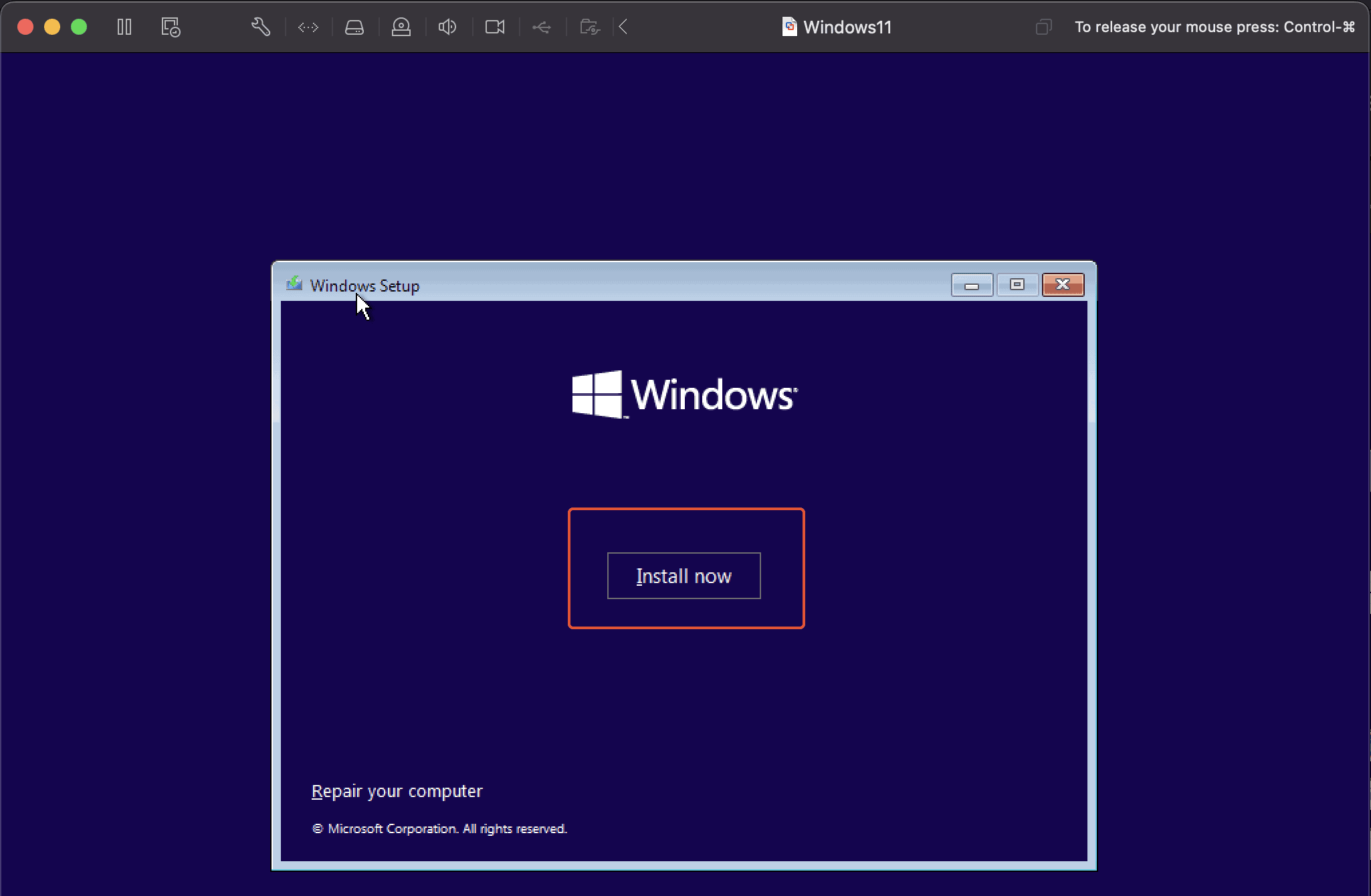

Step 13: Click on the ‘Install Now’ Button to begin the installation of Windows 11 on VMWare Fusion on Mac

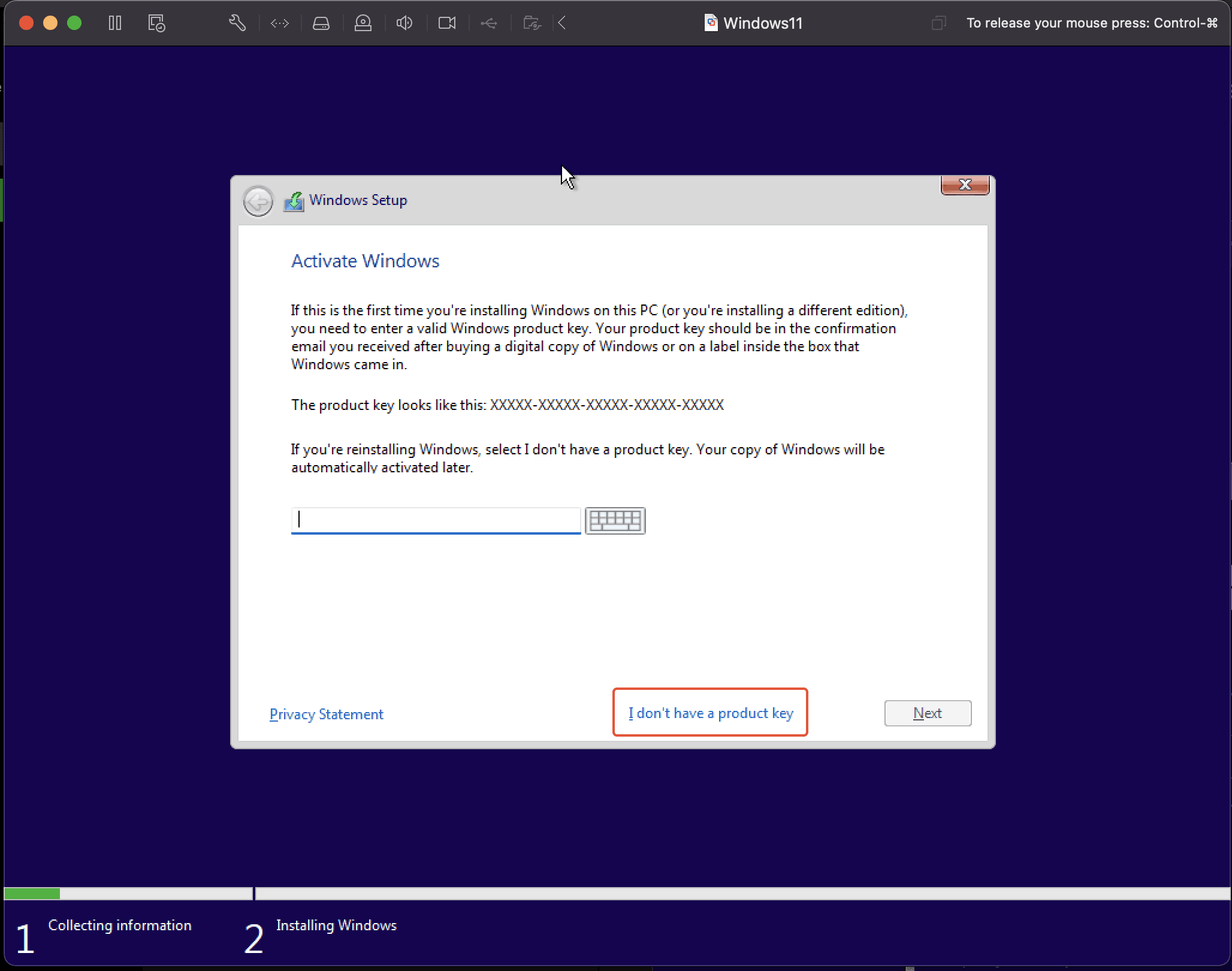

Step 14: Enter the Product Key

Update the valid Product Key (if you have one). You can Activate Windows with Product Key even after OS installation. Click on ‘I Don’t have a product key‘ if you want to continue without the product key.

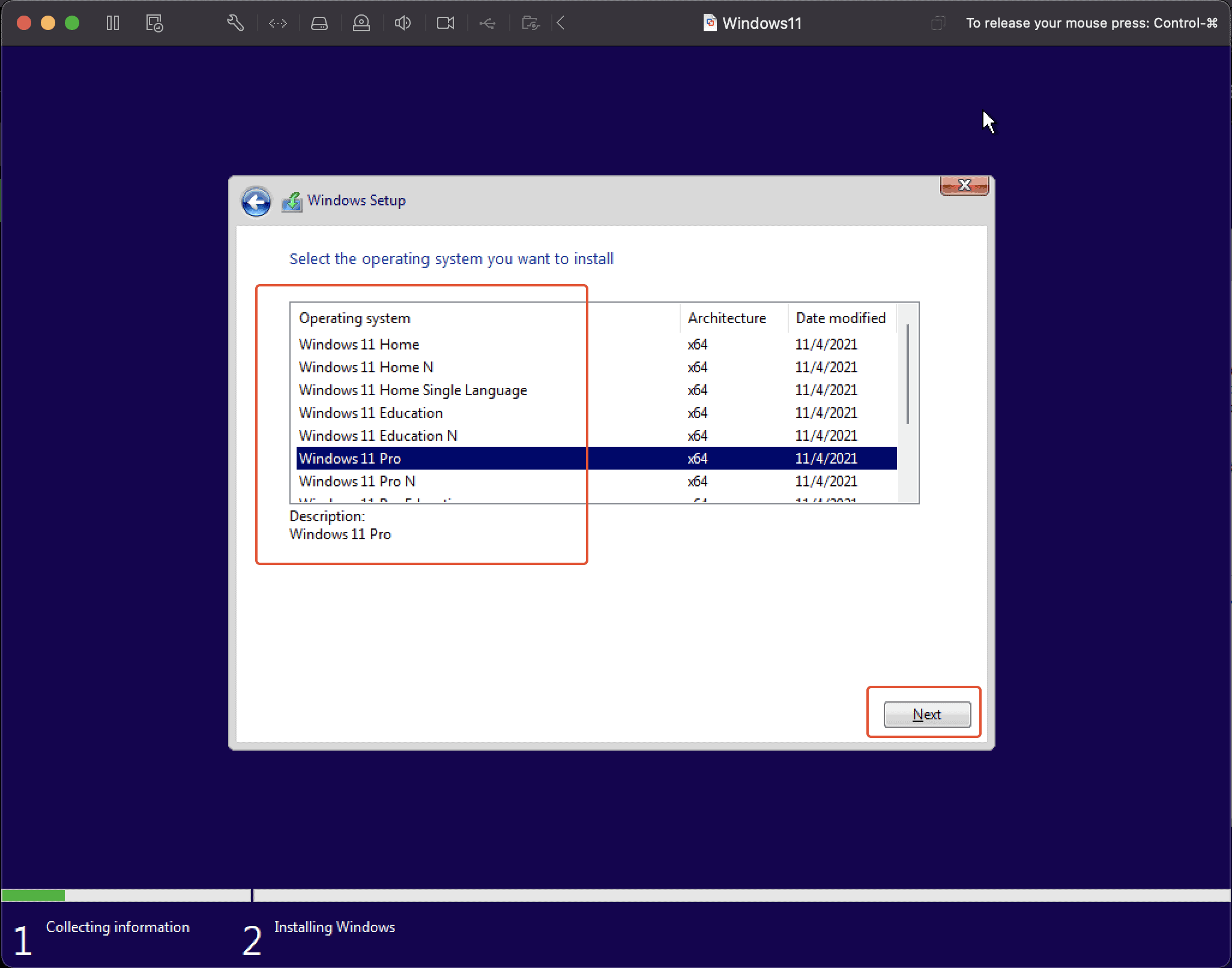

Step 15: Select the Versions of Windows 11 to Install

Select the Version of Windows 11 to install and click on ‘Next‘.

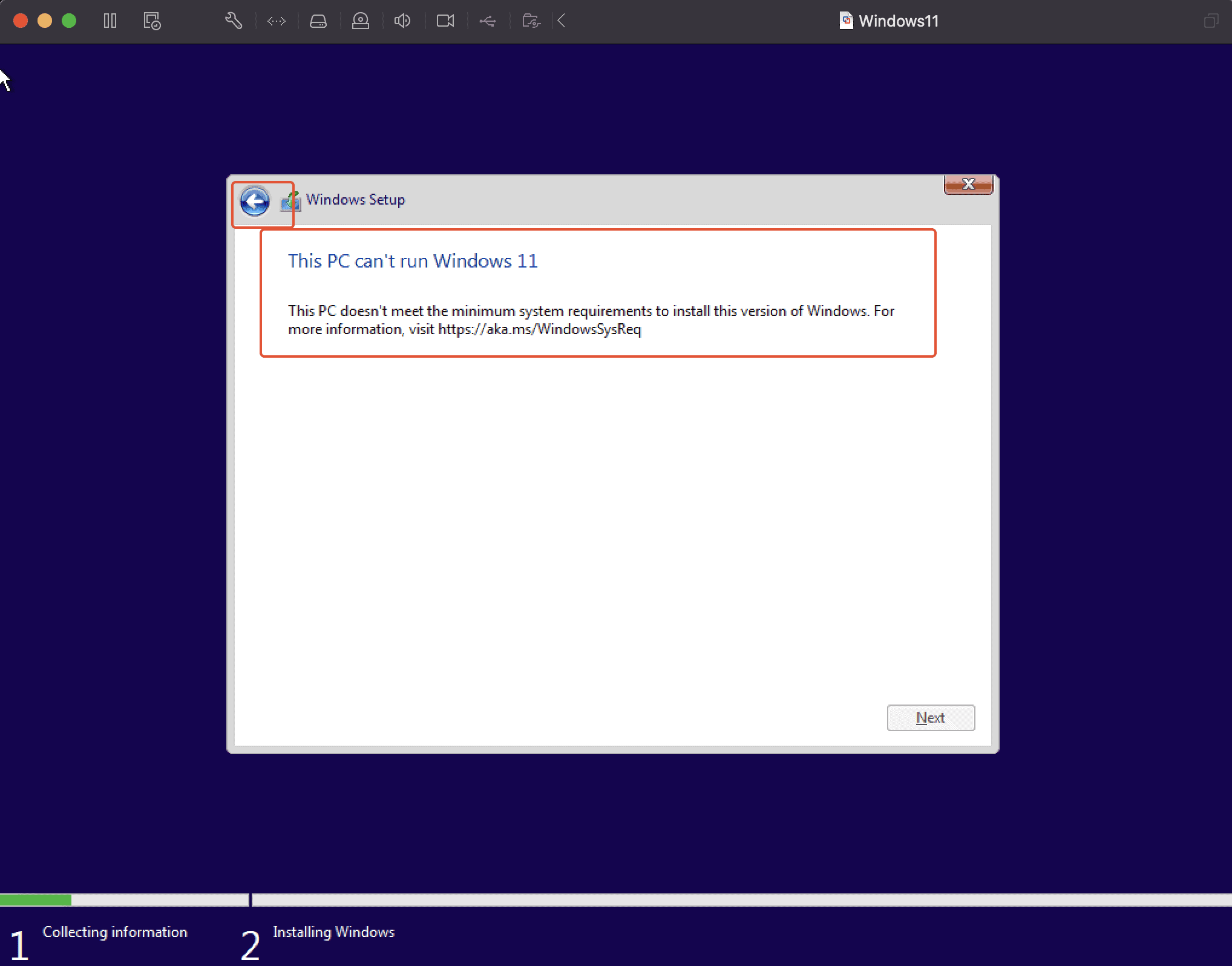

Step 16: Error Message will Appear “This PC can’t run Windows 11”

This error will appear due to System Requirement Failure and get the below message. Click on ‘Back‘ to go back to the OS Versions selection window.

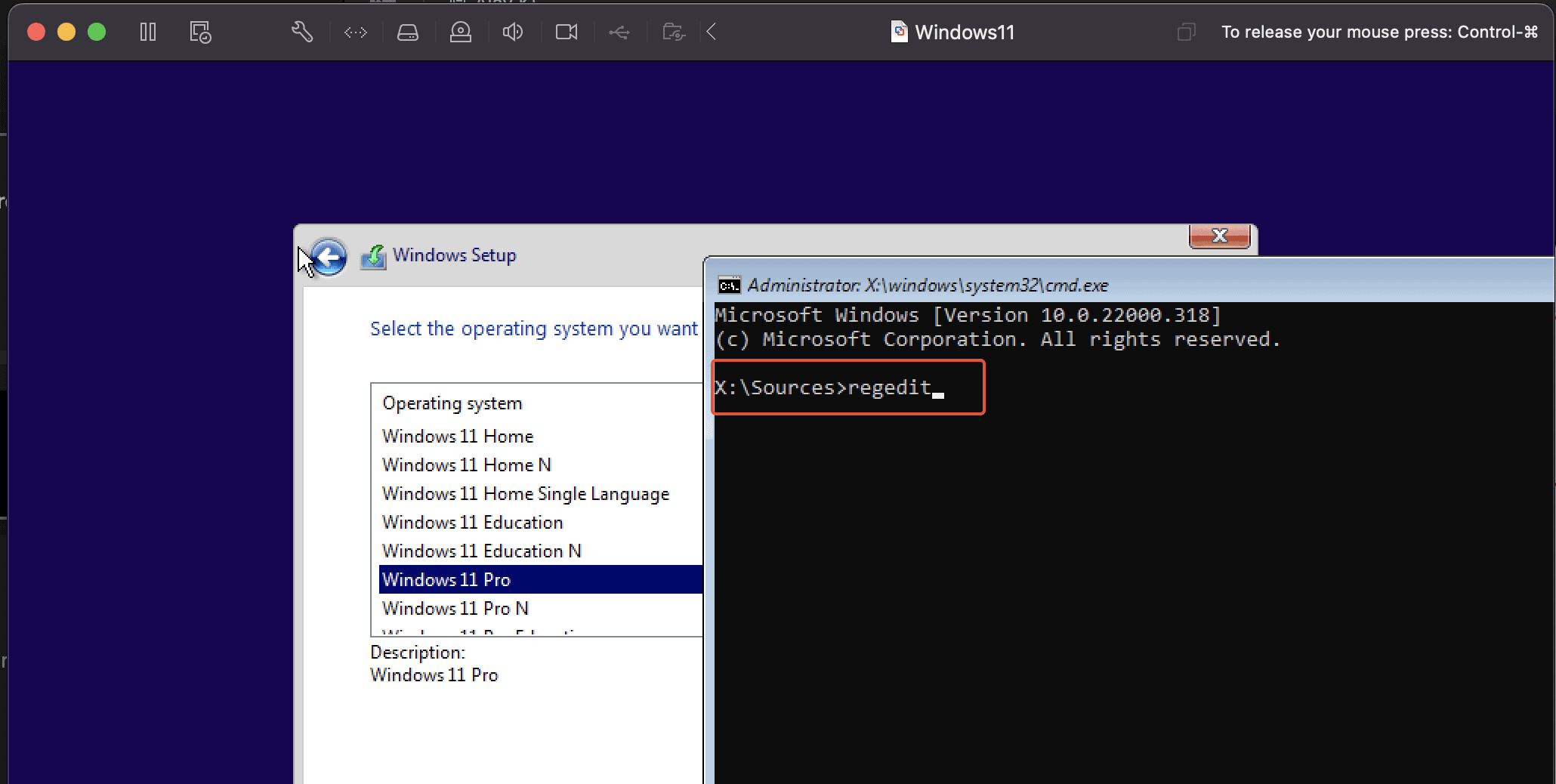

Step 17: Create Registry Keys to bypass the System Requirement Validation which helps to Install Windows 11

Click on the ‘Shift + fn + F10′ keys simultaneously on the keyboard to open the CMD window. Type ‘regedit‘  and click on ‘Enter‘ to open Registry Editor.

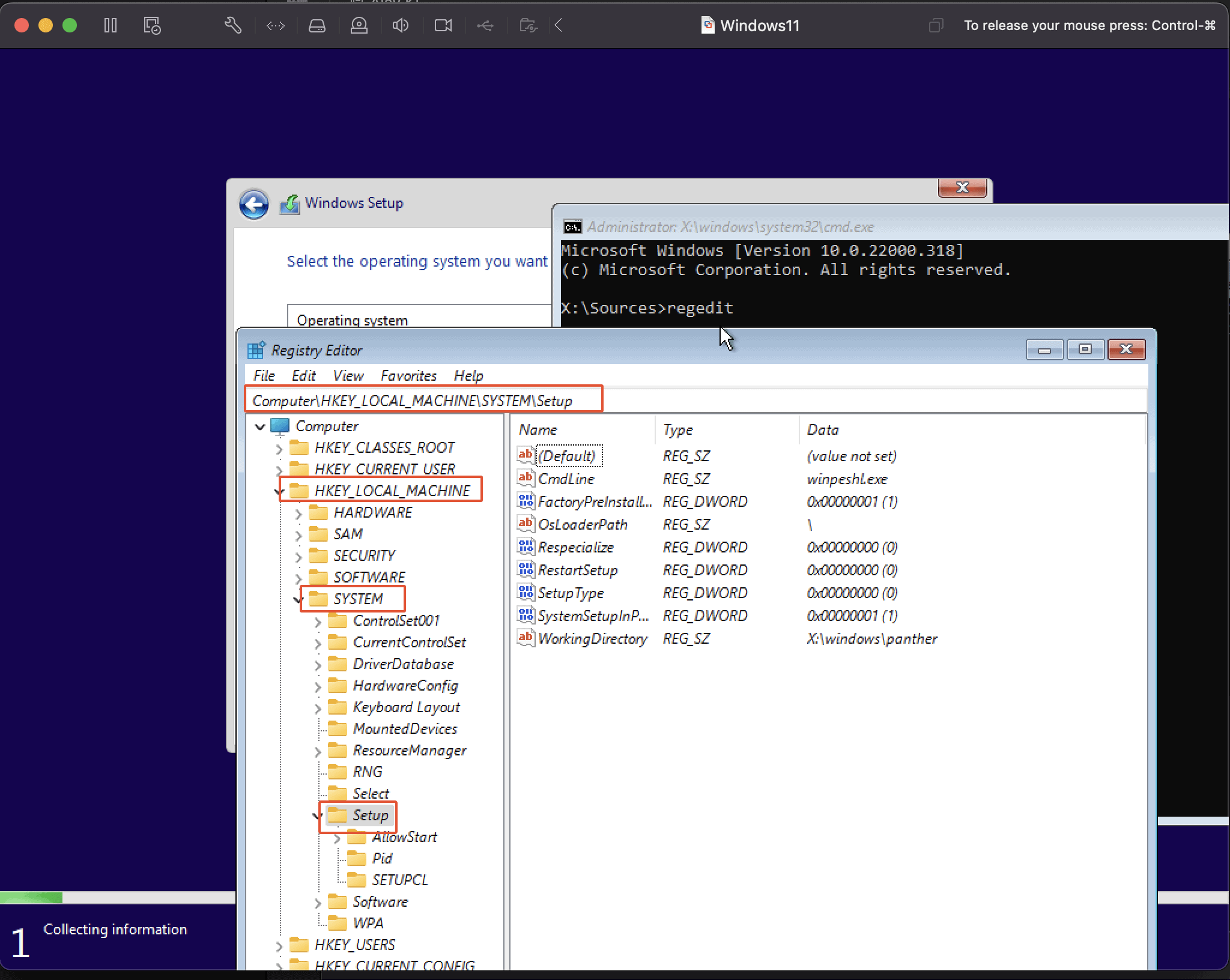

Step 18: In Registry Editor, navigate to ‘Computer\HKEY_LOCAL_MACHINE\SYSTEM\Setup‘.

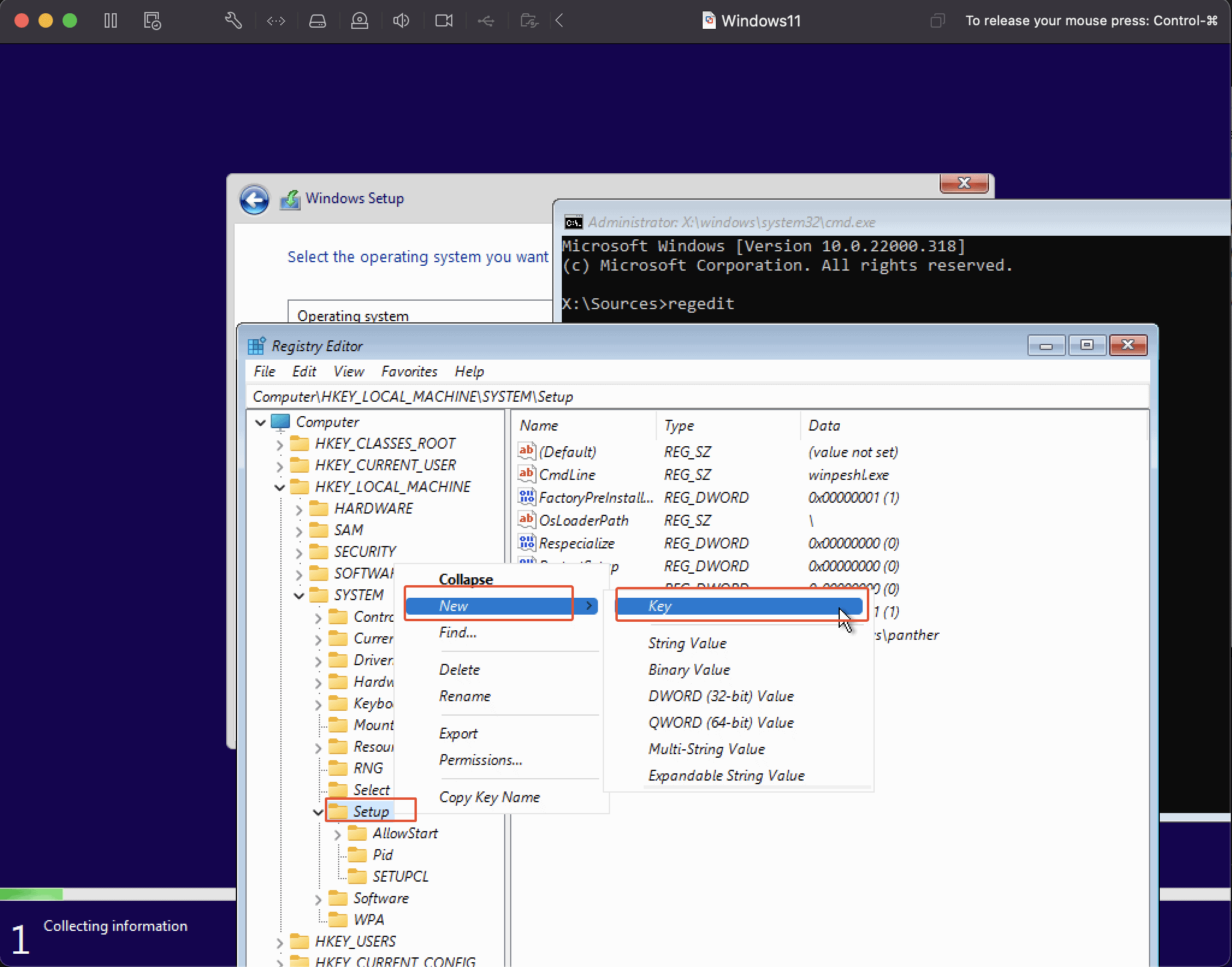

Step 19: Create a New Key ‘LabConfig’ under the key ‘Setup’

To create a New key, Right click on ‘Setup‘ –> Select ‘New‘ –> Select ‘Key‘ –> Rename to ‘LabConfig

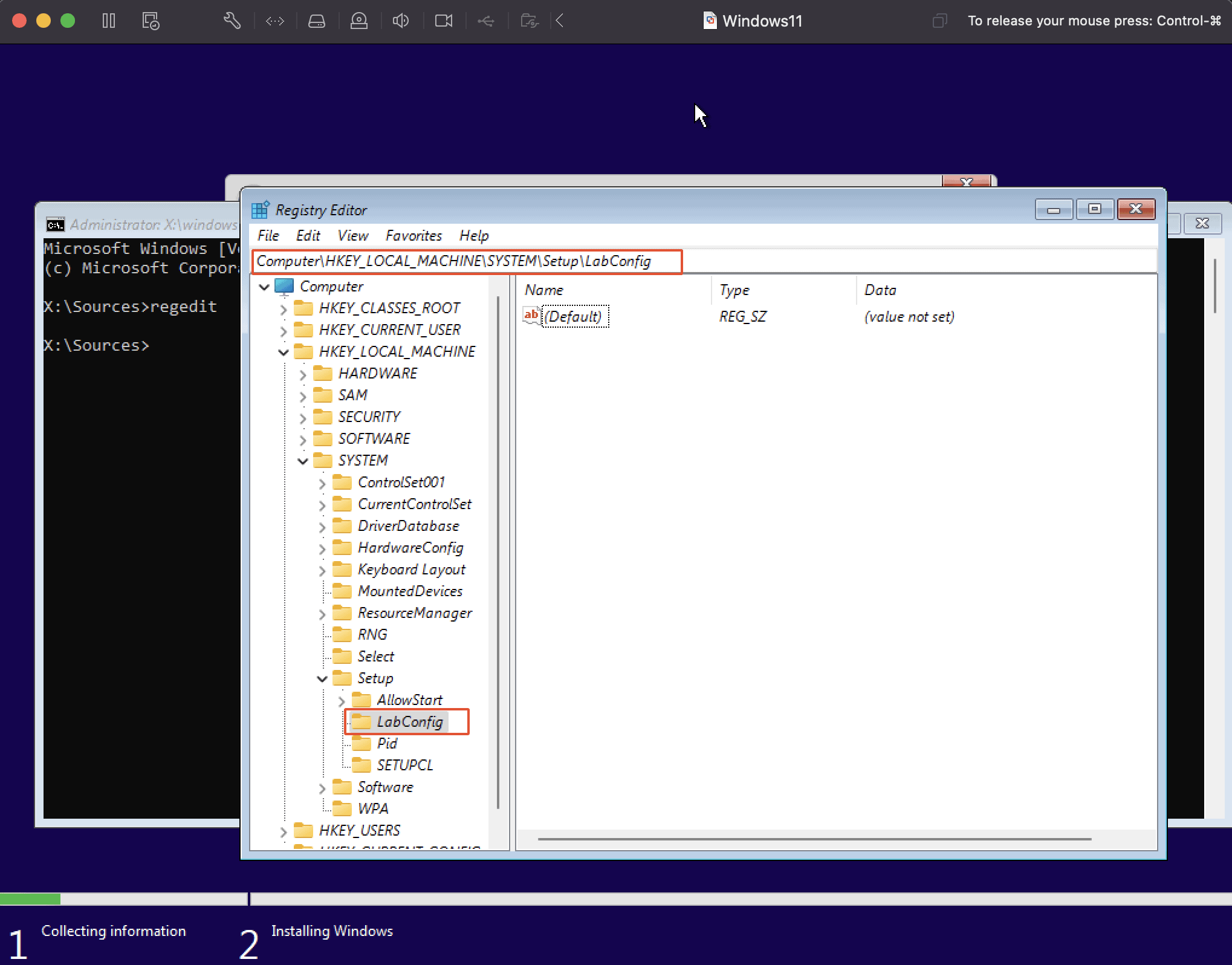

Step 20: A New Key ‘LabConfig’ is created under the key ‘Setup’

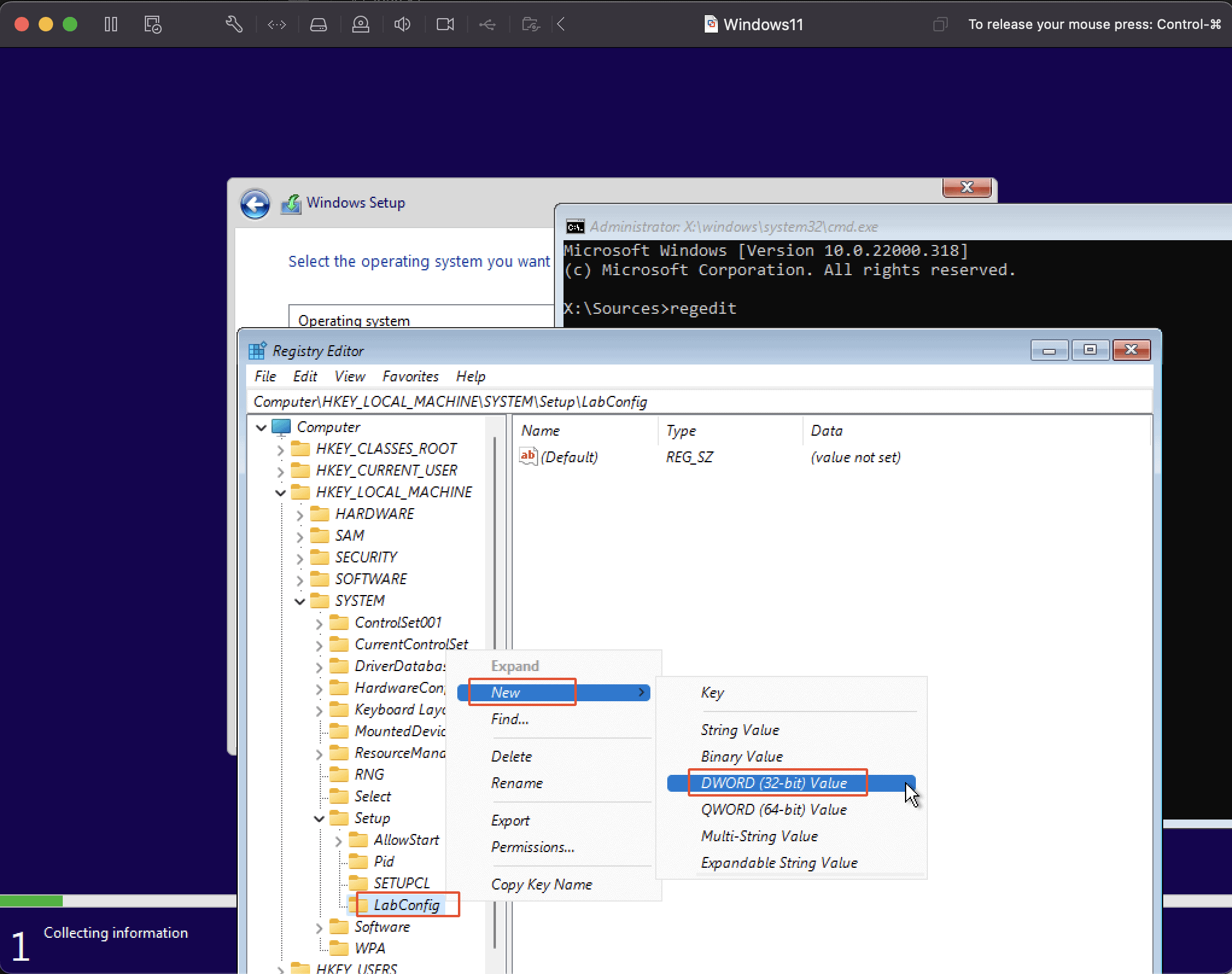

Step 21: Create 4 Bypass Entries under key ‘LabConfig’ to Bypass System Requirement Validation

Right-click on the newly created ‘LabConfig‘ key and select ‘New‘ –>DWORD (32-bit) Value –> Rename to ‘BypassTPMCheck‘.

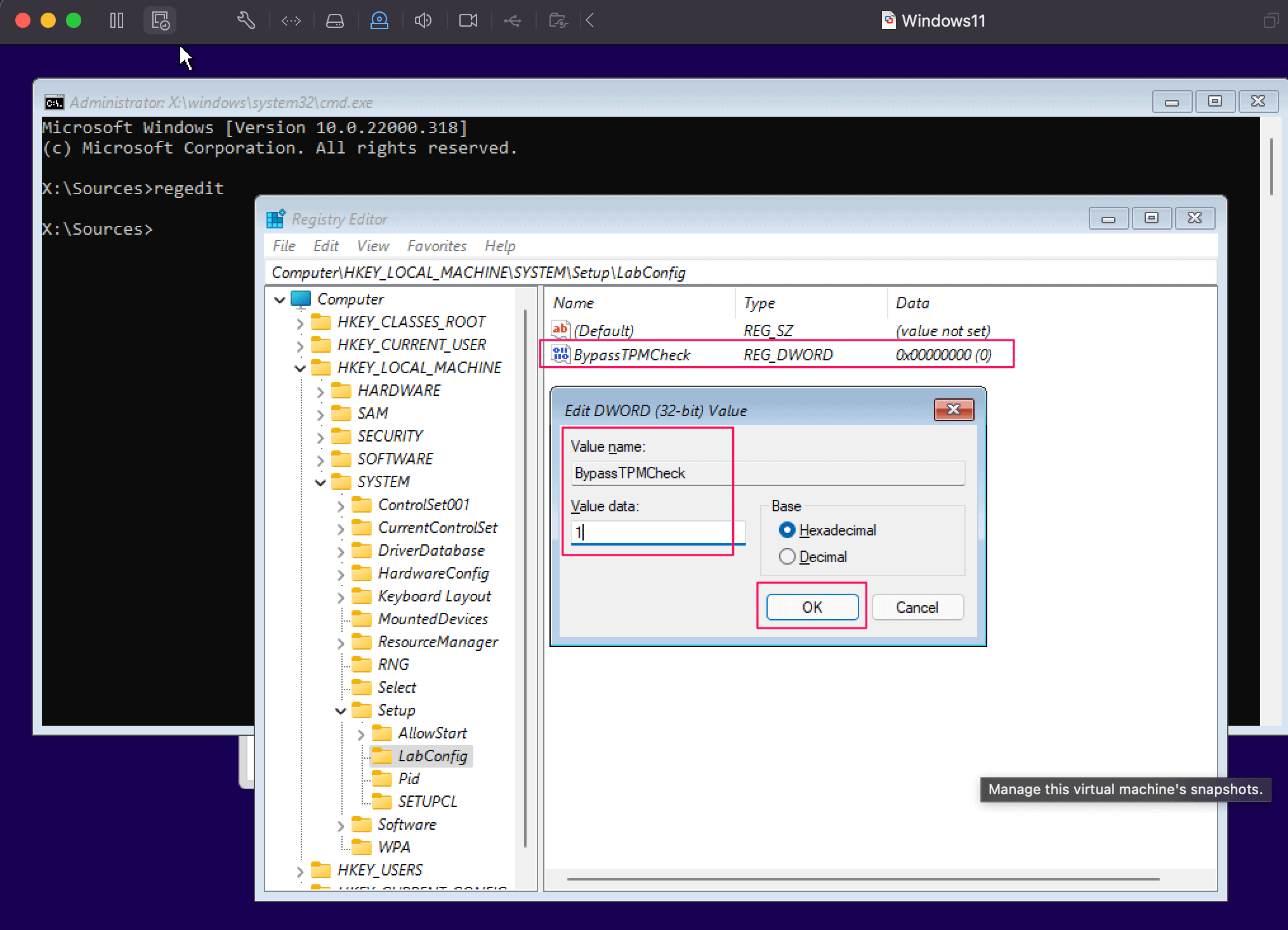

Step 22: Configure ‘BypassTPMCheck Registry Key To Disable TPM Check in the Windows 11 installation Process

Double click on ‘BypassTPMCheck‘ and change the Value date to ‘1‘ and select Base as ‘Hexadecimal‘ –> click ‘OK‘.
Note: By Enforcing the value to 1, we have disabled the TPM check successfully.

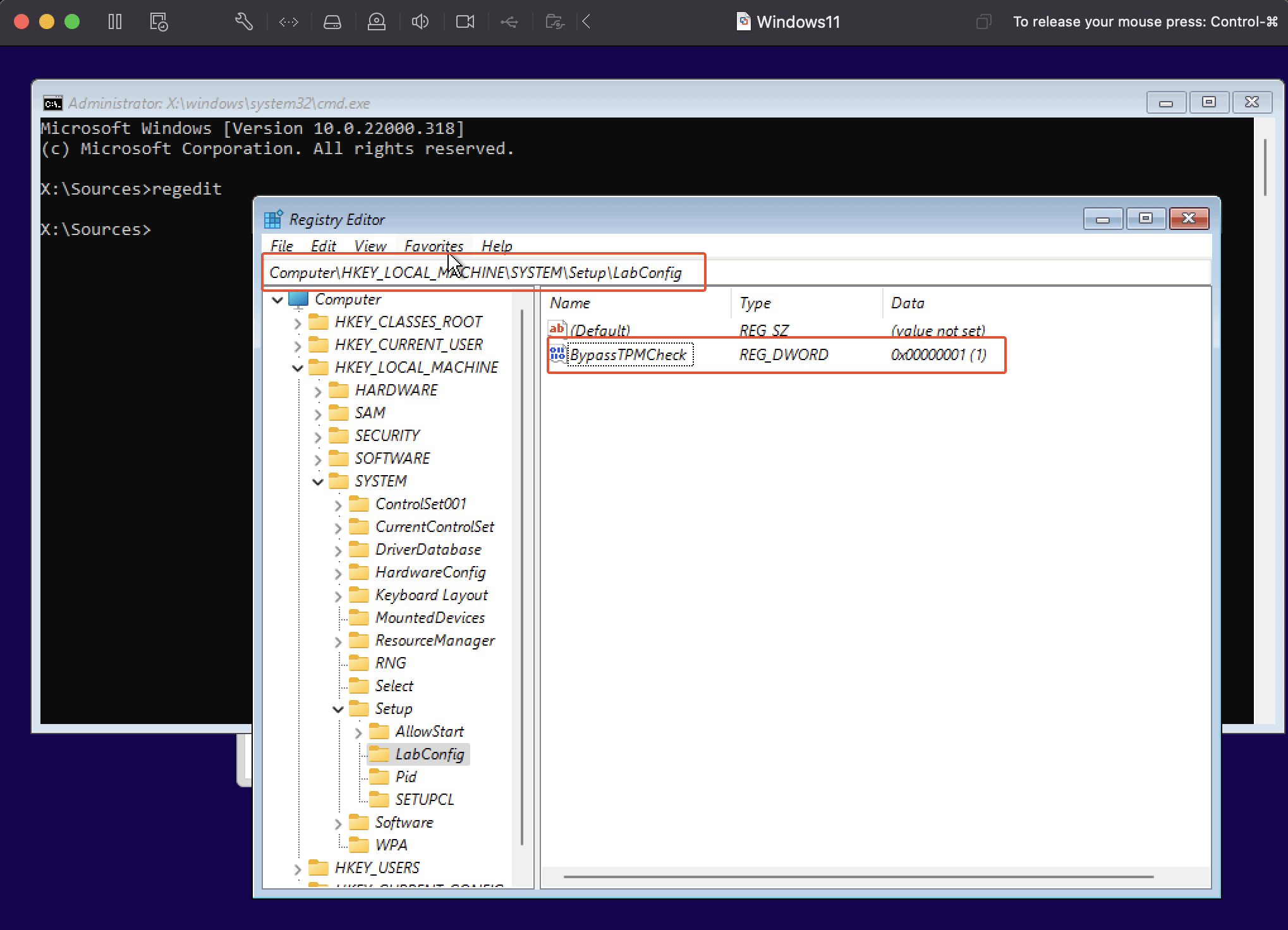

Step 23: TPM Check is Bypassed in the Windows 11 installation Process

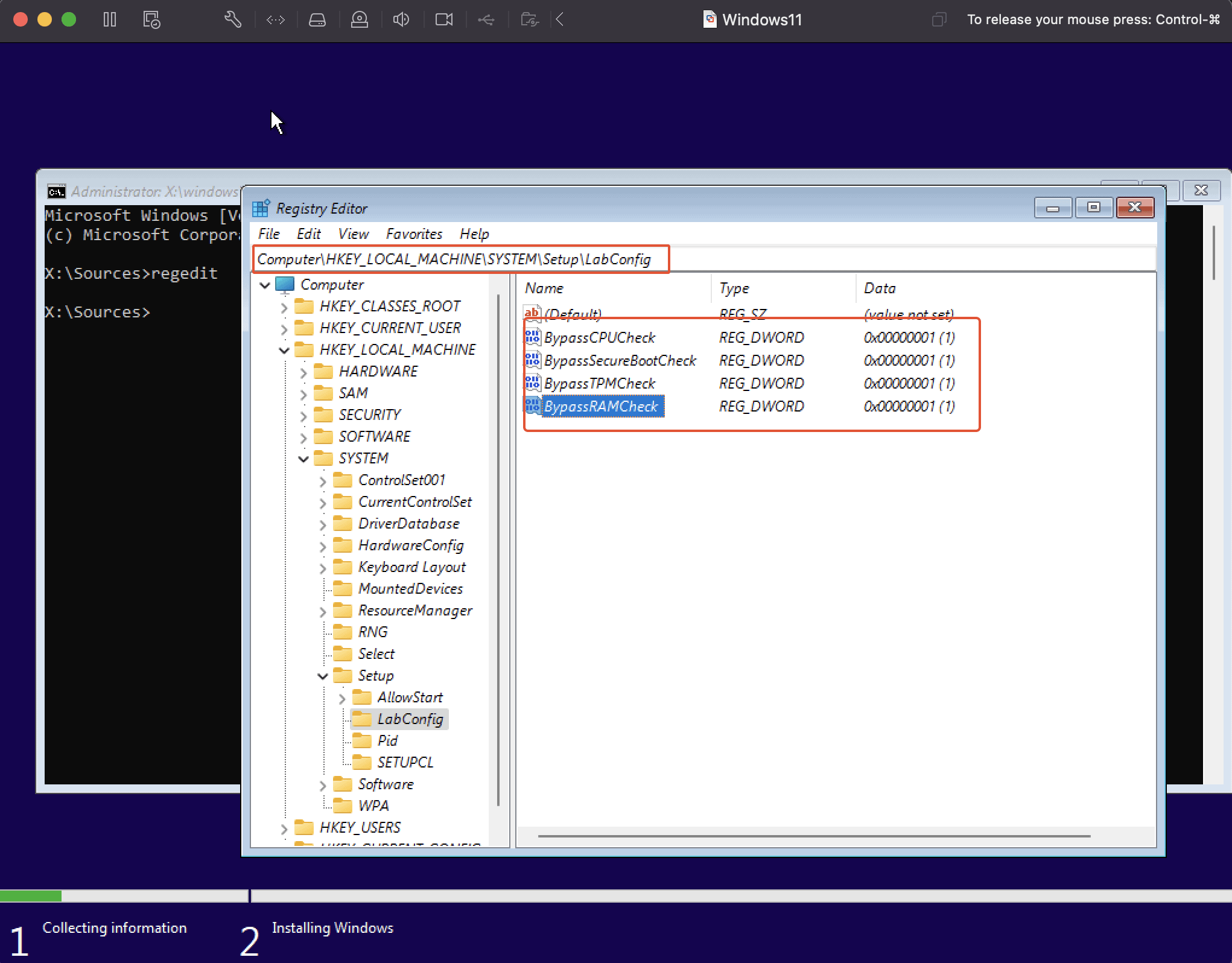

Step 24: Create other 3 DWORD (32-bit) Values under the ‘LabConfig’ key to bypass Secure Boot, CPU, and RAM

To enforce Secure Boot check, create a New DWORD (32-bit) Value ‘BypassSecureBootCheck‘ and set Value data as ‘1To enforce CPU check, create a New DWORD (32-bit) Value ‘BypassCPUCheck‘ and set Value data as ‘1To enforce RAM check, create a New DWORD (32-bit) Value ‘BypassRAMCheck‘ and set Value data as ‘1

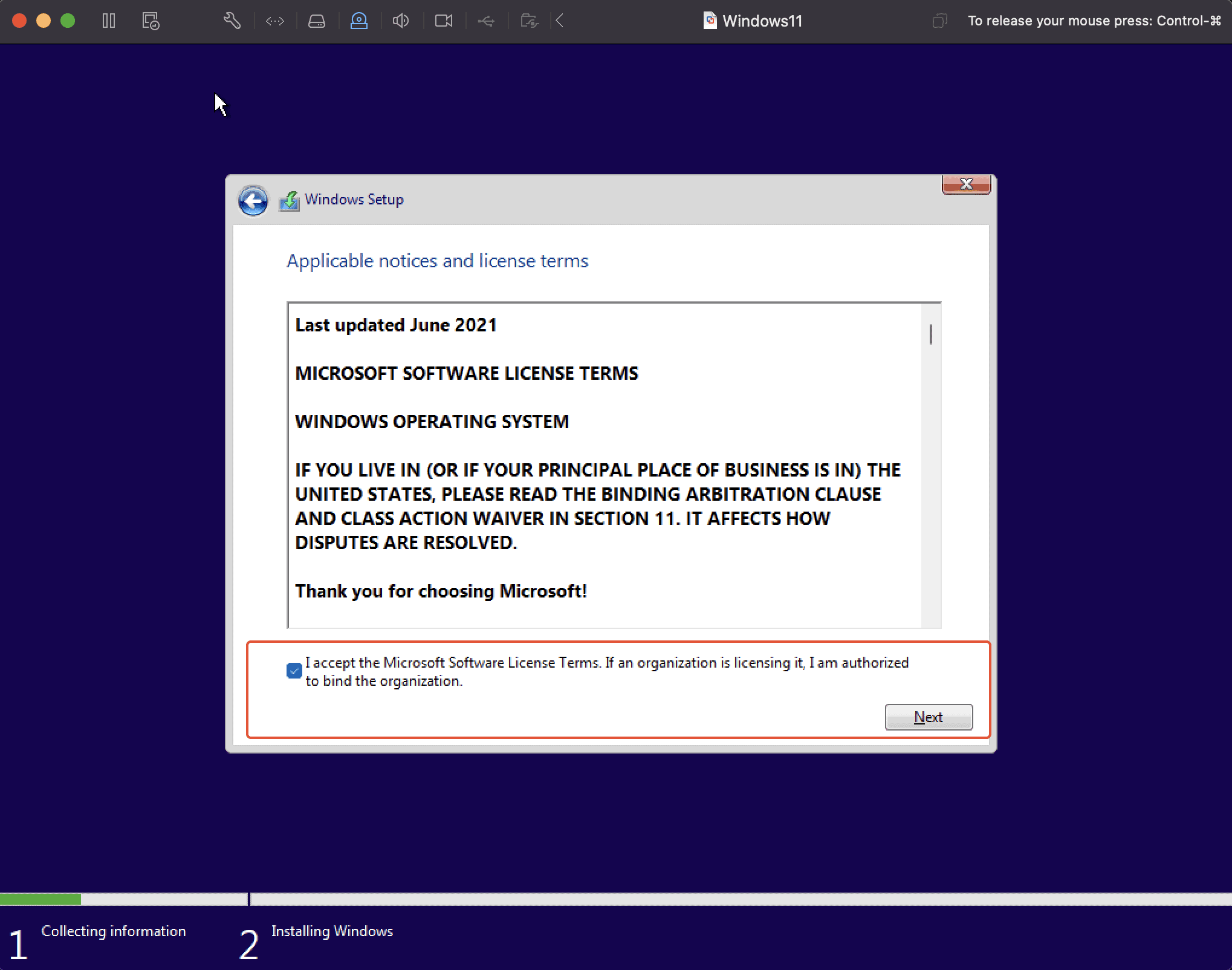

Step 25: Continue the Installation of Windows 11 on VMWare Fusion

Now we can continue to install Windows 11 without any roadblocks. Accept the Licence Agreement and click on ‘Next‘.

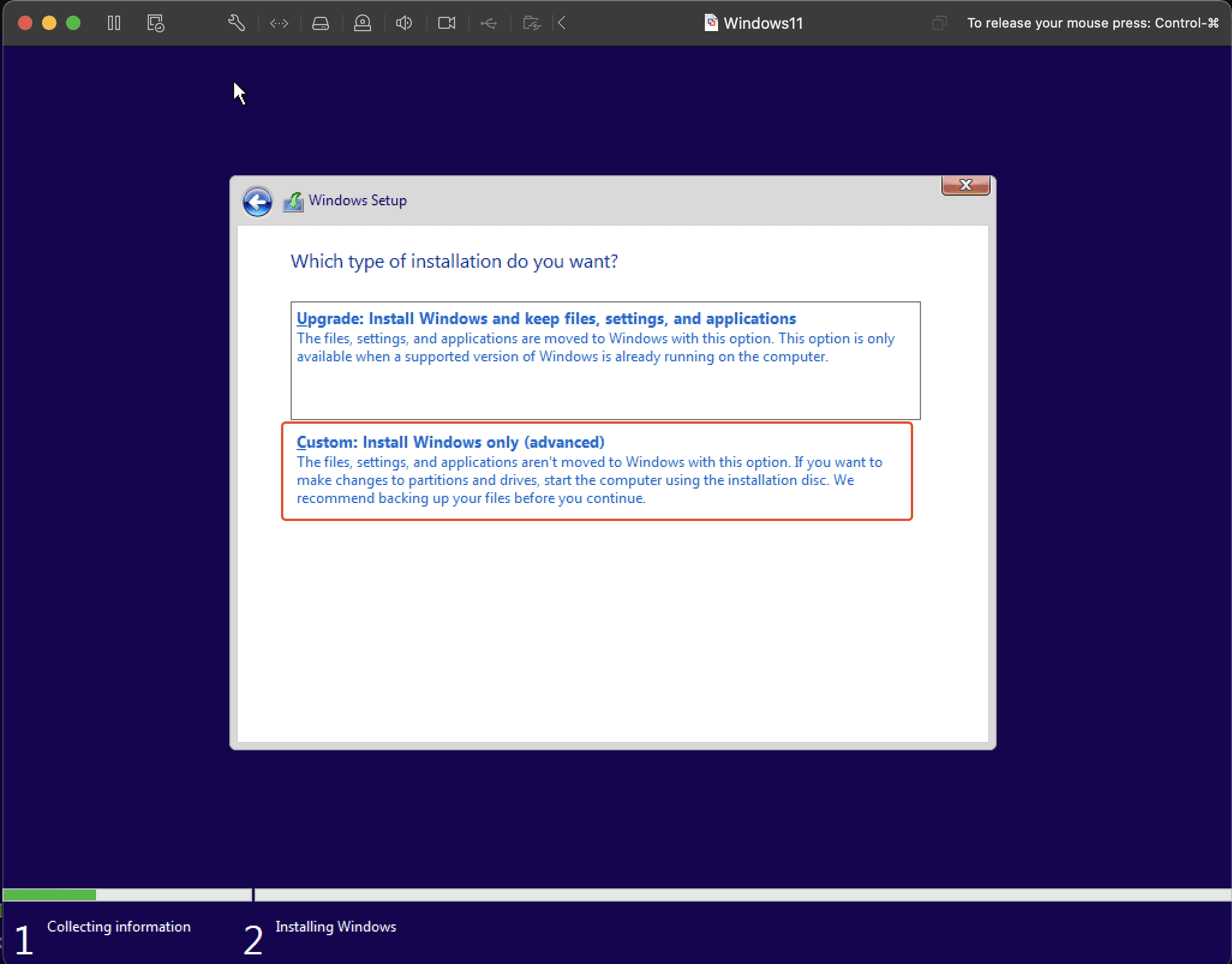

Step 26: Choose the Type of Installation you Want

Click on ‘Custom: Install Windows only (advanced)‘ to make changes in the Drive Partitions. It is up to you how you want to install Windows 11.

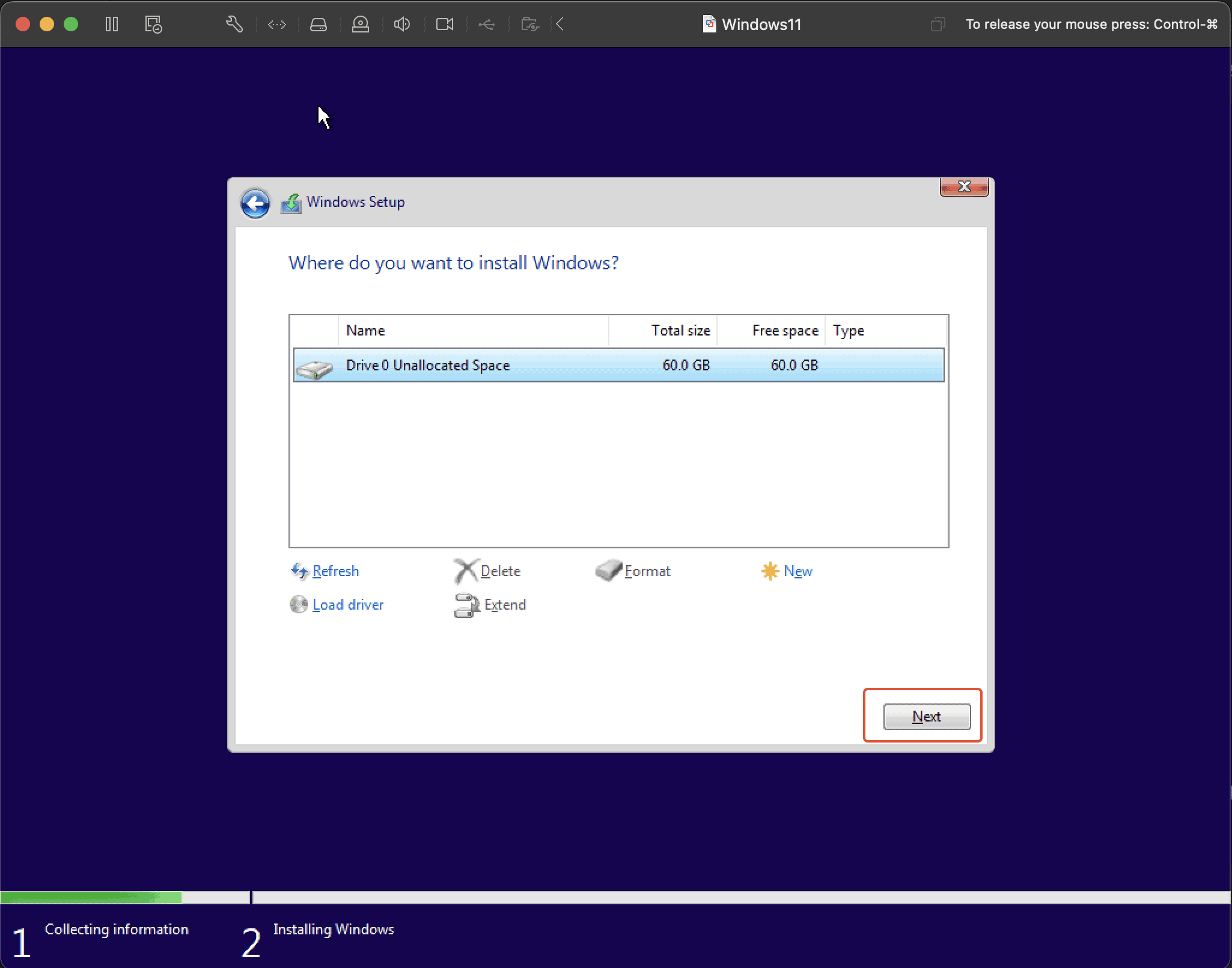

Step 27: Partition the Disk

Selecting complete 60 GB for OS drive and click on ‘Next‘. Based on requirement you can change the Drive Partitions.

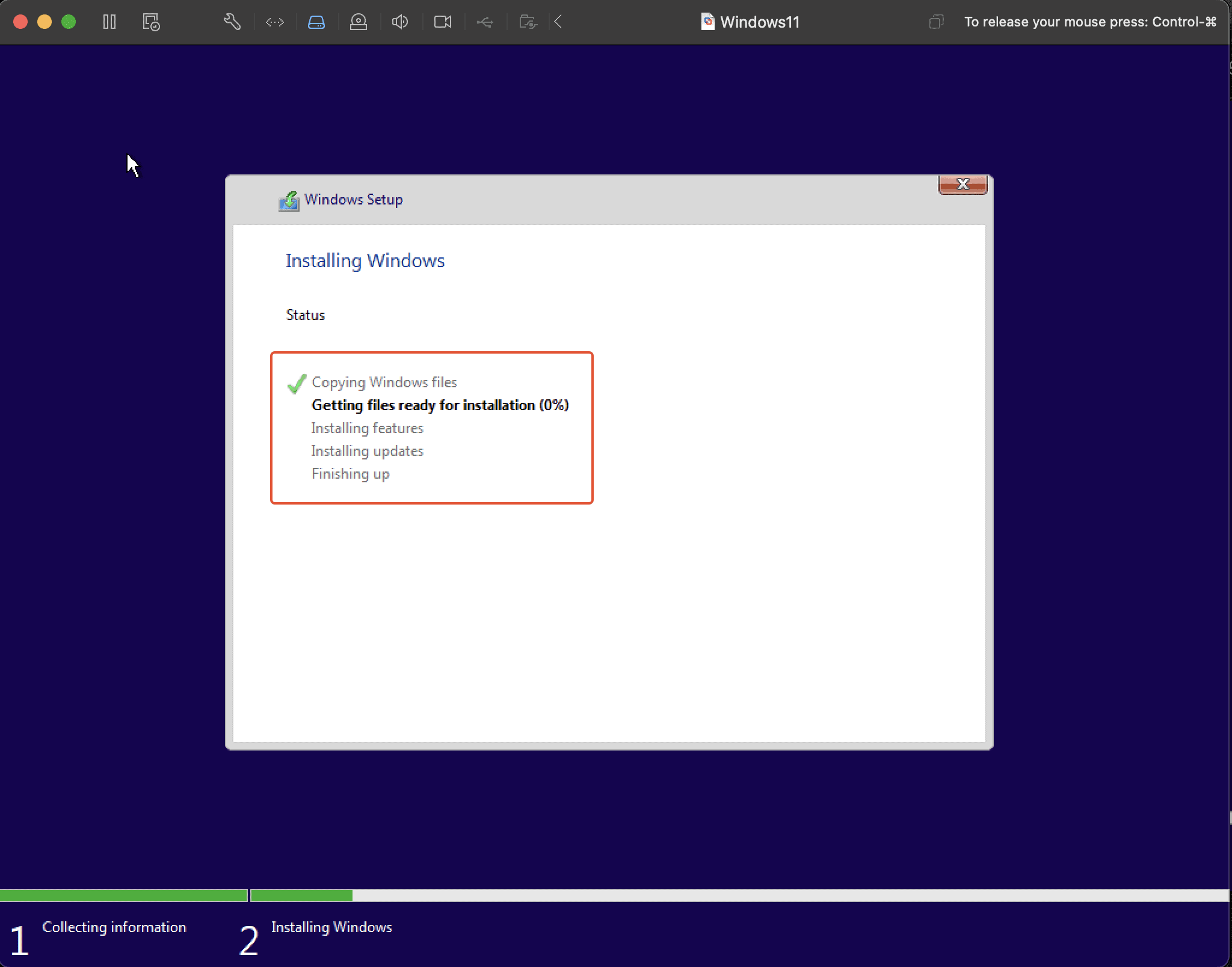

Step 28: Installation of Windows 11 begins and in Progress

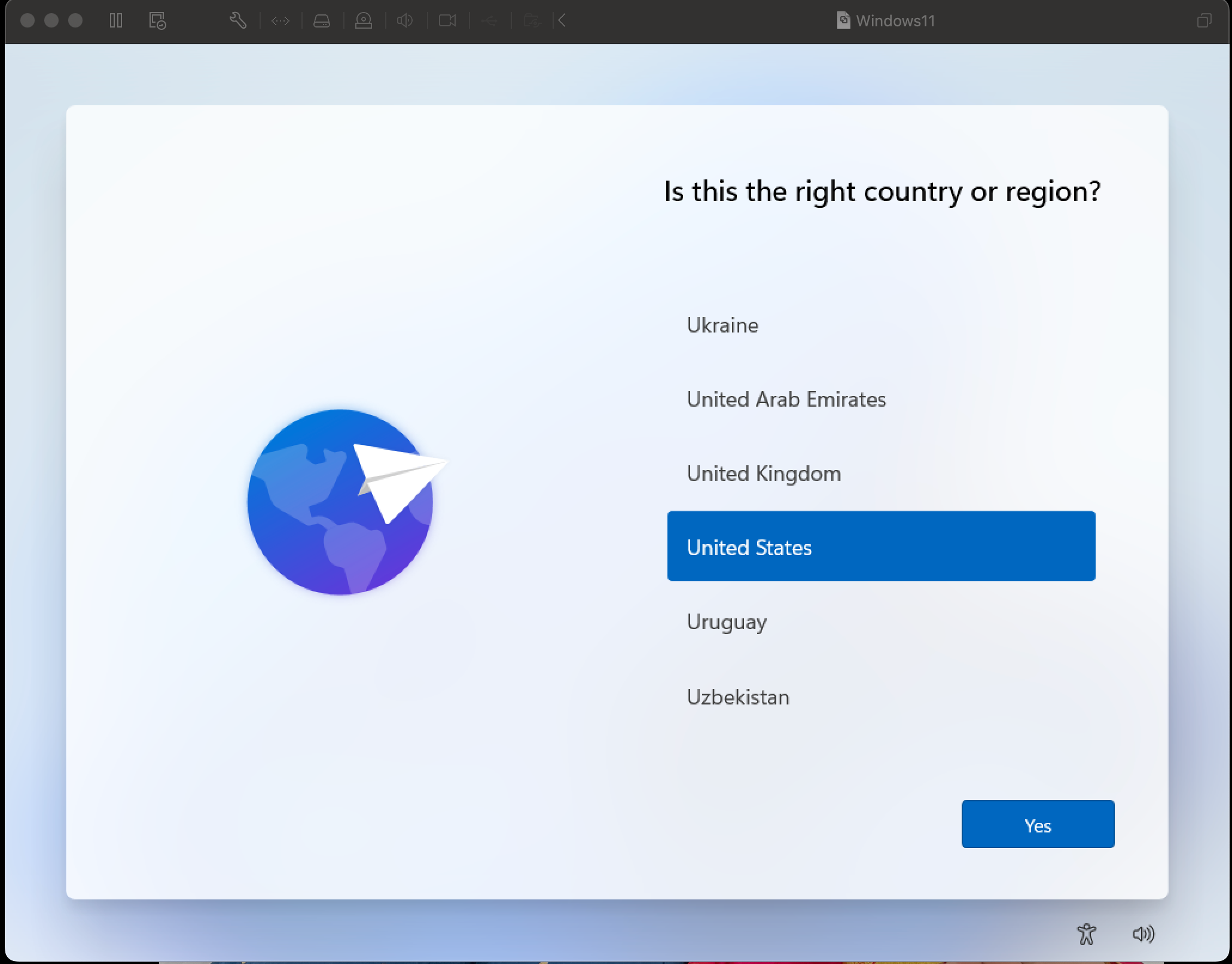

Step 29: Set up a Microsoft Account or a Local Account

After Windows 11 Installation, configure with profile with Microsoft account / Local account.

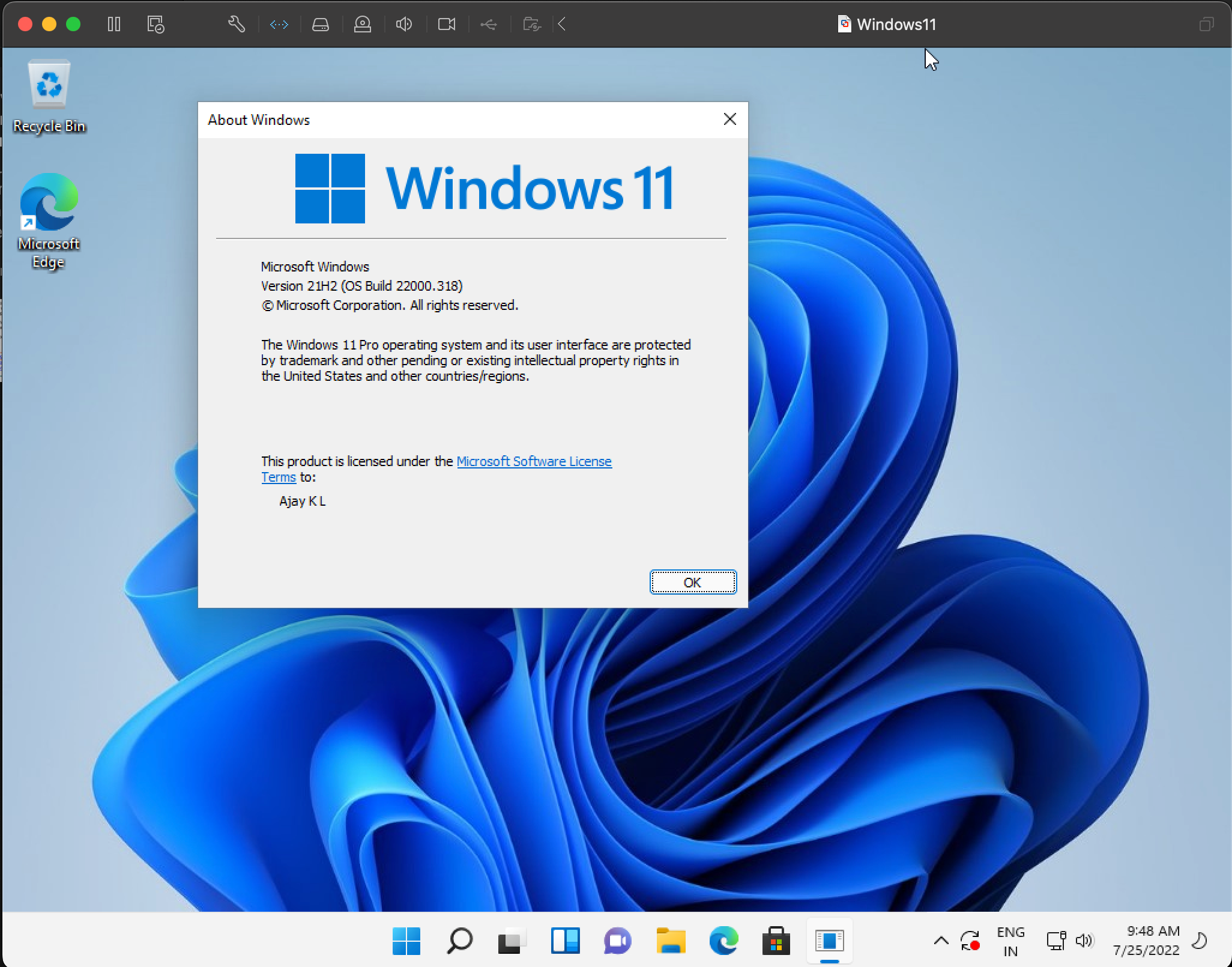

Step 30: Installation of Windows 11 is Completed Successfully on Mac using VMWare Fusion

We hope this post will help you know how to run Windows 11 on MAC using VMWare Fusion. Please share this post if you find this interesting. Visit our social media page on FacebookLinkedInTwitterTelegramTumblrMedium & Instagram, and subscribe to receive updates like this.
